Operating Instructions Chapter 7
Flexi Classic Gateways
8011834/YT28/2016-03-15 © SICK AG • Industrial Safety Systems • Germany • All rights reserved
61
Subject to change without notice
Modbus/TCP Ethernet Gateway
Select the desired data. For the exact description of the data sets please refer to
section 7.8.
I
n the standard setting, all parameters are sent to the higher level PLC when Data set 6 is
active. If only specific parameters are to be sent:
Select Return Only Enabled Data and click the desired parameters in the list.
If Return Only Enabled Data is activated, the length of Data set 6 is variable. This must
be taken into account when addressing the memory area in the PLC.
In order to use these settings temporarily do not check Save in Flash and click Submit.
In order to use these settings permanently, check Save in Flash and click Submit. The
configuration is then saved in the non-volatile memory of the UE410-EN3 and is still
available after the gateway has been restarted.

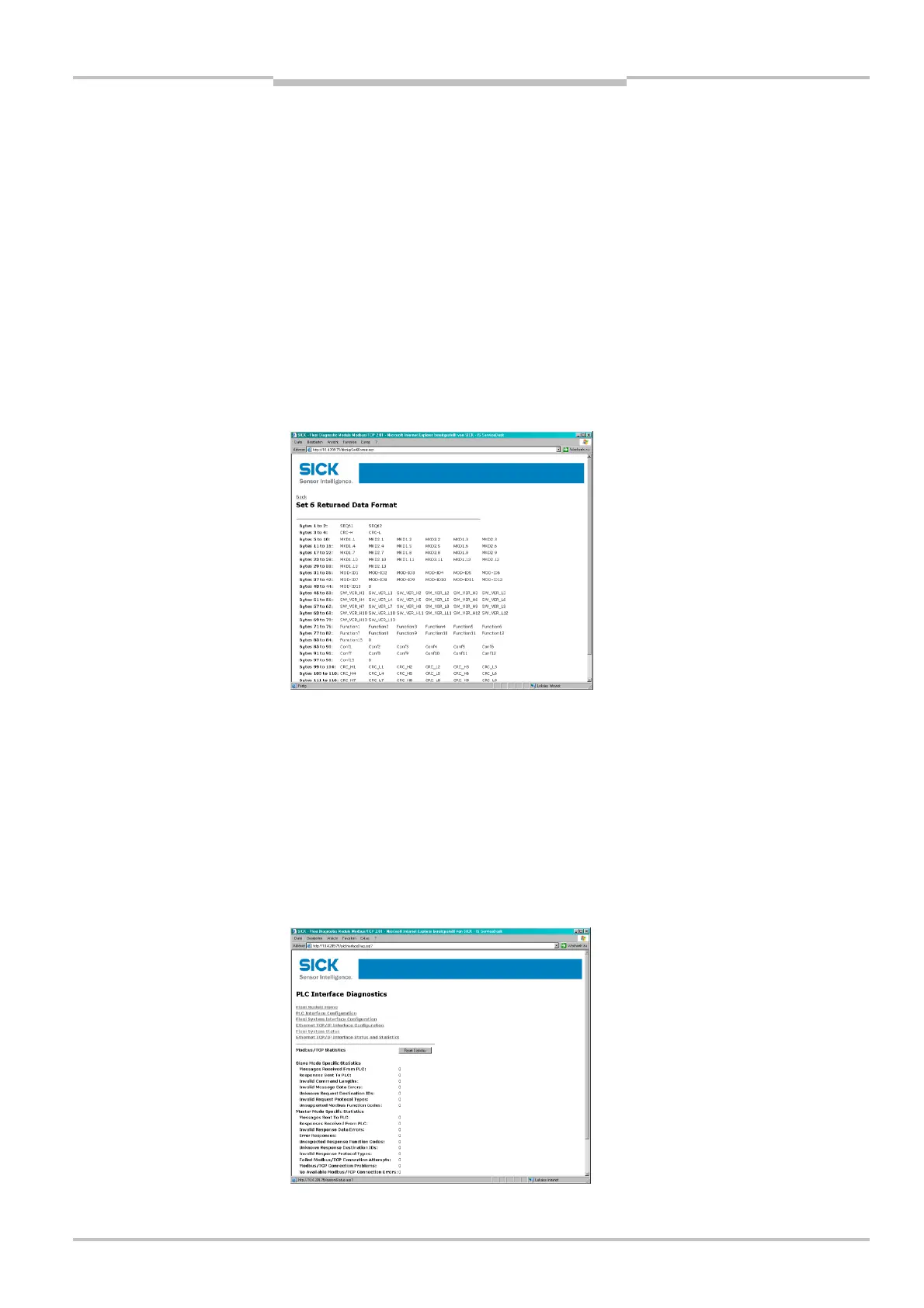

The current configuration of Data set 6 can be displayed by clicking Display Set 6 Data
Format. The following web page is displayed:
Return to the previous page by using the browser’s Back button.
7.5 Status of the interface to the PLC
The UE410-EN3 has its own page that makes statistical data and diagnostics data of the
interface available to the PLC. On this page all the messages and responses from the PLC
and UE410-EN3 are counted and errors including error messages for diagnostic purposes
are displayed. The page is updated automatically every 10 seconds.
Click PLC Interface Diagnostics. The following web page is displayed:
Note
