Modbus/TCP Ethernet Gateway

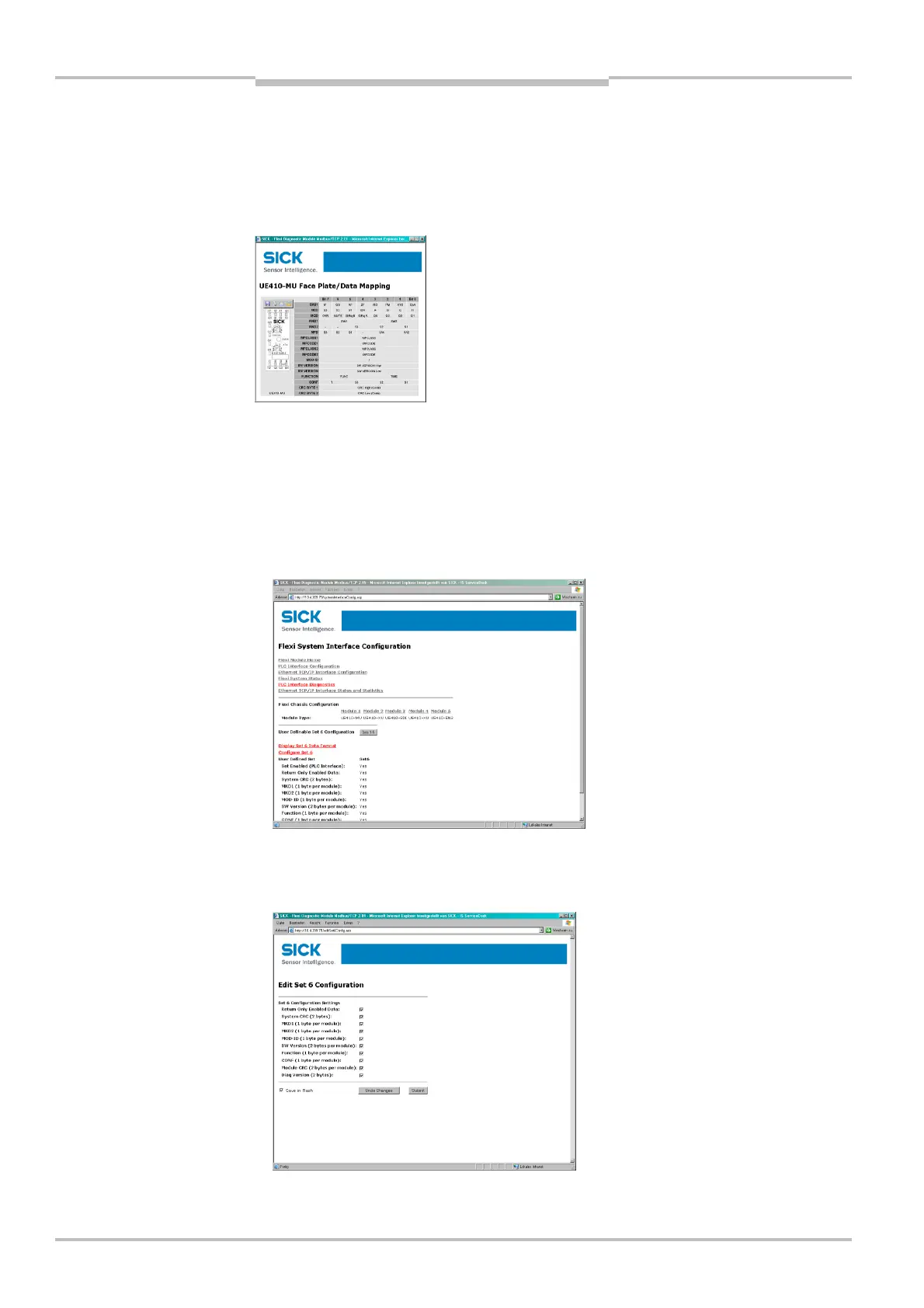

The installed Flexi Classic modules are recognised automatically and listed in the Flexi
Chassis Configuration field. Modules of the next Flexi Classic generation that are not yet
recognised by the UE410-EN3 are listed as “Unknown Module”. The corresponding front
and the data structure of the module can be displayed by clicking a module. In the
example, a click on Module 1 displays a new window with the corresponding information.
The window can subsequently be closed again.
After resetting the UE410-EN3 back to the factory settings, all modules are displayed as
“Unknown Module” until a hardware reset of the entire Flexi Classic system has been
carried out (see section 7.6).
In order to use Data set 6, click Set 6. The following web page is displayed and shows
the current compilation of Data set 6:
Click Configure Set 6, to compile the user defined data record. The following web page
is displayed:
