SICK Flexi Classic User Manual

Operating Instructions Chapter 4
Flexi Classic Gateways
8011834/YT28/2016-03-15 © SICK AG • Industrial Safety Systems • Germany • All rights reserved 27
Subject to change without notice
PROFIBUS DP Gateway
4 PROFIBUS DP Gateway
The following Flexi Classic gateways can be used for PROFIBUS DP:
• UE410-Pro3, UE410-Pro4
4.1 Interfaces and operation
4.1.1 Controls and status indicators
Display Meaning
PWR (green) Supply voltage present
BF (red)
No bus connection, fieldbus cable break or master is not (or no
longer) writing to the bus
DIA (red) No function (not used)
Switch/button Function
× 10
Address switch 1
10-position rotary switch for setting the module address
(tens)
× 1
Address switch 2
10-position rotary switch for setting the module address
(units)
• The occurrence of random or systematic errors in the gateway or in its operation does
not result in the degradation of the safety functions on the Flexi Classic system.
• With the operating voltage switched on, no gateways are allowed to be disconnected
from the Flexi Classic system or added by plugging in.
• The PROFIBUS master cannot overwrite the address set.
• A modified address setting only becomes effective after switching off and switching on
the Flexi Classic system.

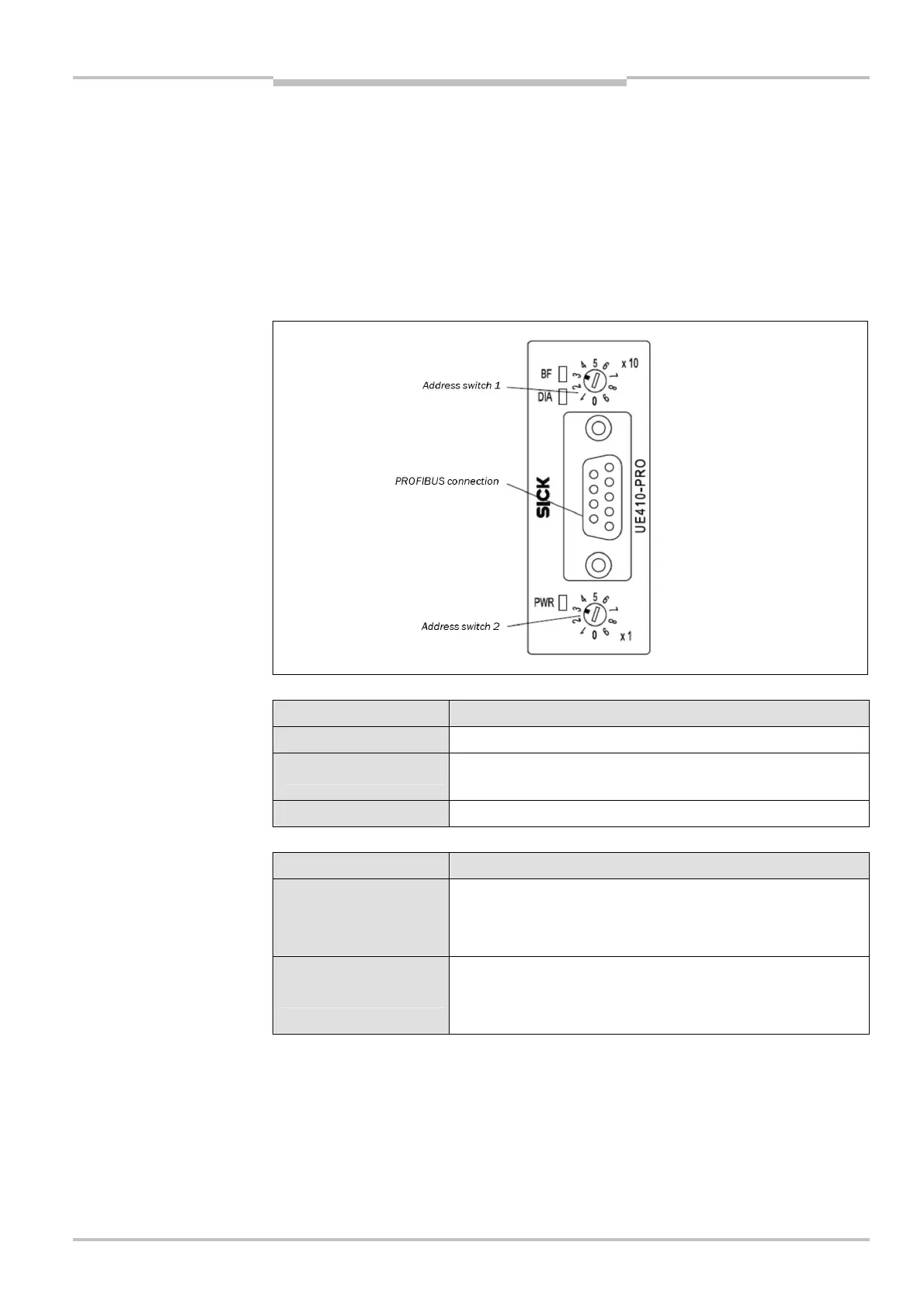

Fig.
1
:
Controls and statu
s
indicators UE410-PRO
Tab.
28
:
Indication LED
UE410-PRO
Tab.
29
:
Address switch
UE410-PRO
Notes
