Modbus/TCP Ethernet Gateway
7 Modbus/TCP Ethernet Gateway
T
he following Flexi Classic gateway can be used for Modbus/TCP: UE410-EN3
7.1 Interfaces and operation
The UE410-EN is equipped with four digital control outputs X1–X4.
The UE410-EN is equipped with an integrated 3-port switch for connection with the Ether-
net network. Two RJ45 sockets are available for the connection. The switch functionality
allows the UE410-EN to be used for connection to another Ethernet component (e.g. con-
nection to a notebook) without having to interrupt the Ethernet connection to the network.

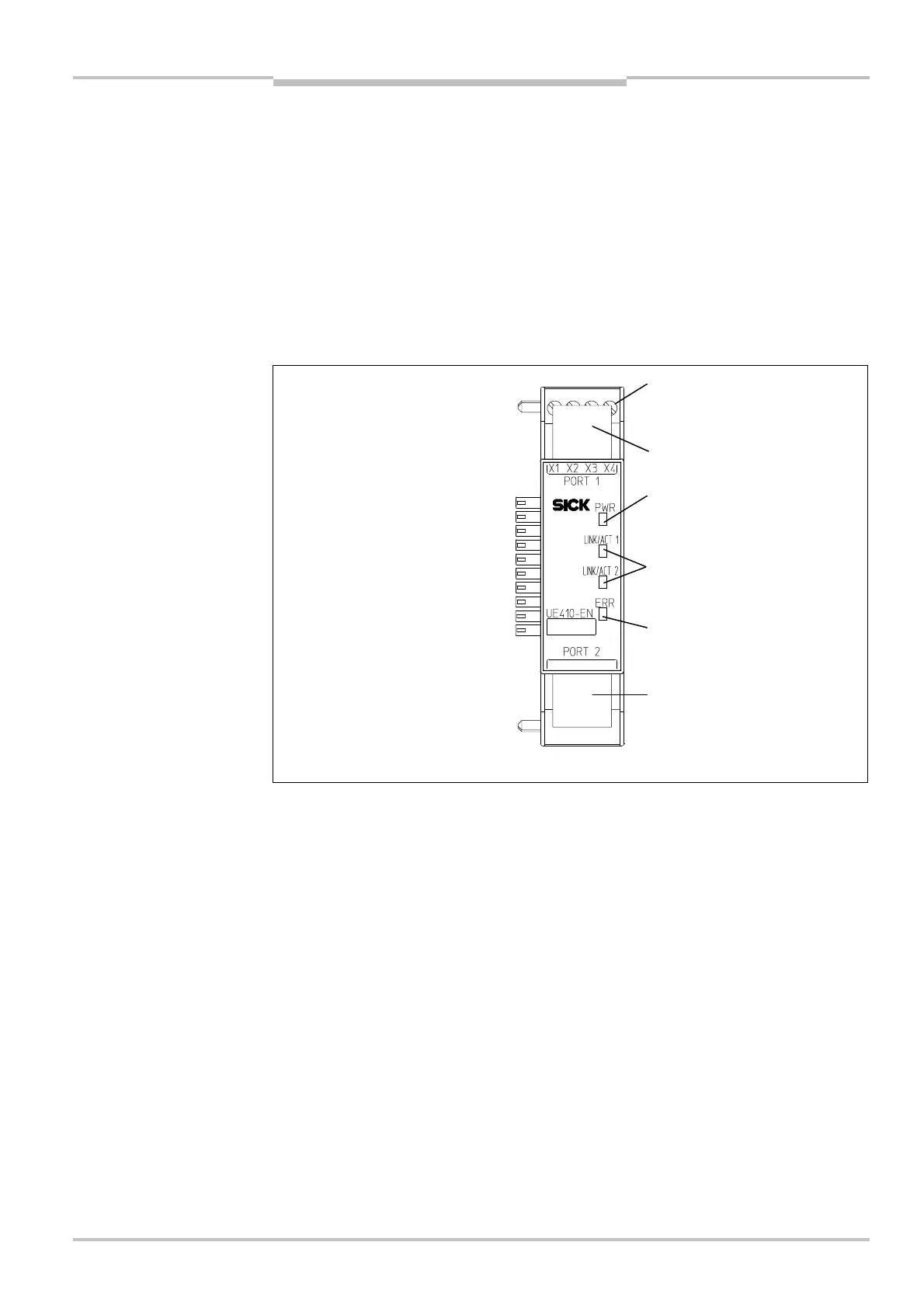

Fig.
17
:
Interfaces and
display elements of the
UE410-EN
Terminals of digital control
outputs X1–X4
RJ45 Ethernet socket
RJ45 Ethernet socket
LED power supply (green)
LED network activity for
Ethernet port 1 or 2 (green)
LED Error (red/green)
