Operating Instructions Chapter 6
Flexi Classic Gateways
8011834/YT28/2016-03-15 © SICK AG • Industrial Safety Systems • Germany • All rights reserved
47
Subject to change without notice
DeviceNet Gateway
6 DeviceNet Gateway
T
he following Flexi Classic gateways can be used for DeviceNet:
 UE410--DEV3, -DEV4,
6.1 Interfaces and operation
6.1.1 Characteristics of the DeviceNet implementation
 group 2 Only Server (fragmented)
 acknowledge Handling
 I/O messaging (polled, COS/CYCLIC) also fragmented
 baud rate can only be adjusted using DIP switch (125 KBit/s, 250 KBit/s, 500 KBit/s)
6.1.2 Controls and status indicators

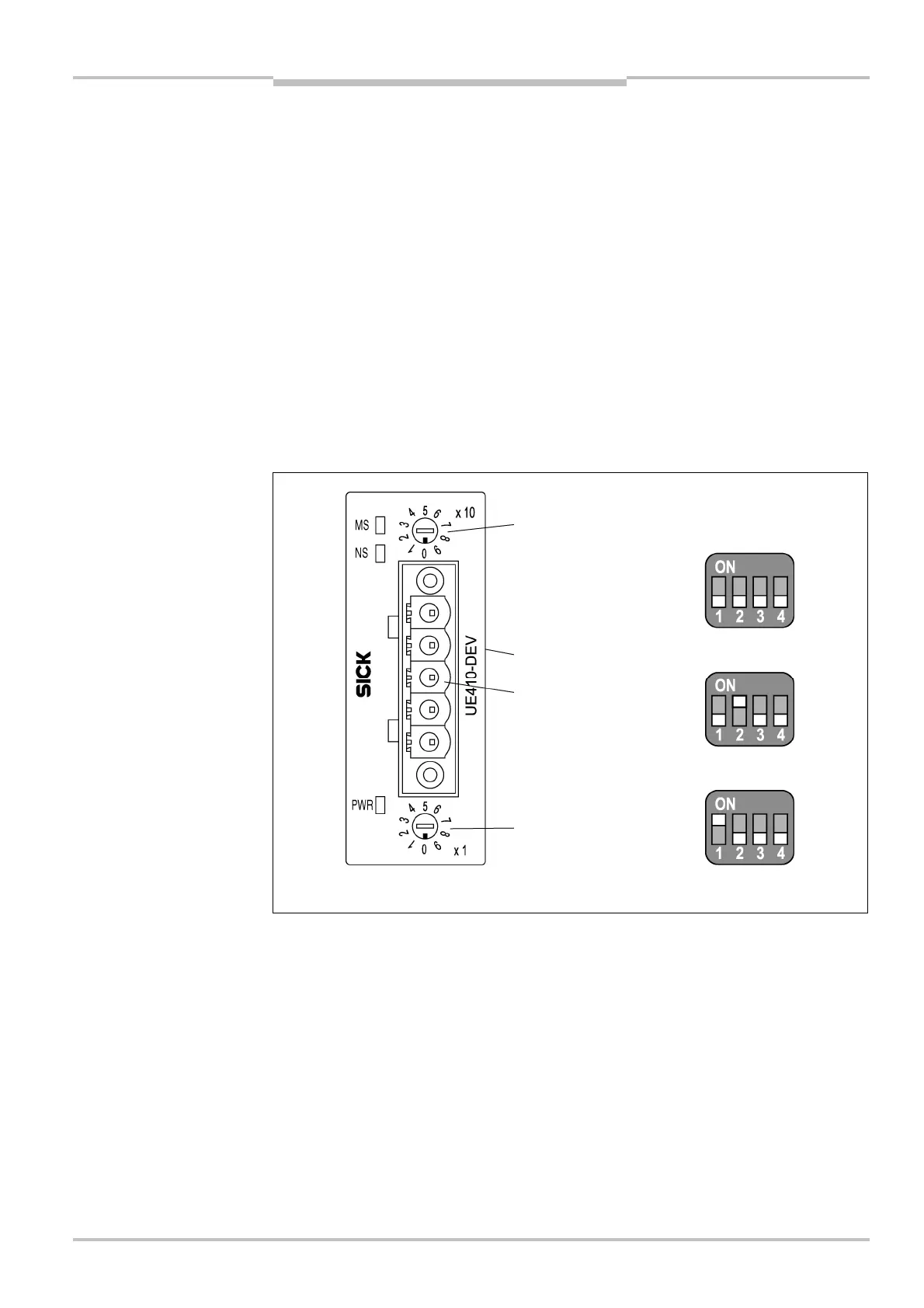

Fig.
14
:
Controls and status
indicators UE410-DEV
Address switch 1
DIP switch
DeviceNet
connection
Address switch 2
DIP switch
Data transmission rates
125
kBit/s
250 kBit/s
500 kBit/s
