PROFINET IO Gateway
10.5 Status of the interfaces
10.5.1 Status of the interface to the PLC
Statistical and diagnostics data of the PLC interface is made available to the user via web
server. On this page messages and responses from the PLC and UE410FEN4 are counted
and errors including error messages for diagnostic purposes are displayed. The page is
updated automatically every 10 seconds.
Open a web browser on a PC in the same network and go to the address of the
UE410FEN.

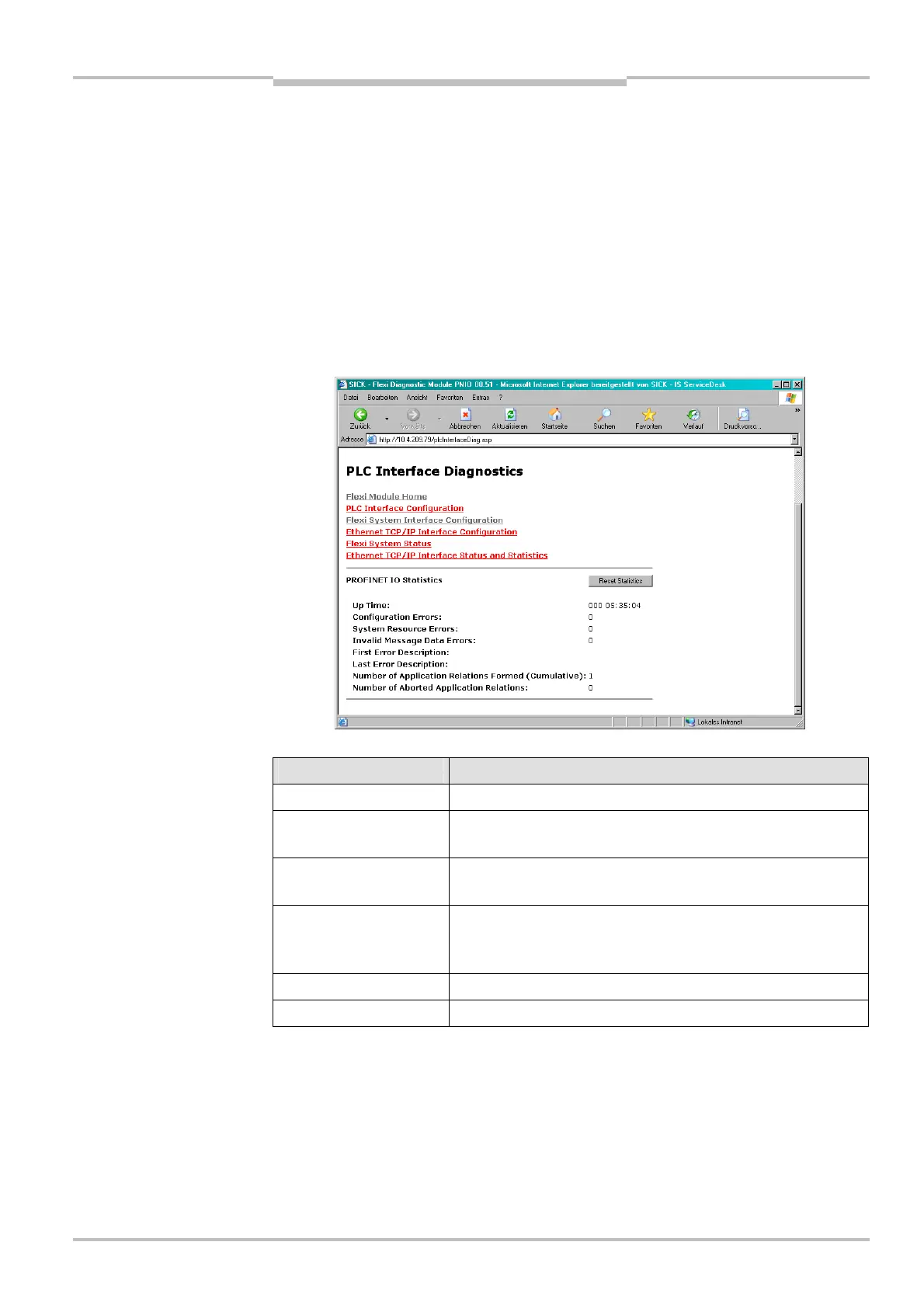

Click on PLC Interface Diagnostics. The following web page is displayed:
Entry Description
Up time Days, hours, minutes and seconds the system has been up
Configuration errors The number of times an agent has attempted setting an
invalid configuration (for example, an illegal device name)
System resource errors Number of errors encountered by system resources
(e.g. flash memory, TCP socket)
Invalid message data
errors
Number of messages received with invalid message data er-
rors. These errors occur when the UE410 receives a message
that cannot be processed due to improper message data.
First error description Error description for the first error detected
Last error description Error description for the last error detected
diagnostic data of the
interface to the PLC
To Next Page
