EtherNet/IP Gateway
To assign a suitable IP address within the network to the UE410-EN, click Configure

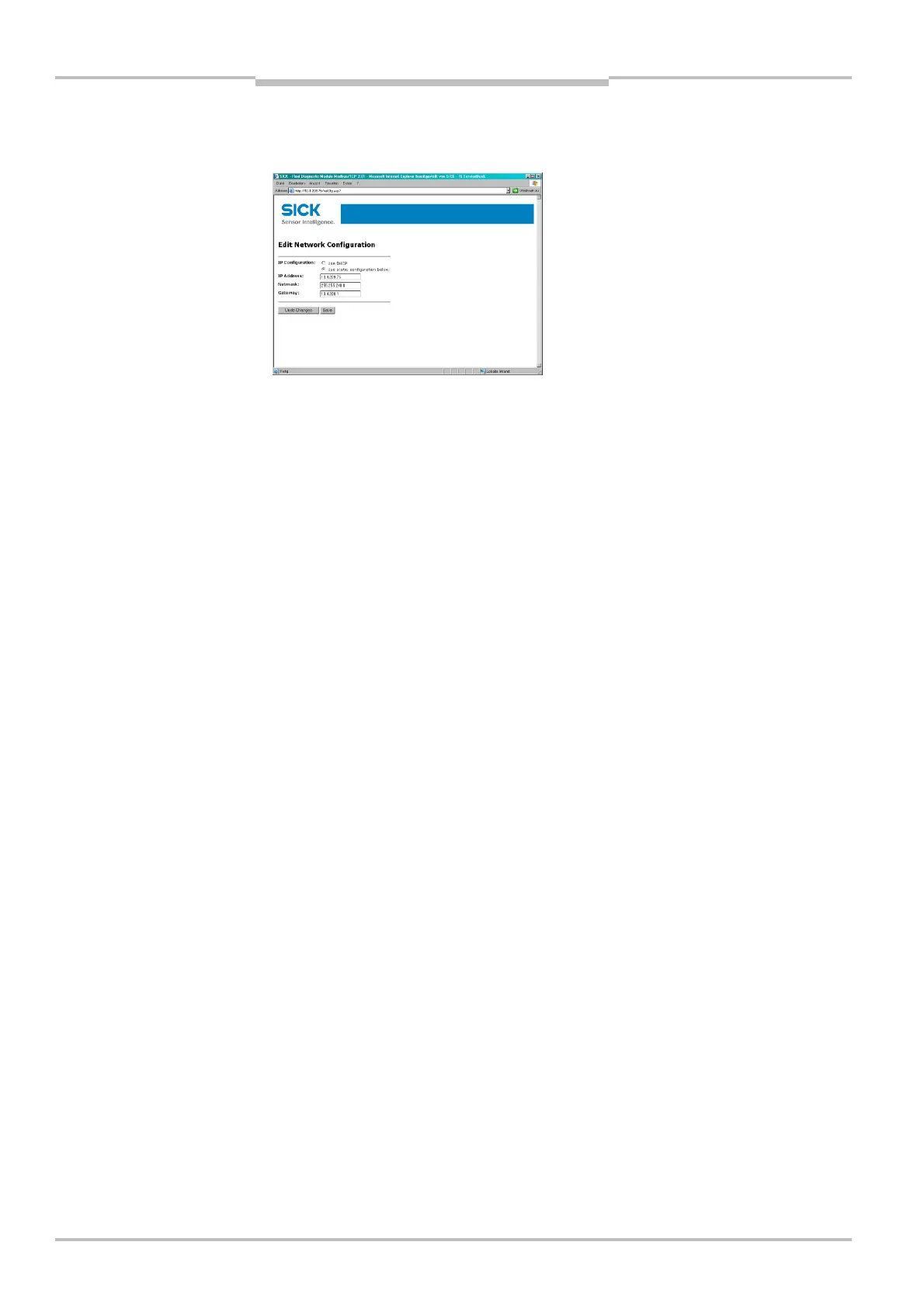

Network. The following web page is displayed:
The UE410-EN network address can be obtained automatically or configured manually.
For automatic assignment of the network address, choose Use DHCP.
A DHCP server must be active in the network so that these functions can be used. A new IP
address will be assigned to the UE410-EN when the DHCP server or the UE410-EN is
restarted. When the UE410-EN is operated in slave mode (see section “Configuration …”
below) and the IP address changes due to a restart, the PLC can no longer communicate
with the UE410-EN. If you use the Use DHCP function in combination with the slave mode
of the UE410-EN, we recommend that you reserve a specific IP address for the UE410-EN
(manual assignment on the basis of the MAC address of the UE410-EN).
In order to set the network address manually, choose Use static configuration below
and enter a valid free IP address, the subnet mask and the IP address of the network
gateway.
Finalise changes by clicking Save.
The new network address is saved in the UE410-EN flash memory, but will only become
effective after the gateway has been restarted. In order to restart the gateway, …
either click the Reboot button on the homepage of the UE410-EN main page
or interrupt the power supply of the Flexi Classic system and switch on again.
Call up the new address of the UE410-EN in order to configure the UE410-EN in the web
browser further.
If a DHCP server is used to assign an IP address, the new address is unknown to the
system administrator. It can be read out in the administration pages of the DHCP server.
Alternatively the software tool Flexi Classic IP-Link can be used. This scans the network for
Flexi Classic modules and registers their IP addresses.
9.3 Device name
Device serial number as well as the device MAC address allow unique identification of the
device. However in some applications it is useful to assign a more significant device name
for better device identification in the field. This is why the UE410-EN supports the configu-
ration of an individual device name.
Click Configure Device Name on the UE410-EN homepage.
Enter the device name (maximum length 256 characters).
Click Save.
The device name will now appear next to “Device Name” on the UE410-EN homepage.
