SICK Flexi Classic User Manual

Chapter 9 Operating Instructions
Flexi Classic Gateways
92 © SICK AG • Industrial Safety Systems • Germany • All rights reserved 8011834/YT28/2016-03-15
Subject to change without notice
EtherNet/IP Gateway
9 EtherNet/IP Gateway
T
he following Flexi Classic gateway can be used for EtherNet/IP: UE410-EN1
The UE410-EN1 will support only EtherNet/IP explicit messaging. Class 1 messaging is not
supported. The EDS file is available on www.sick.com.
9.1 Interfaces and operation
The UE410-EN is equipped with four digital control outputs X1–X4.
The UE410-EN is equipped with an integrated 3-port switch for connection with the Ether-
net network. Two RJ45 sockets are available for the connection. The switch functionality
allows the UE410-EN to be used for connection to another Ethernet component (e.g. con-
nection to a notebook) without having to interrupt the Ethernet connection to the network.

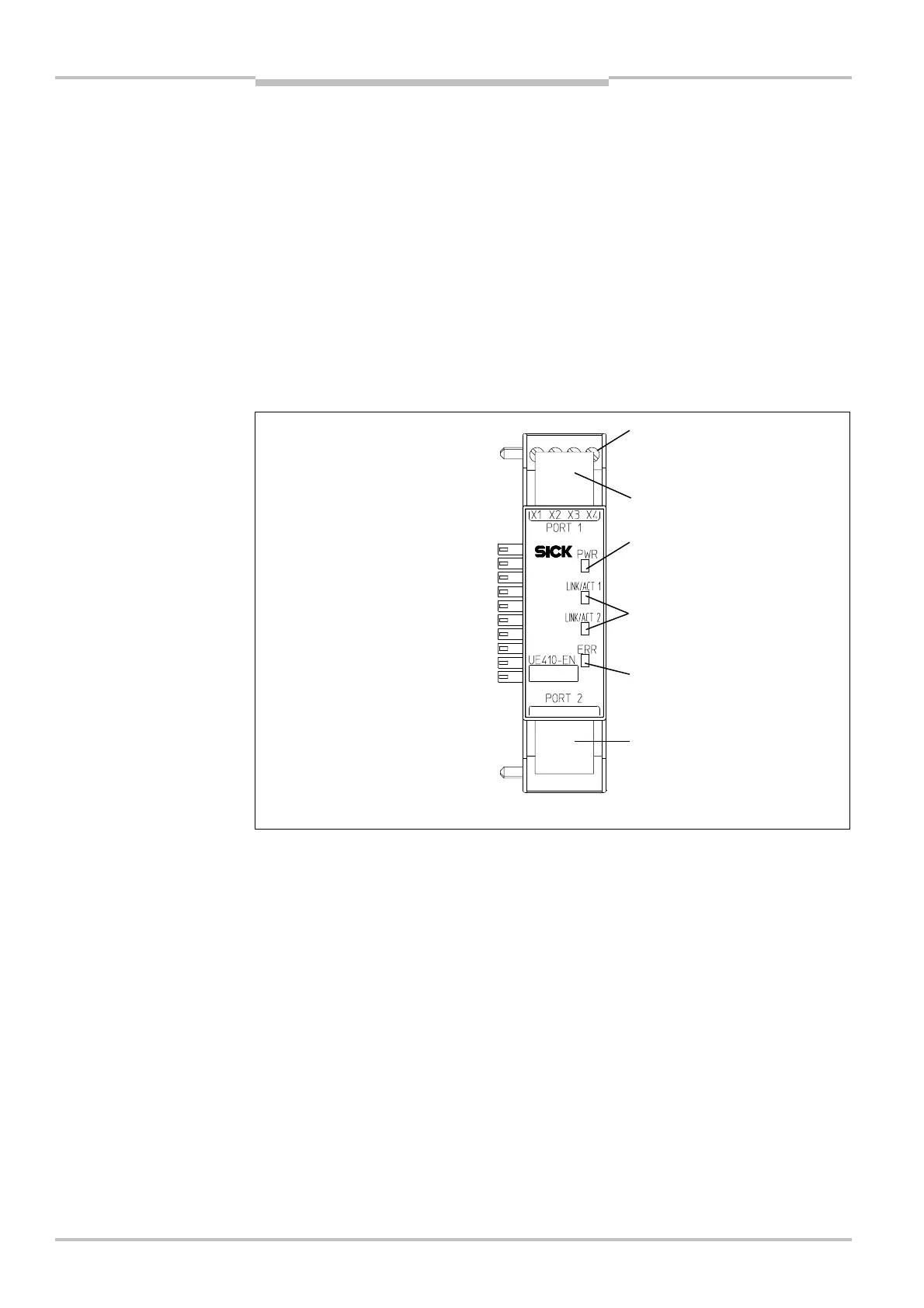

Fig.
19
:
Interfaces and
display elements of the
UE410-EN
Terminals of digital control
outputs X1–X4
RJ45
Ethernet socket
RJ45 Ethernet socket
LED power supply (green)
LED network activity for
Ethernet port 1 or 2 (green)
LED Error (red/green)
