SICK Flexi Classic - Dimensional drawing

Operating Instructions Chapter 11
Flexi Classic Gateways
8011834/YT28/2016-03-15 © SICK AG • Industrial Safety Systems • Germany • All rights reserved
151
Subject to change without notice
Technical specifications
Electrical safety See UE410-MU
Maximum tightening torque 0.5 to 0.6 Nm
For UL and CSA applications
Connection cross-sections
Max. tightening torque
AWG 18-16 (use only Cu cables)
5.25 lbs-in
Flex-Bus connection (internal bus)
Number of poles
Number
Gateways
10
1
1 plug (left)
Mounting rail Mounting rail acc. to EN 50022-35

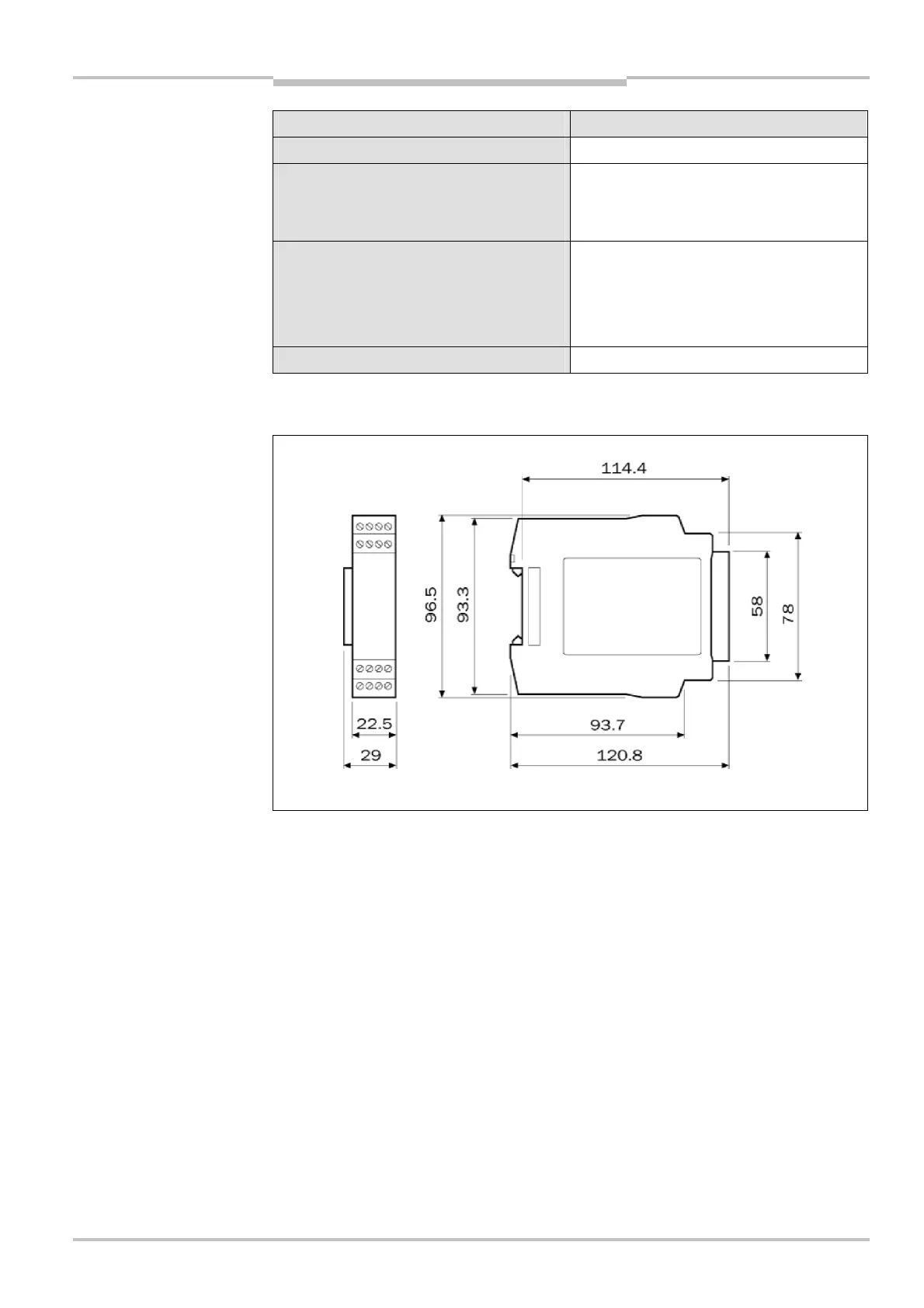

11.5 Dimensional drawing
Fig.
23
:
Dimensional drawing
Flexi Classic gateways
