EtherNet/IP Gateway
If Return Only Enabled Data is activated, the length of Data set 6 is variable. This must be
taken into account when addressing the memory area in the PLC.
In order to use these settings temporarily do not check Save in Flash and click Submit.
In order to use these settings permanently, check Save in Flash and click Submit. The
configuration is then saved in the non-volatile memory of the UE410-EN and is still
available after the gateway has been restarted.
The current configuration of Data set 6 can be displayed by clicking Display Set 6 Data
F
ormat. The following web page is displayed:
Return to the previous page by using the browser’s Back button.
9.6 Status of the interface to the PLC
The UE410-EN has its own web page that makes statistical data and diagnostics data of
the interface available to the user. On this page messages and responses from the PLC
and UE410-EN1 are counted and errors including error messages for diagnostic purposes
are displayed. The page is updated automatically every 10 seconds.

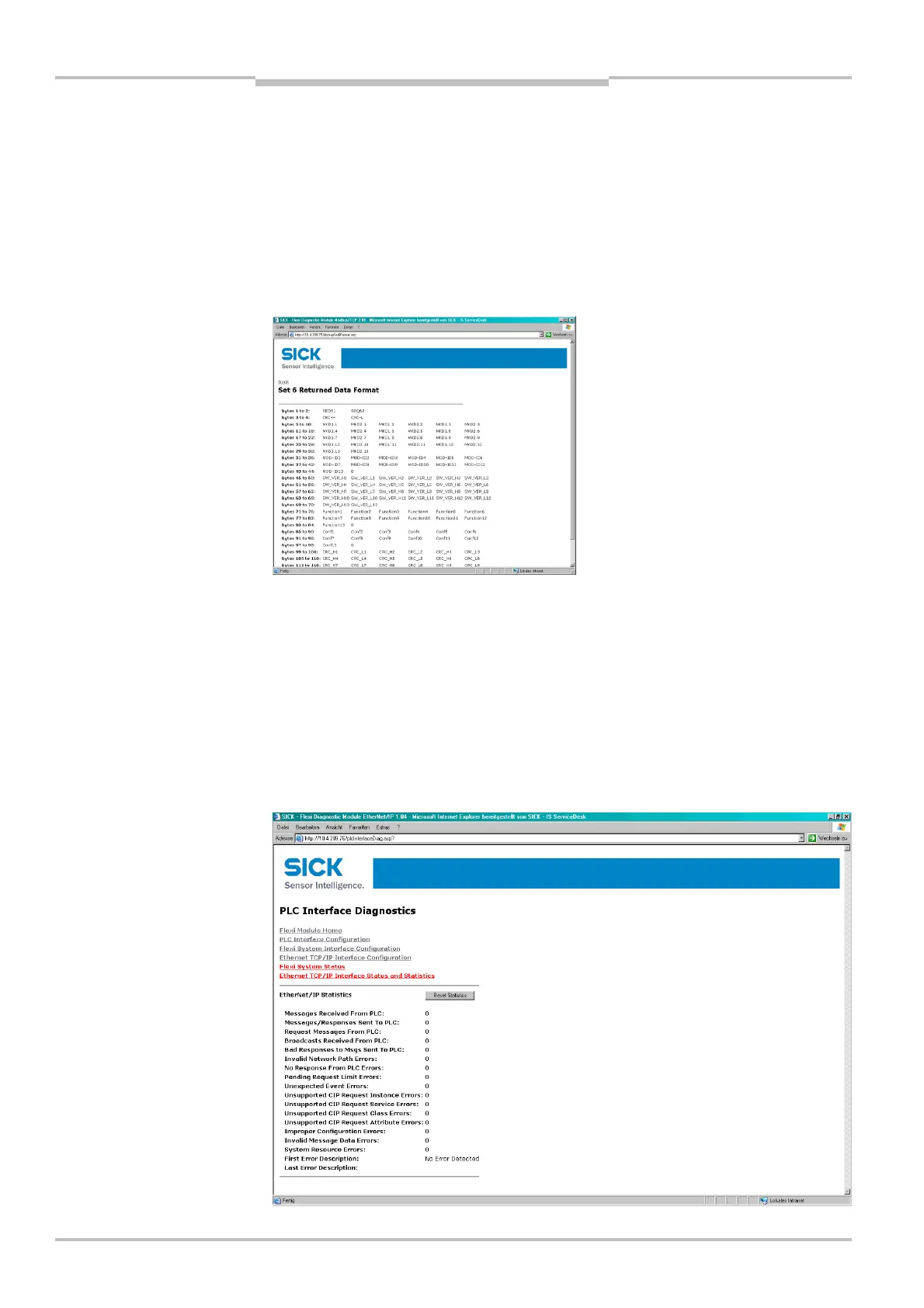

Click PLC Interface Diagnostics. The following web page is displayed:
