EtherNet/IP Gateway

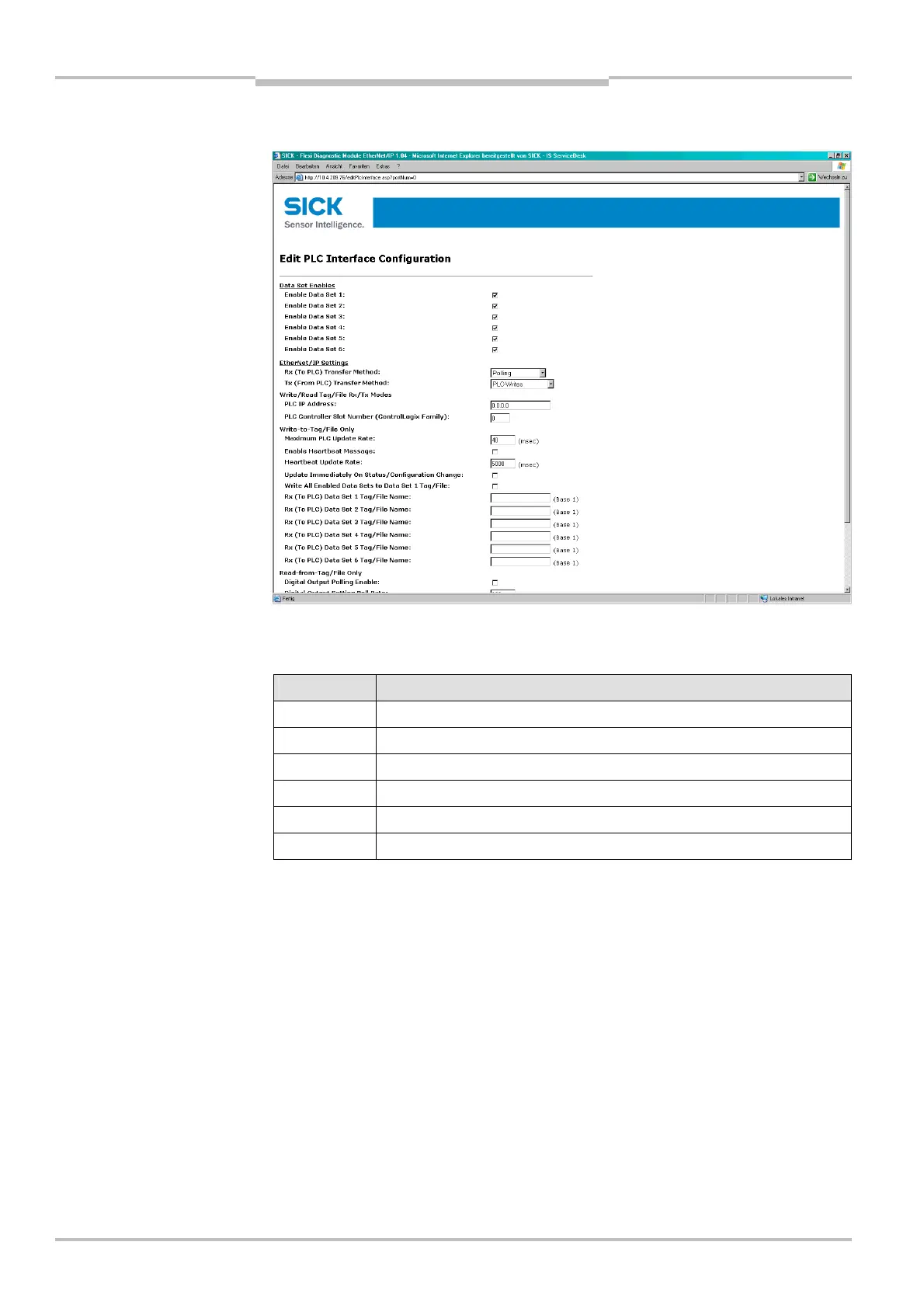

 Click Edit to change the settings. The following web page is displayed:
 Decide, which of the following 6 data sets are to be transferred to the PLC. For the exact
description of the data sets please refer to section “Description of the data sets” below.
Data set Description
1 Module-specific input data
2 Module-specific output data
3 Module-specific data of the UE410-EN gateway
4 General status and configuration data
5 Diagnostics data
6 Configuration data of the Flexi Classic system, user defined compilation
 Select the desired data sets.
 After the data sets have been selected, configure how they should be sent to the PLC.
For this purpose certain parameters that depend on the operating mode have to be set.
These are described below.
Tab.
90
:
Data sets 1
–
6 of
UE410-EN1 in overview
