SICK Flexi Soft User Manual

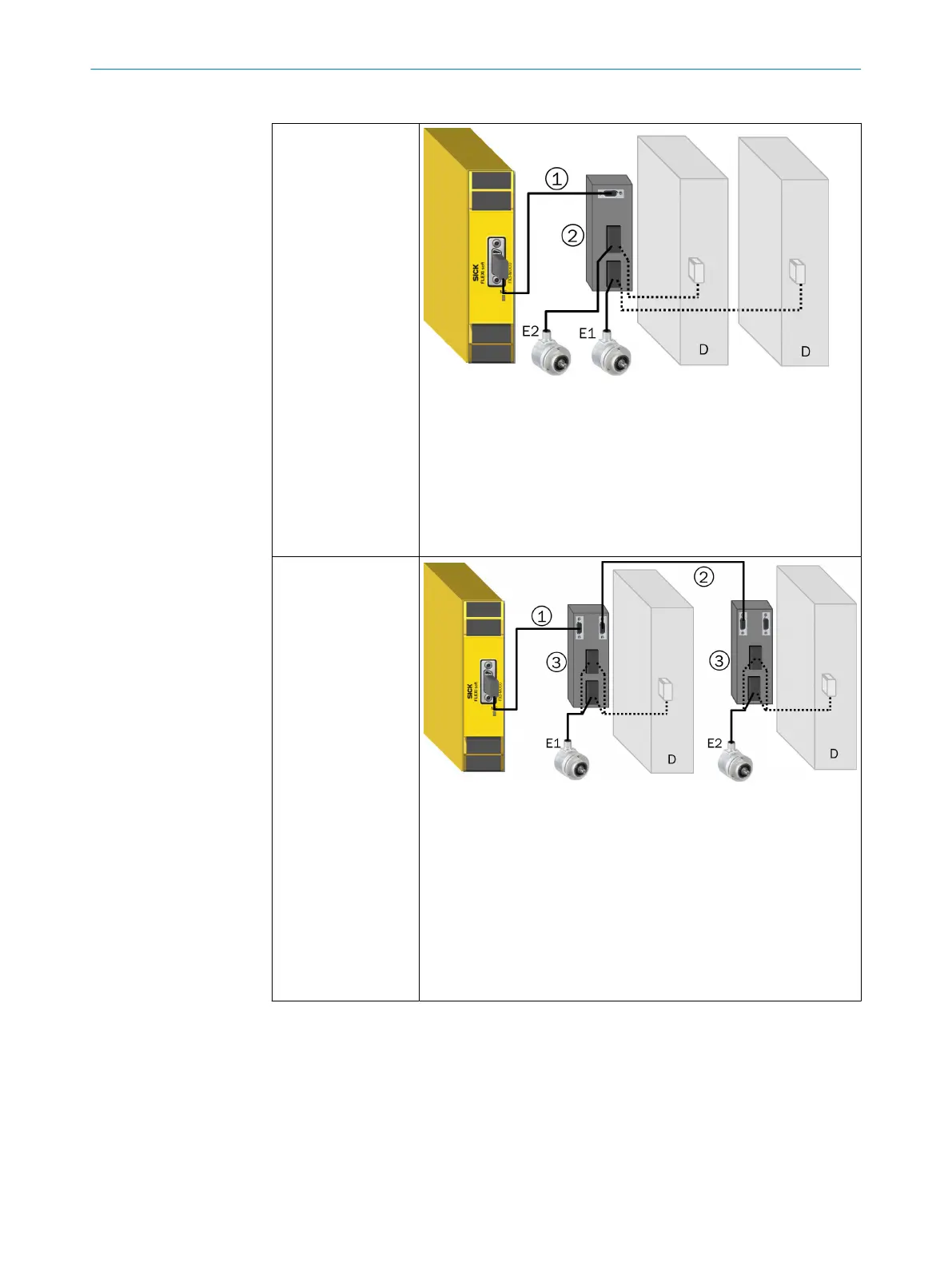

Table 77: Facilities for connecting encoders
Connection to an opti‐
mi
zed dual encoder/
motor feedback con‐
nection box FX3-EBX1
E1 Encoder 1
E2 Encoder 2
D PLC/drive controller
1
Connection cable between the FX3-MOCx and an encoder/
mo
tor feedback connection box (SICK part number 2067798,
2067799, 2077261, or 2077262)
2
Optimized dual encoder/motor feedback connection box
FX3-EBX1 (SICK part number 2079867)
Connection to
twoencoder/motor
feedback connection
boxes FX3-EBX3
E1 Encoder 1
E2 Encoder 2
D PLC/drive control
1
Connection cable between the FX3-MOCx and an encoder/
mo
tor feedback connection box (SICK part number 2067798,
2067799, 2077261, or 2077262)
2
Connection cable for FX3-EBX3 and FX3-EBX4 (SICK part num‐
ber 2078260, 2067800, or 2067801)
3
Encoder/motor feedback connection box FX3-EBX3 (SICK part
number 2068728)
ELECTRICAL INSTALLATION 5
8012478/1IG6/2023-02-24 | SICK O P E R A T I N G I N S T R U C T I O N S | Flexi Soft Modular Safety Controller
93
Subject to change without notice

SICK Flexi Soft Specifications

General

Safety Integrity Level (SIL)	SIL3
Performance Level (PL)	PL e
Programming	Flexi Soft Designer
Power Supply	24 V DC
Safety Protocols	PROFIsafe, CIP Safety
Protection Class	IP20
Number of I/Os	Configurable
Operating Voltage	24 V DC
Power Consumption	Depends on configuration
Dimensions (W x H x D)	Varies depending on the module configuration
Weight	Varies depending on the module configuration
Number of Safety Inputs	Configurable
Number of Safety Outputs	Configurable
Safety Standard	IEC 61508, IEC 62061, ISO 13849
Operating Temperature	0°C to +55°C
Response Time	< 10 ms (typical)
Storage Temperature Range	-25°C to +70°C
Relative Humidity	15 % ... 95 %, non-condensing
