SICK Flexi Soft User Manual

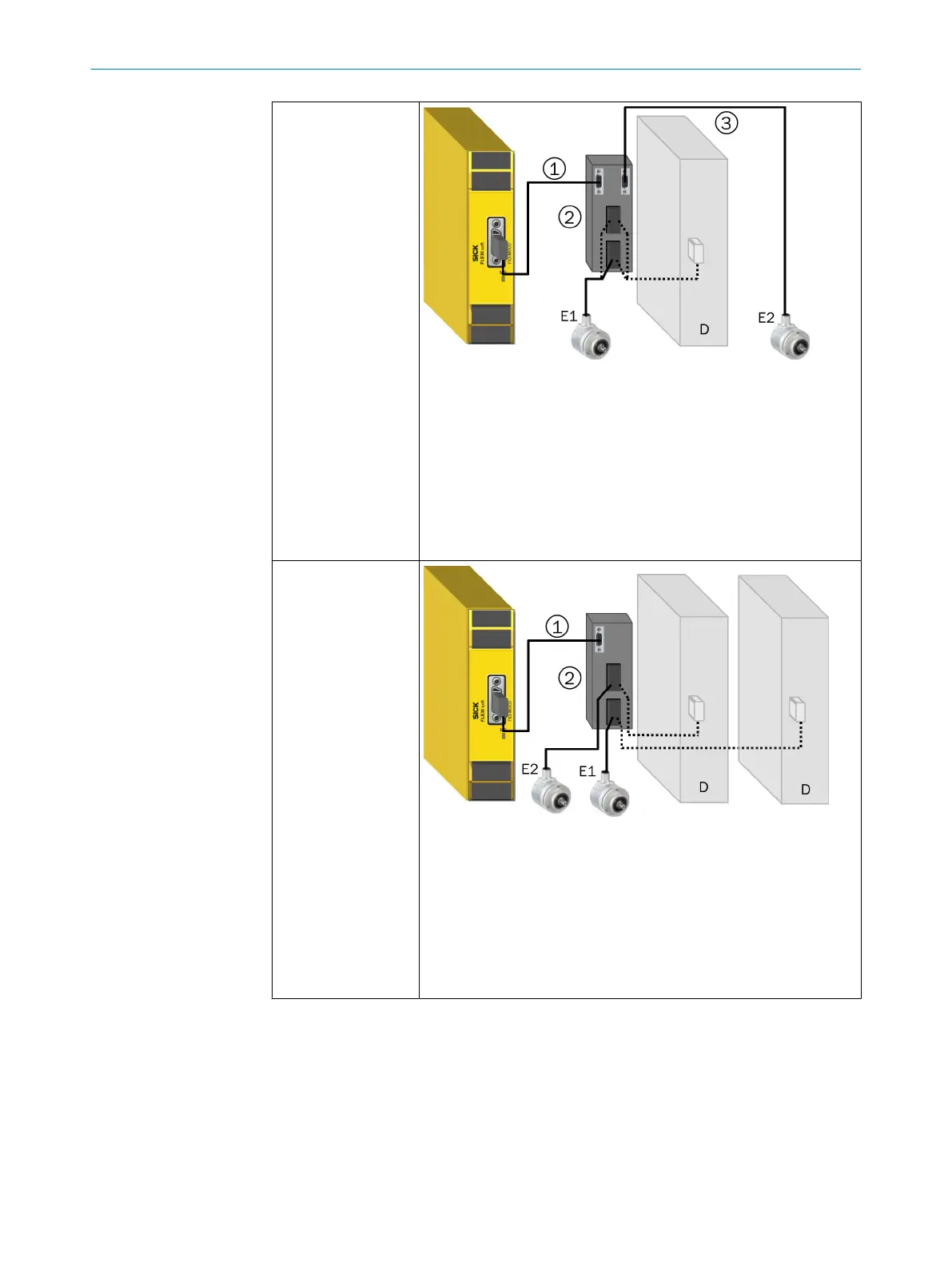

Connection with an
encoder/mo
tor feed‐
back connection box
FX3-EBX3 and user-
side cable for encod‐
ers
E1 Encoder 1
E2 Encoder 2
D PLC/drive control
1
Connection cable between the FX3-MOCx and an encoder/
mo
tor feedback connection box (SICK part number 2067798,
2067799, 2077261, or 2077262)
2
Encoder/motor feedback connection box FX3-EBX3 (SICK part
number 2068728)
3
User-side cable for encoder
Connection to one
dual encoder/motor
feedback connection
box FX3-EBX4
E1 Encoder 1
E2 Encoder 2
D PLC/drive control
1
Connection cable between the FX3-MOCx and an encoder/
mo
tor feedback connection box (SICK part number 2067798,
2067799, 2077261, or 2077262)
2
Dual encoder/motor feedback connection box FX3-EBX4 (SICK
part number 2068729)
5 ELECTRICAL INSTALLATION
94
O P E R A T I N G I N S T R U C T I O N S | Flexi Soft Modular Safety Controller 8012478/1IG6/2023-02-24 | SICK
Subject to change without notice

SICK Flexi Soft Specifications

General

Safety Integrity Level (SIL)	SIL3
Performance Level (PL)	PL e
Programming	Flexi Soft Designer
Power Supply	24 V DC
Safety Protocols	PROFIsafe, CIP Safety
Protection Class	IP20
Number of I/Os	Configurable
Operating Voltage	24 V DC
Power Consumption	Depends on configuration
Dimensions (W x H x D)	Varies depending on the module configuration
Weight	Varies depending on the module configuration
Number of Safety Inputs	Configurable
Number of Safety Outputs	Configurable
Safety Standard	IEC 61508, IEC 62061, ISO 13849
Operating Temperature	0°C to +55°C
Response Time	< 10 ms (typical)
Storage Temperature Range	-25°C to +70°C
Relative Humidity	15 % ... 95 %, non-condensing
