1.3 Intended use
1.3.1 Purpose of the device
The FLOWSIC500 serves for measuring the gas volume, volume flow rate and gas velocity
of natural gas in pipelines.
The FLOWSIC500 with optional volume conversion serves for measuring the gas volume
and converting the gas volume measured to base conditions as well as registering data on
totalizer levels, maximums and other data.
1.3.2 Product identification
The type plates for metrological and electrical parameters are located on the gas flow
meter. The type plate for the Pressure Equipment Directive is located on the adapter.
Type plate examples, see → p. 152, §9.5.

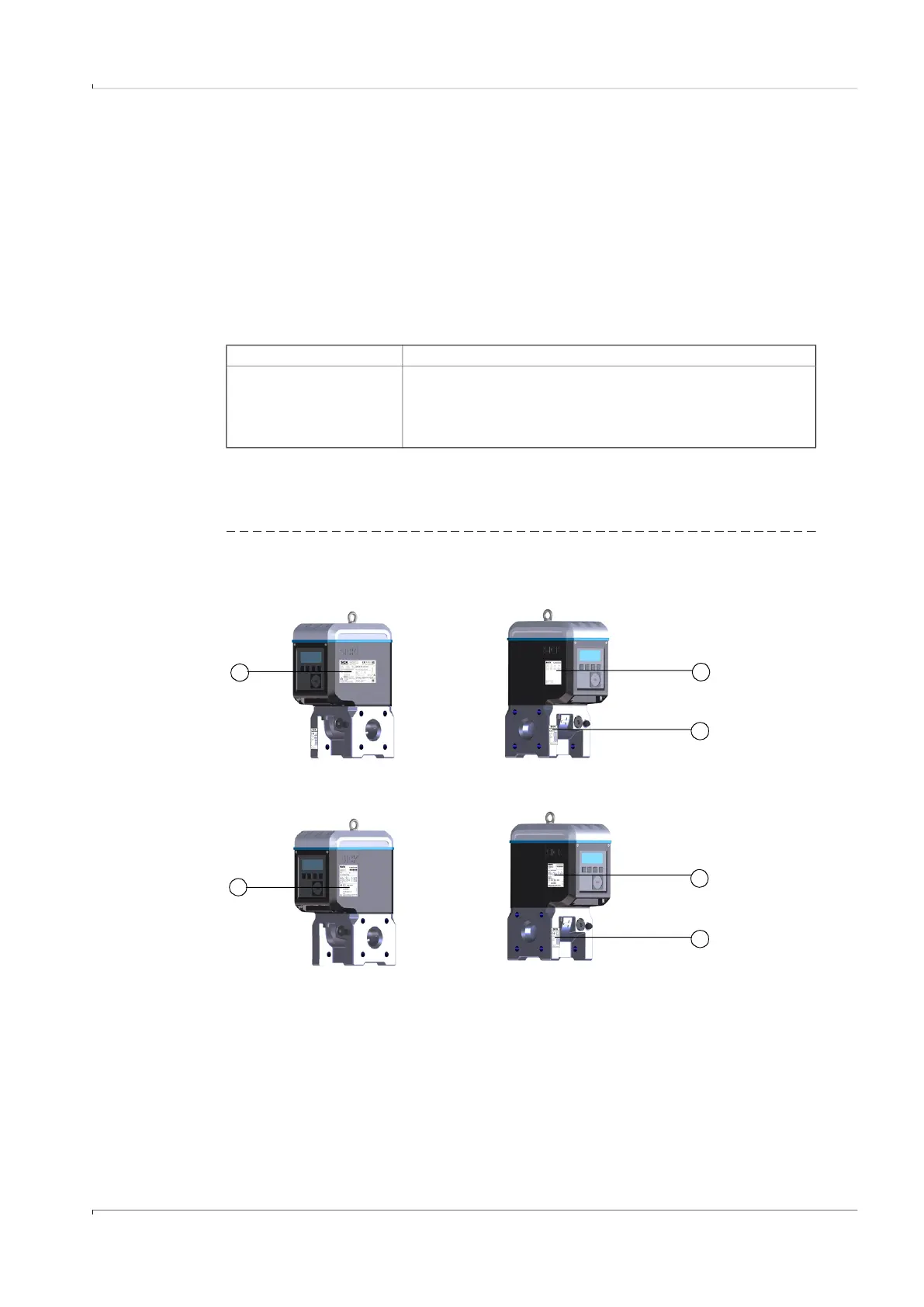

Fig. 1 Location of type plates
Product name: FLOWSIC500
Manufacturer:
SICK Engineering GmbH
Bergener Ring 27
01458 Ottendorf-Okrilla
Germany
5
3
1 Type plate, metrological and electrical parameters
(metrology and electronics)
4 Type plate, electrical parameters (electronics)
4
2 Pin assignment of plug-in connectors 5 Type plate, metrological parameters (metrology)
3 Type plate, Pressure Equipment Directive
Marking according to CSA
Marking according to ATEX/IECEx
4
1
3
2
