SICK MCS200HW Service Manual

104
8024638/AE00/V1-0/2019-09| SICKSERVICE MANUAL | MCS200HW
Subject to change without notice
5 REPAIRS
1 Adjust adjusting screws on the beamer and receiver (2 pieces each).

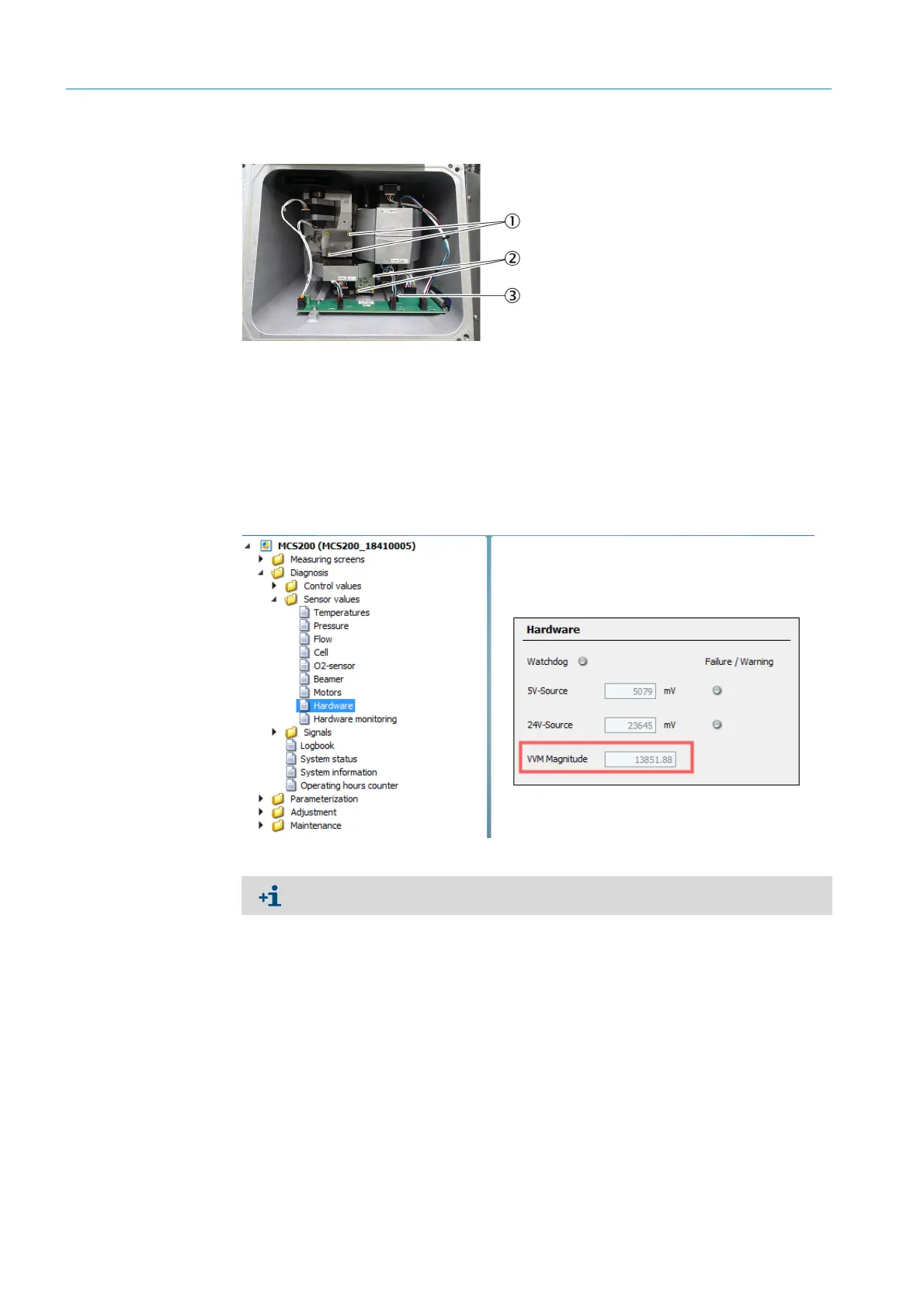

Fig. 154: Sender/receiver unit, adjusting screws
2 Check adjustment (two options):
a) SOPAS display
▸ Select Diagnosis -> Hardware.
▸ Adjust VVM Magnitude to the maximum possible value.
Fig. 155: SOPAS VVM Magnitude
b) LED on LPMS04
>>> Green LED shows increasing energy.
>>> Red LED shows decreasing energy.
4 Click Test measurement to deactivate.
5 Replace the drying agent (see Chapter “Replacing the drying agent”, page 44).
6 Close the sender/receiver unit cover and screw tight.
1Adjusting screws
2Adjusting screws
3LED
The SOPAS display updates only every 3 to 4 seconds.
