SICK MCS200HW Service Manual

15
8024638/AE00/V1-0/2019-09| SICK S E R V I C E M A N U A L | MCS200HW
Subject to change without notice
MAINTENANCE 3

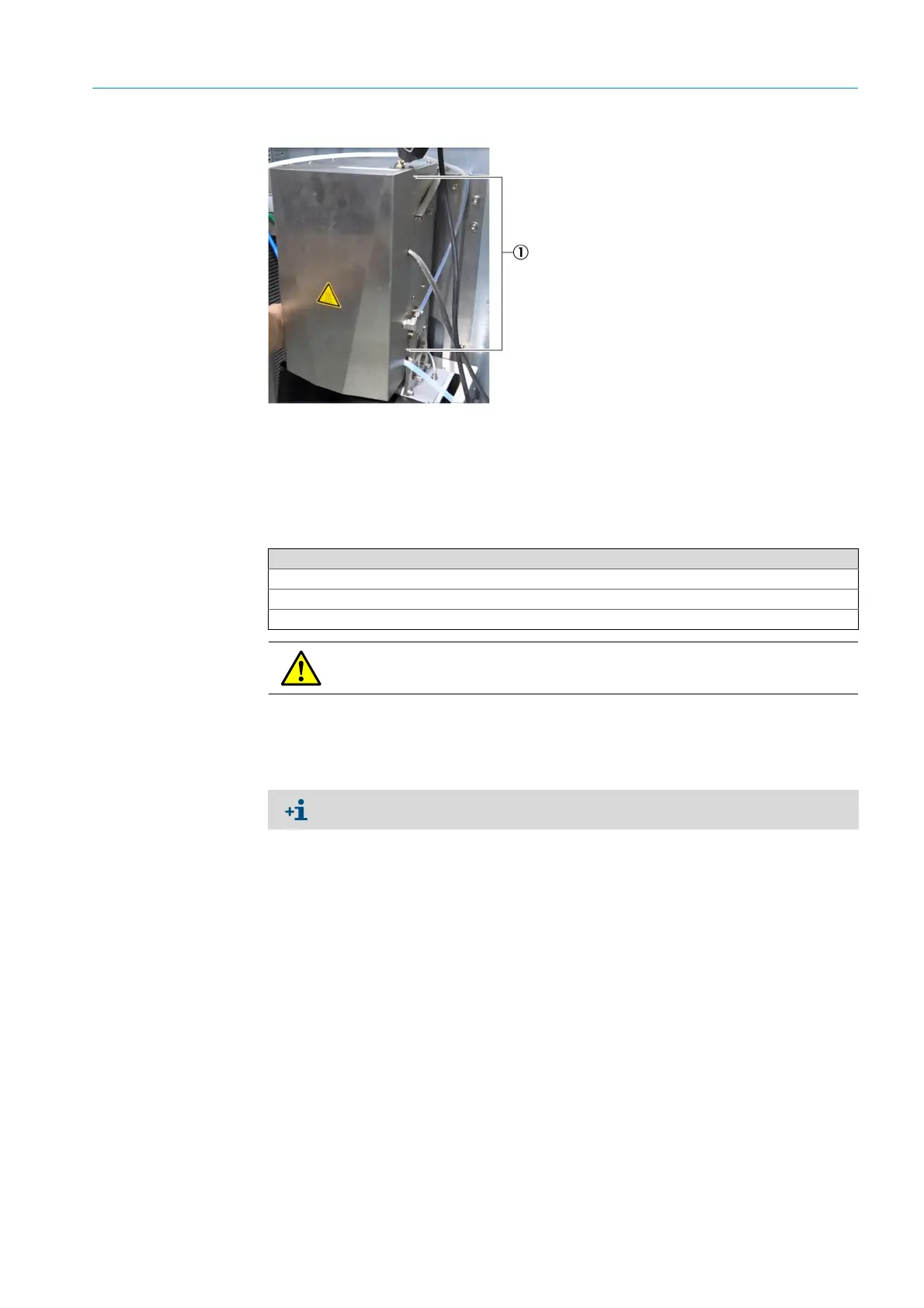

Fig. 5: Cell cover
4 Remove the cell cover.
3.4.1 Removing the complete cell
1 Disconnect the MCS200HW power supply.
2 Let the MCS200HW cool down.
3 Loosen the fastening screws of the cell cover on the right and left with a Phillips screw-
driver (4 pieces).
4 Open the cell cover (see Chapter “Working on the cell”, page 14).
1 Fastening screws, right
Tools required
Jaw wrench, size 14/16/18
Phillips screwdriver
5 mm Allen key
DANGER: Risk of burns due to hot surface.
Allow the MCS200HW to cool down before carrying out any work.
Do not remove the screws, only loosen them.
