SICK MCS200HW Service Manual

50
8024638/AE00/V1-0/2019-09| SICKSERVICE MANUAL | MCS200HW
Subject to change without notice
4 FUNCTIONAL TEST
4.5.3 Test analog and digital inputs and outputs
4.5.3.1 Analog outputs

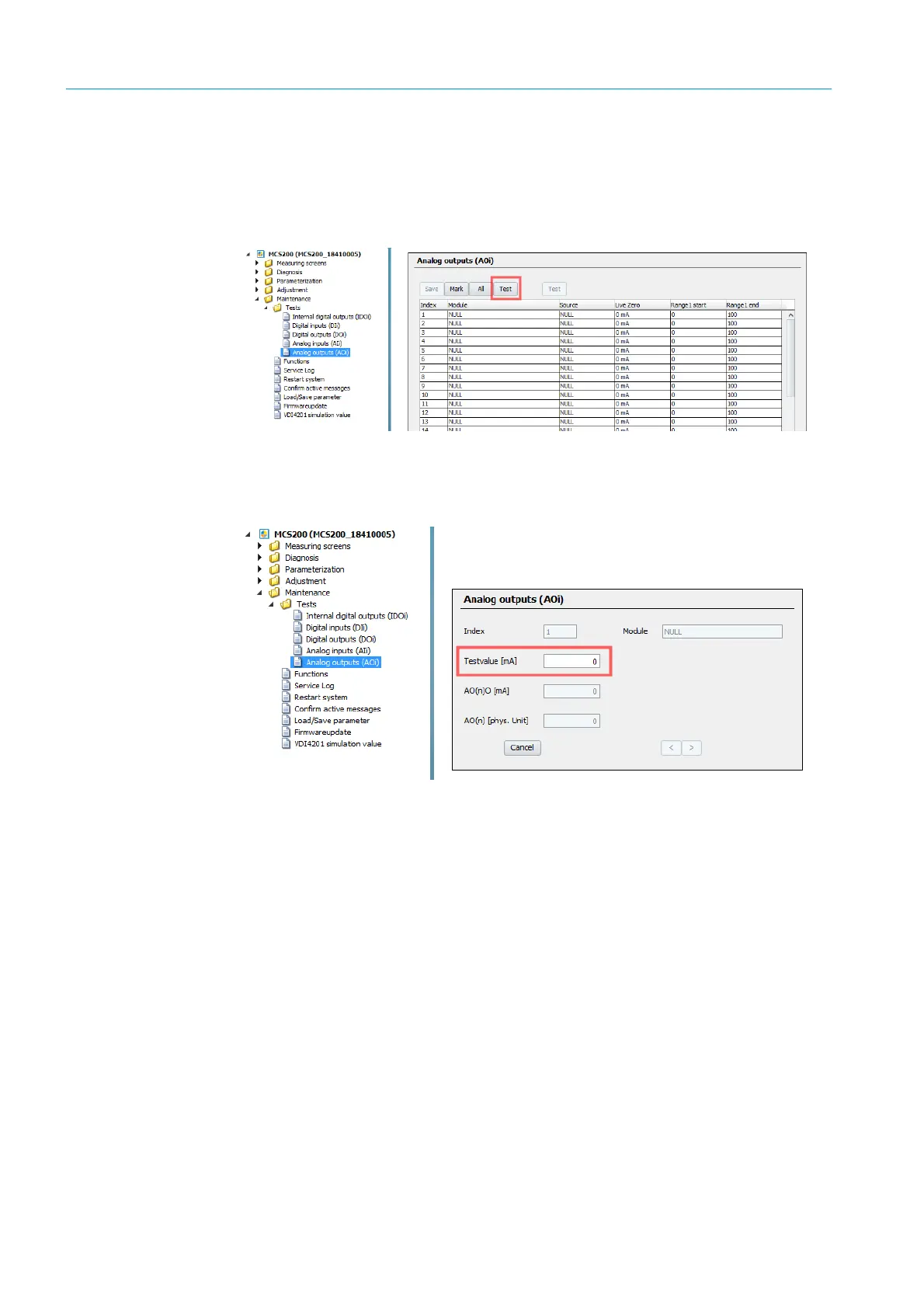

Under Analog outputs (AOi), current values can be specified which are present at the
respective analog outputs.
1 Select Maintenance -> Tests -> Analog outputs (AOi).
2 Select Tests.
>>> The input window opens.
3 Enter the value.
4.5.3.2 Digital outputs
For the procedure to simulate the digital outputs see “Analog outputs”, page 50.
