8024638/AE00/V1-0/2019-09| SICK S E R V I C E M A N U A L | MCS200HW
Subject to change without notice
FUNCTIONAL TEST 4

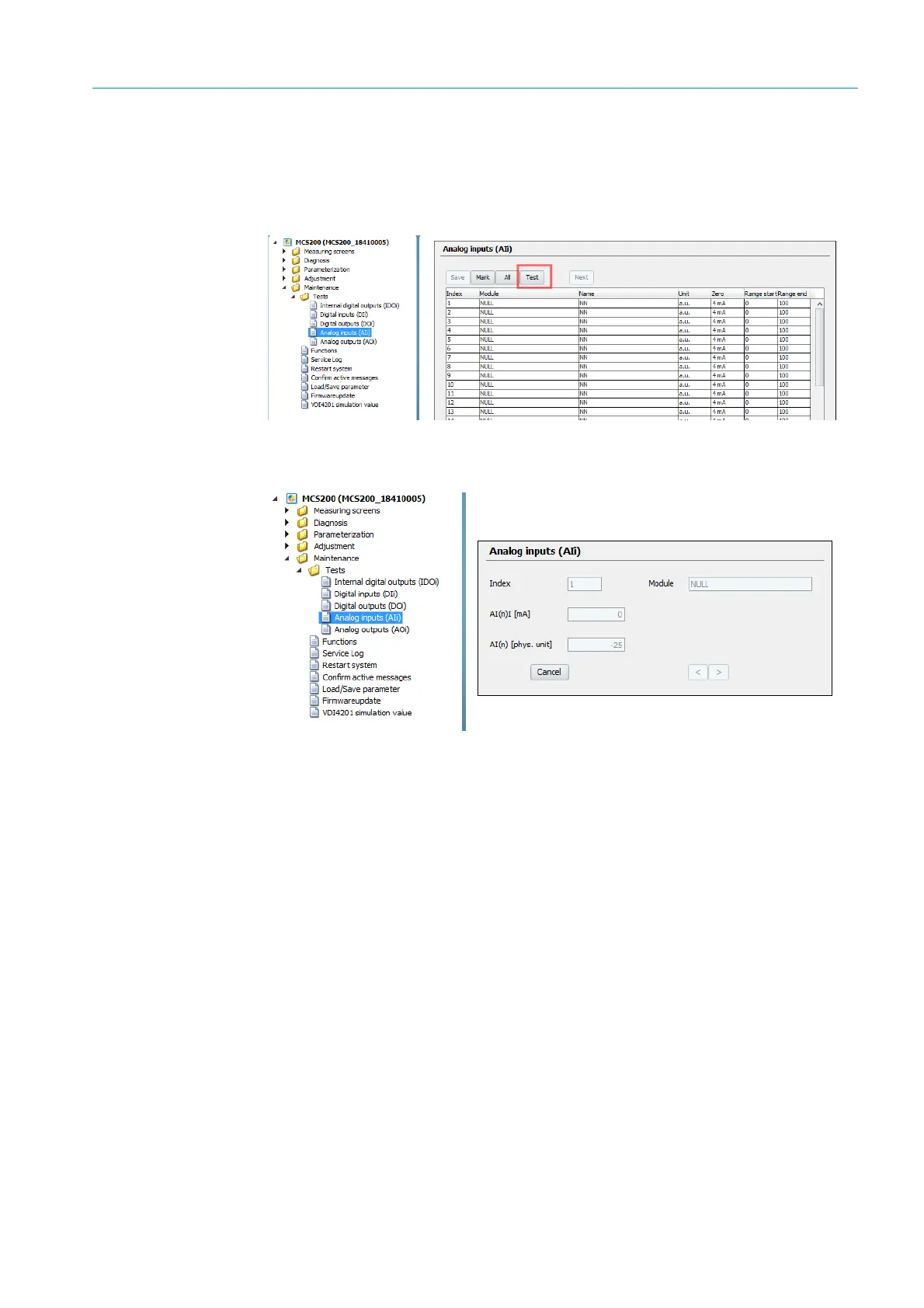

4.5.3.3 Analog inputs
Under Analog inputs (AIi), externally simulated current values can be displayed and checked
(as mA value and converted to the physical quantity).
1 Select Maintenance -> Tests -> Analog inputs (AIi).
2 Select Tests.
>>> The input window opens.
3 Enter values.
4.5.3.4 Digital inputs
For the procedure to simulate the digital inputs see “Analog inputs”, page 51.
