SICK MCS200HW Service Manual

142
8024638/AE00/V1-0/2019-09| SICKSERVICE MANUAL | MCS200HW
Subject to change without notice
5 REPAIRS

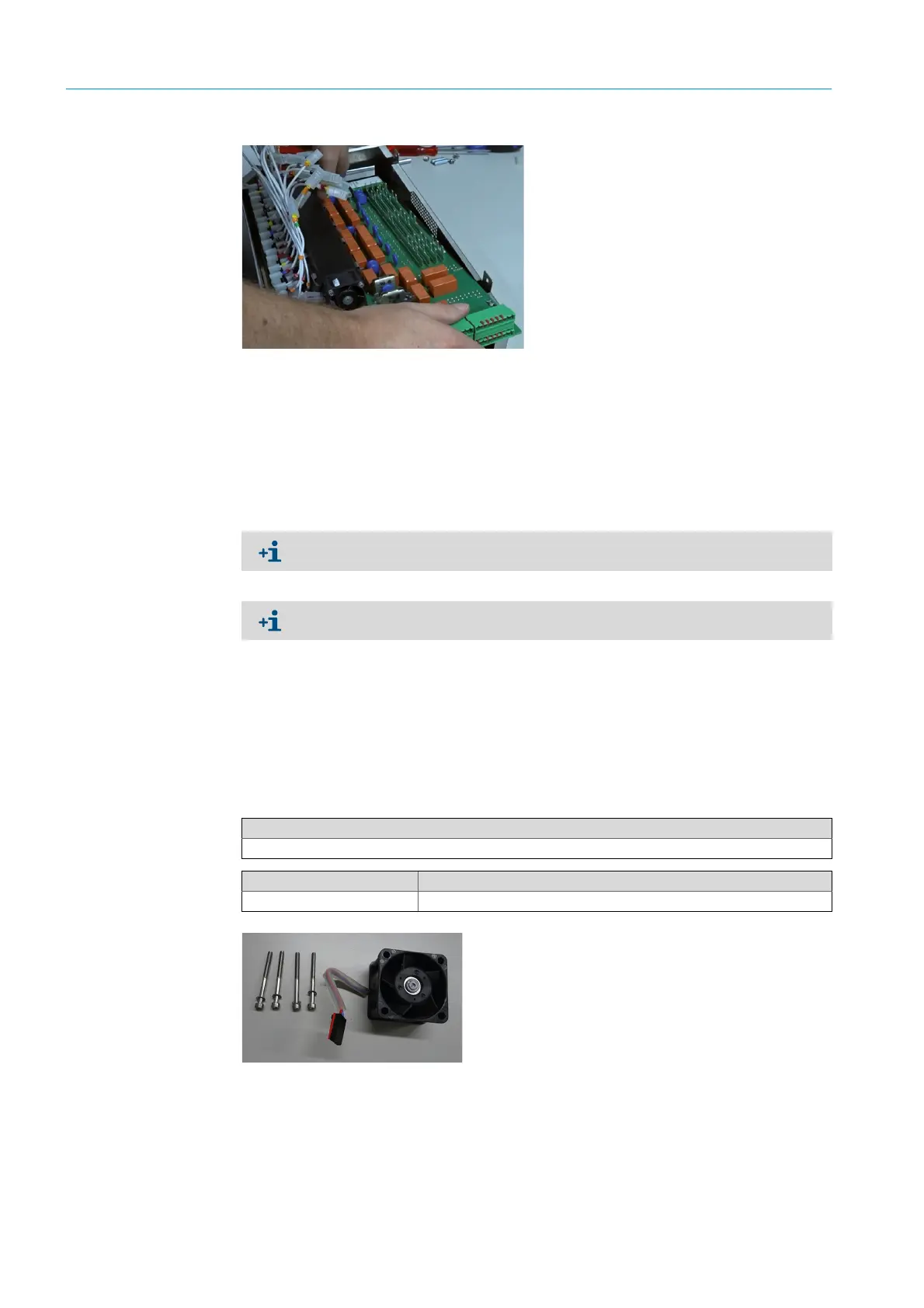

Fig. 234: LPMS02, inserting
12 Align the LPMS02 on the screw holes and screw tight:
▸ Tighten the studs.
▸ Tighten the fastening screws.
13 Screw the cover template tight.
▸ Before tightening, hook the cover template into the bottom of the circuit board and
align it.
14 Connect the plugs at the side and bottom of the electronic unit.
15 Plug in the fuse cable.
16 Connect the cables to the upper electronics unit.
17 Screw the upper and lower electronics unit together.
▸ Top fastening screws (2 pieces).
▸ Rear fastening screws (2 pieces).
18 Fit the electronics unit (see Chapter “Removing and fitting the electronics unit”,
page 129).
5.4.5 Replacing the LPMS02 fan
Fig. 235: LPMS02 fan
The plugs are coded and can only be reconnected to the correct socket.
Read the plug-in positions of the fuse cables from the photo or from the overview plan.
Tools required
Phillips screwdriver
Spare parts set No. Contents
2099750 Fan with screws
