REPAIRS 5
10 Connect the MCS200HW power supply.
5.3.18 Replacing the sender/receiver windows
To replace the windows, the cell must be completely removed.
1 Disconnect the MCS200HW power supply.
1 Remove the cell (see Chapter “Removing the complete cell”, page 15).
2 Loosen the fastening screws of the window cover with a 3 mm Allen key (3 pieces).

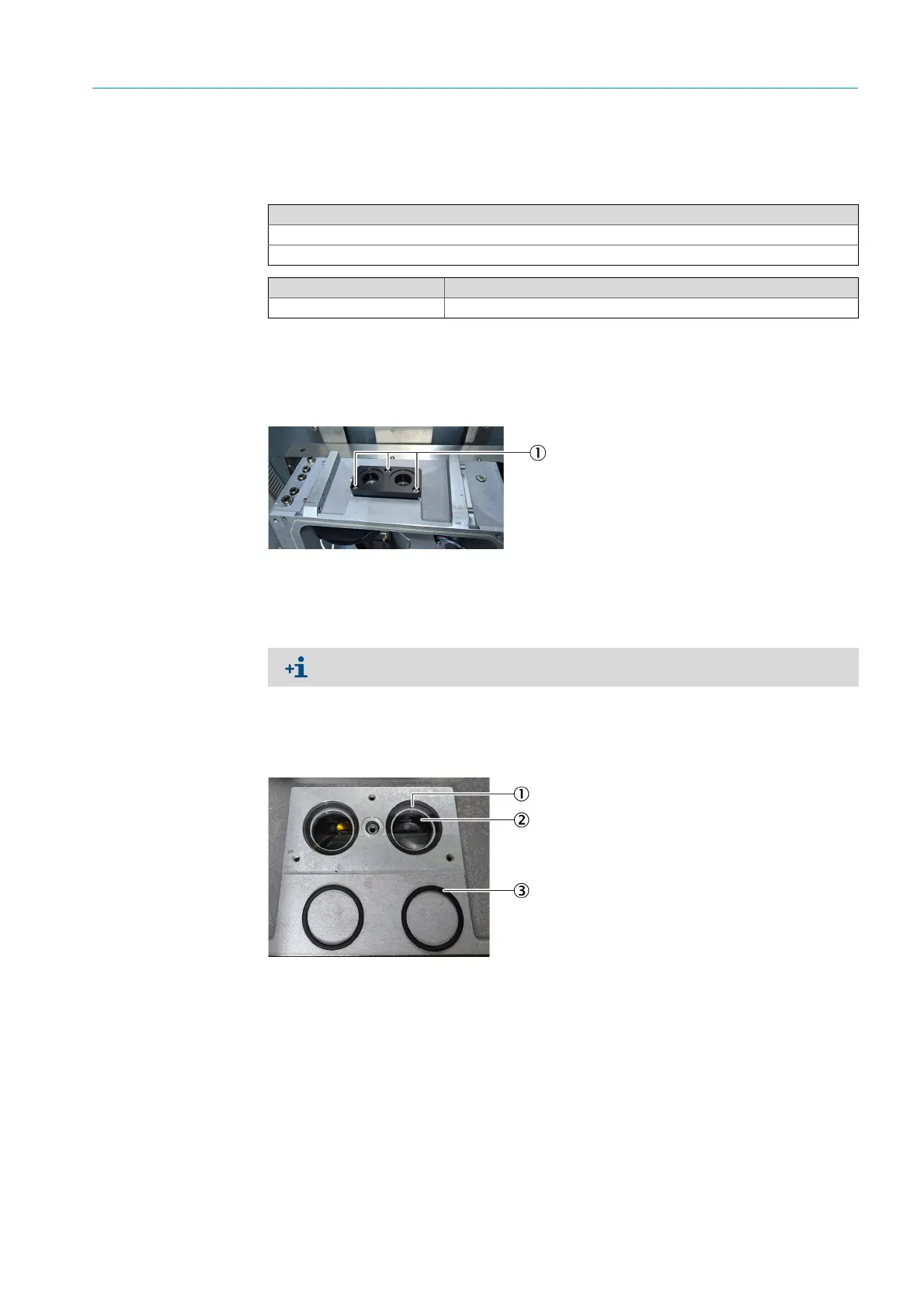

Fig. 198: Window cover
3 Remove the window cover.
4 Replace windows and O-rings:
1 Remove old windows and O-rings.
2 Insert new O-rings and windows.
▸ O-rings sit under and over the windows.
Fig. 199: Windows
5 Screw the window cover on tight.
6 Fit the cell (see Chapter “Fitting the complete cell”, page 18).
7 Connect the MCS200HW power supply.
Tools required
Phillips screwdriver
3 mm Allen key
Spare parts set No. Contents
210050 Sender/receiver unit windows with seals
1Fastening screw
Make sure no loose parts fall into the sender/receiver unit.
1 O-ring, inner
2Windows
3 O-ring, outer
