SICK MCS200HW Service Manual

89
8024638/AE00/V1-0/2019-09| SICK S E R V I C E M A N U A L | MCS200HW
Subject to change without notice
REPAIRS 5

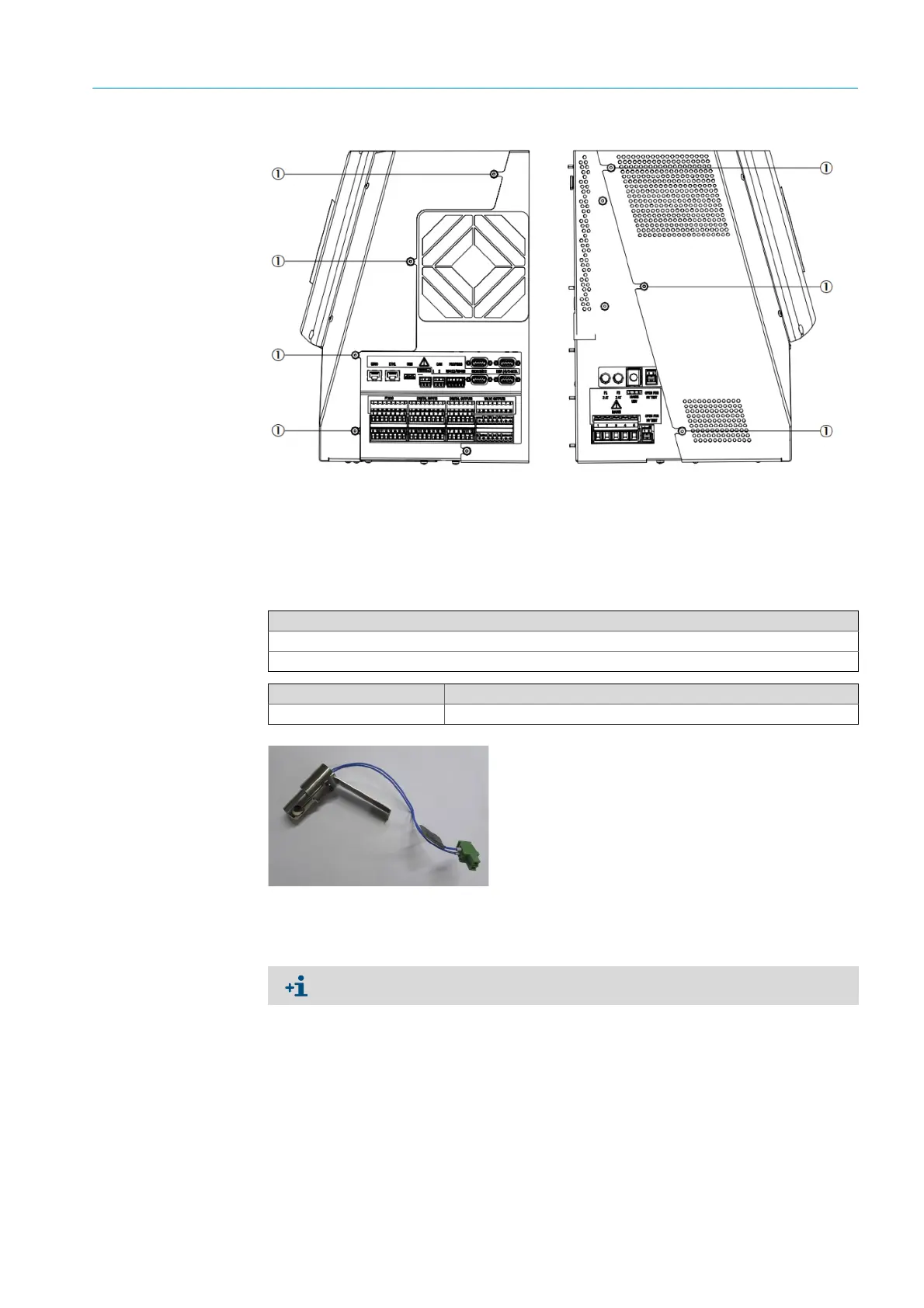

Fig. 128: Electronics housing cover, sender/receiver unit 3
▸ Pull the electronics housing cover off to the front.
5.3.2 Replacing the beamer
Fig. 129: Beamer
1 Open the sender/receiver unit (see Chapter “Opening the sender/receiver unit”,
page 44).
2 Disconnect the plug connection of the power supply.
1 Side fastening screws
Tools required
Phillips screwdriver
5 mm Allen key
Spare parts set No. Contents
2099790 Beamer and drying agent
The drying agent must be replaced each time the sender/receiver unit is opened.
