SICK MCS200HW Service Manual

107
8024638/AE00/V1-0/2019-09| SICK S E R V I C E M A N U A L | MCS200HW
Subject to change without notice
REPAIRS 5
11 Position the chopper wheel and screw tight.
12 Put the chopper wheel cover on and screw it tight.
13 Insert the beamer unit into the sender/receiver unit and screw tight.
14 Connect the plug connections.
15 Replace the drying agent (see Chapter “Replacing the drying agent”, page 44).
16 Close the sender/receiver unit cover and screw tight.
17 Connect the MCS200HW power supply.
5.3.10 Replacing the filter wheel motor

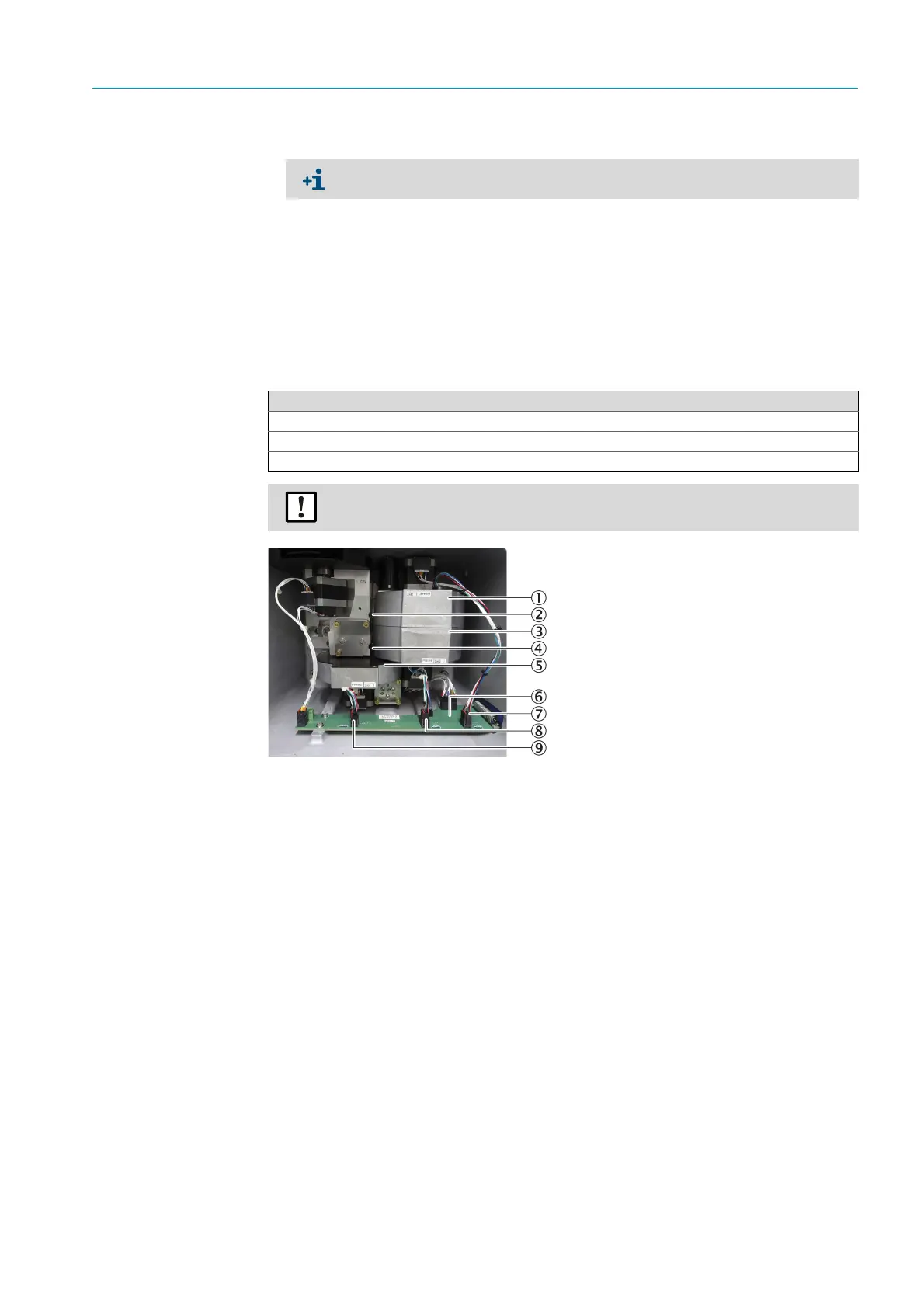

Fig. 161: Filter wheel housing 1 and 2, fastening screws left and plug connectors
The axle is chamfered.
Tools required
2 mm Allen key
2.5 mm Allen key
5 mm Allen key
NOTE: Material damage
Do not touch the optical surfaces of the filter wheels.
1Filter wheel 1
2 Filter wheel 1, fastening screw, left
3Filter wheel 2
4 Filter wheel 2, fastening screw, left
5Filter wheel 3
6LPMS04 circuit board
7 Filter wheel 1, plug connection
8 Filter wheel 2, plug connection
9 Filter wheel 3, plug connection
