SICK MCS200HW Service Manual

106
8024638/AE00/V1-0/2019-09| SICKSERVICE MANUAL | MCS200HW
Subject to change without notice
5 REPAIRS

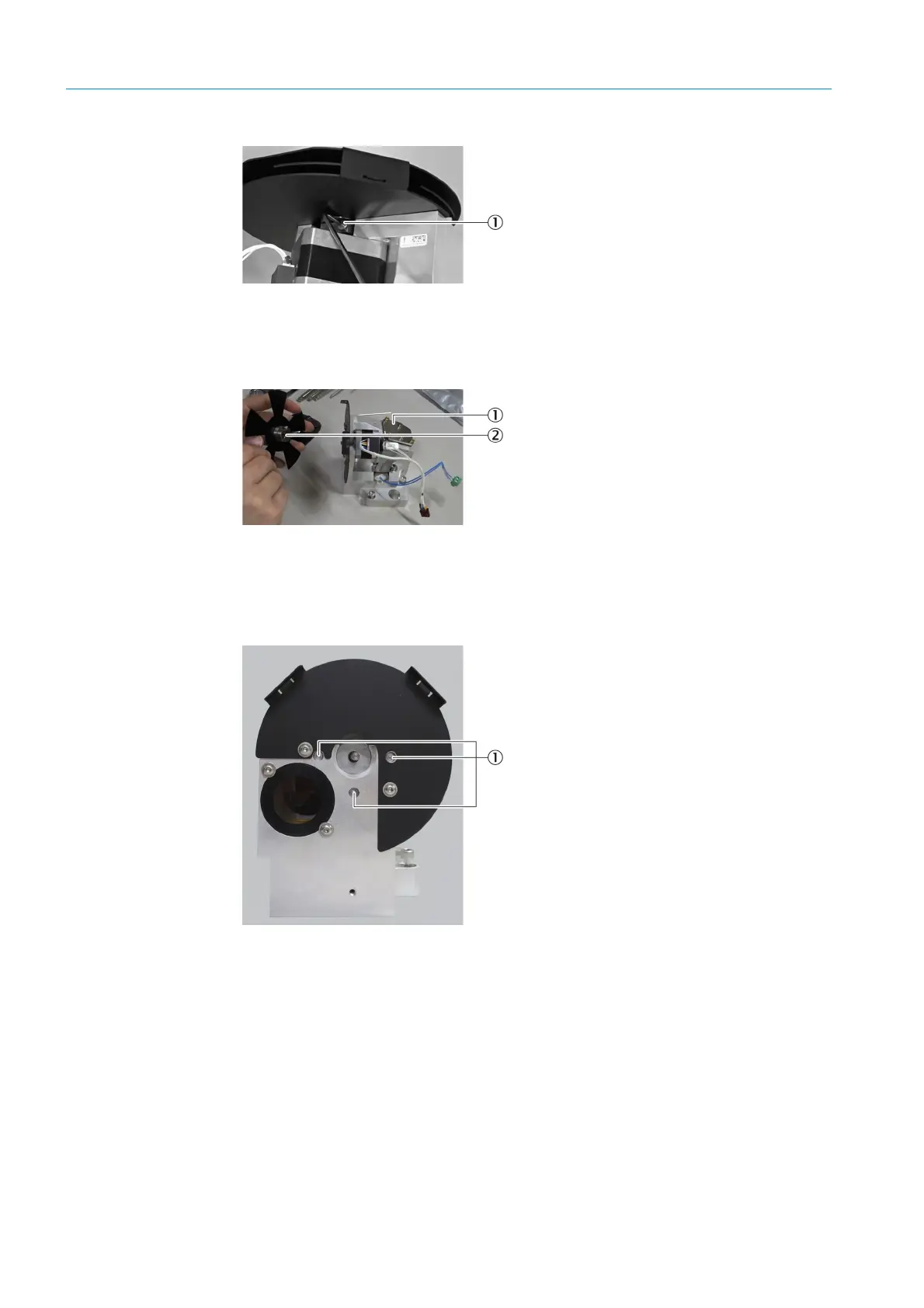

Fig. 158: Chopper wheel, fastening screw
7 Pull the chopper wheel off.
Fig. 159: Pulling the chopper wheel off
8 Loosen the fastening screws of the chopper motor with a 2 mm Allen key (3 pieces).
Fig. 160: Chopper motor, fastening screws
9 Remove the chopper motor.
10 Fit a new chopper motor.
1 Align the chopper motor (cable position see Fig. 152 “Beamer unit”, page 102).
2 Screw the chopper motor tight.
1Fastening screw
1Beamer unit
2 Chopper wheel
1Fastening screw
