8024638/AE00/V1-0/2019-09| SICKSERVICE MANUAL | MCS200HW
Subject to change without notice
5 REPAIRS
▸ Right side (see Fig. 206 “Electronics unit, plug connections, right”, page 130).
▸ Below (see Fig. 208 “Electronics unit, plug connections, bottom”, page 131).
9 Replace the electronics housing cover and screw tight.
10 Connect the power supply.
11 Connect the MCS200HW power supply.

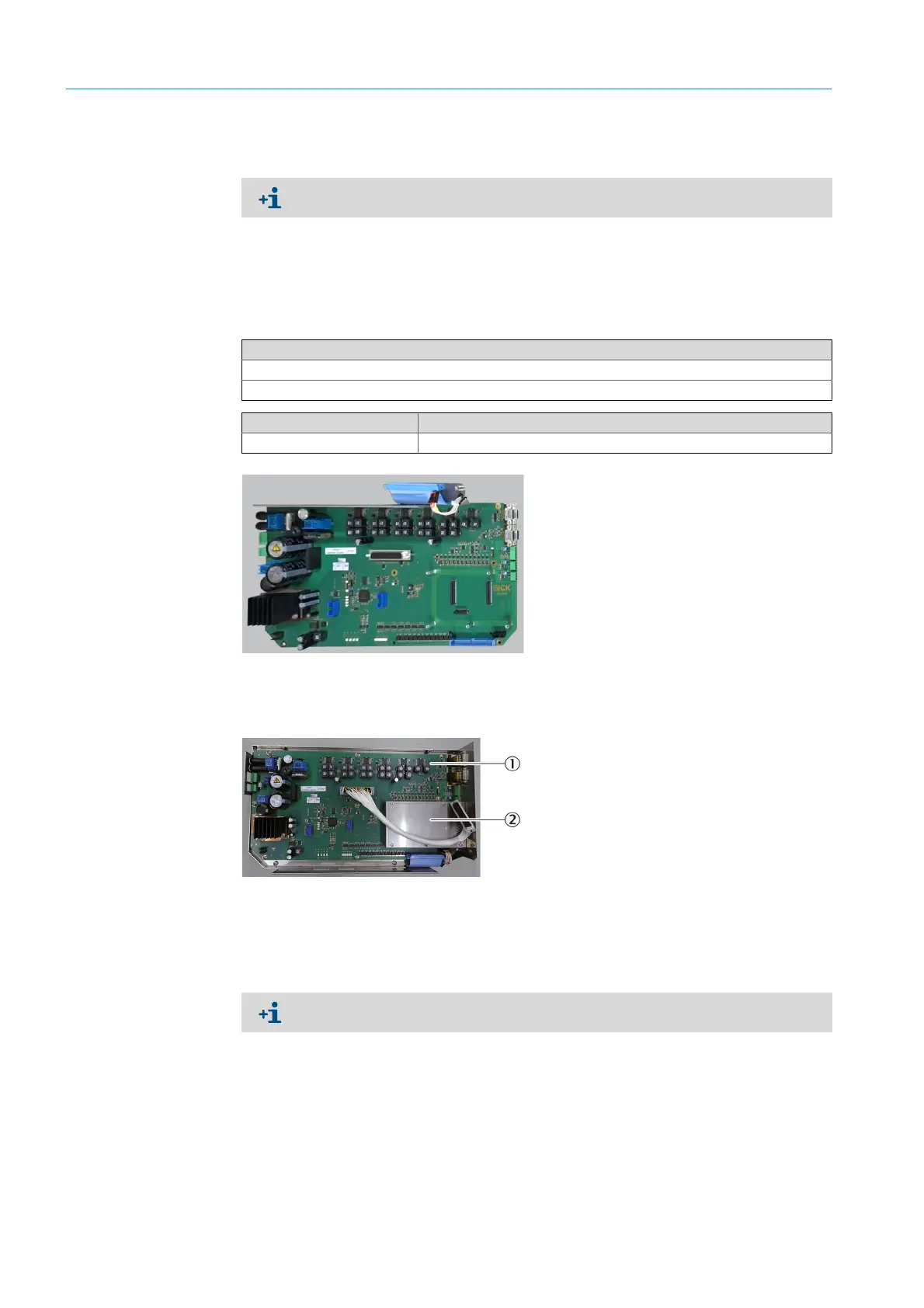

5.4.2 Replacing the LPMS01 circuit board
Fig. 210: LPMS01
1 Remove the electronics unit (see Chapter “Removing and fitting the electronics unit”,
page 129).
Fig. 211: LPMS01
2 Disconnect the connecting cable to the LPMS04.
The plugs are coded and can only be reconnected to the correct socket.
Tools required
Phillips screwdriver
5 mm socket wrench
Spare parts set No. Contents
2099751 LPMS01
1LPMS01
2Linux CPU
Keep cable for reassembly.
