8024638/AE00/V1-0/2019-09| SICKSERVICE MANUAL | MCS200HW
Subject to change without notice
3 MAINTENANCE
3.4.2 Fitting the complete cell
1 Guide the power supply for the cell heater through the recess in the device cabinet.

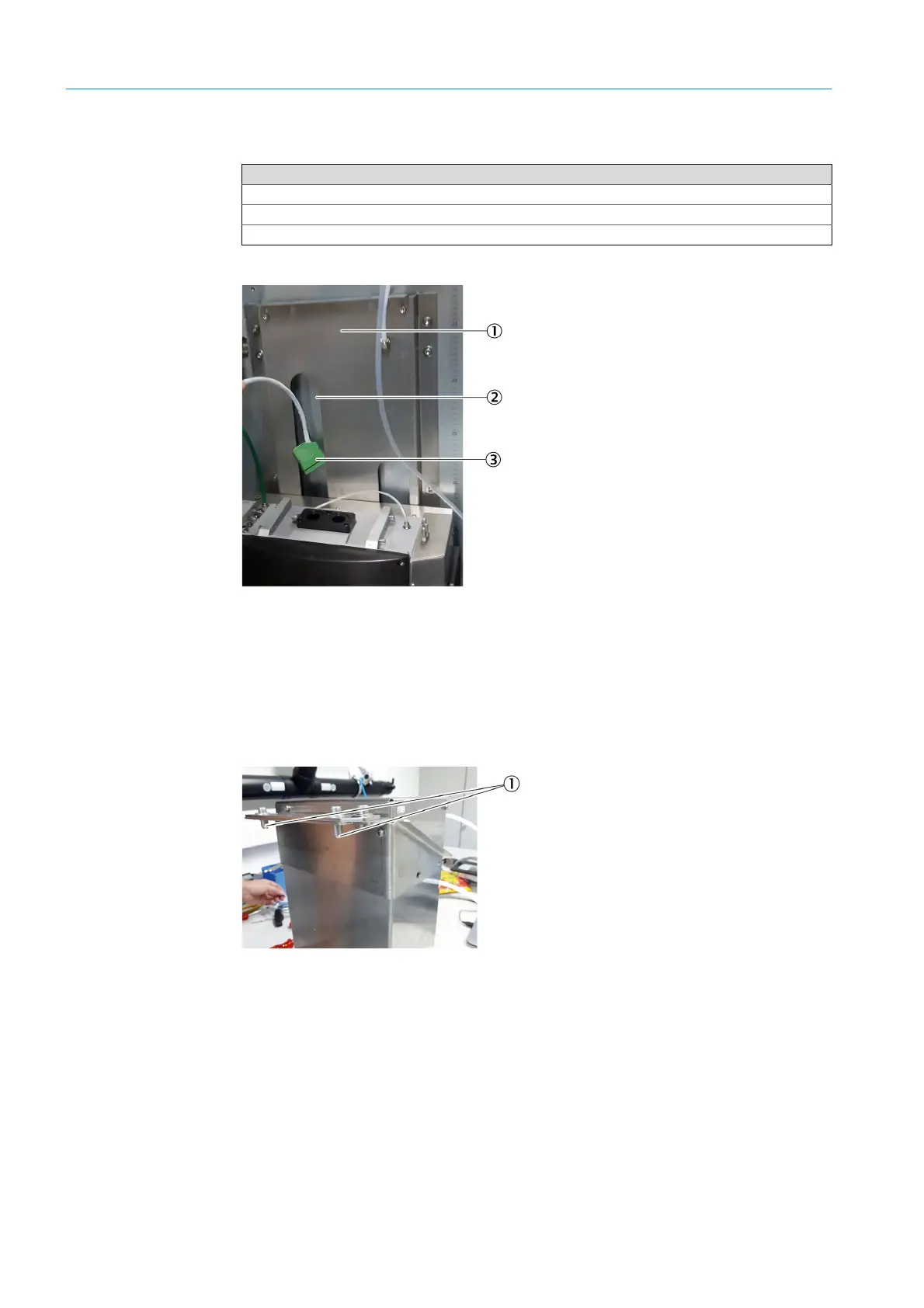

Fig. 10: Device cabinet with retaining plate
2 Position the cell in the device cabinet:
▸ Hook the bolts of the bracket plate of the cell into the retaining plate in the device
cabinet.
Fig. 11: Cell with bracket plate
3 Screw the cell A-holder tight:
▸ Fasten screws left and right with a 5 mm Allen key (3 pieces each).
Tools required
Jaw wrench, size 14/16/18
Phillips screwdriver
5 mm Allen key
1Retaining plate
2Recess
3 Power supply, cell heater
1Bracket plate with bolts
To Next Page
