33
8024638/AE00/V1-0/2019-09| SICK S E R V I C E M A N U A L | MCS200HW
Subject to change without notice
MAINTENANCE 3

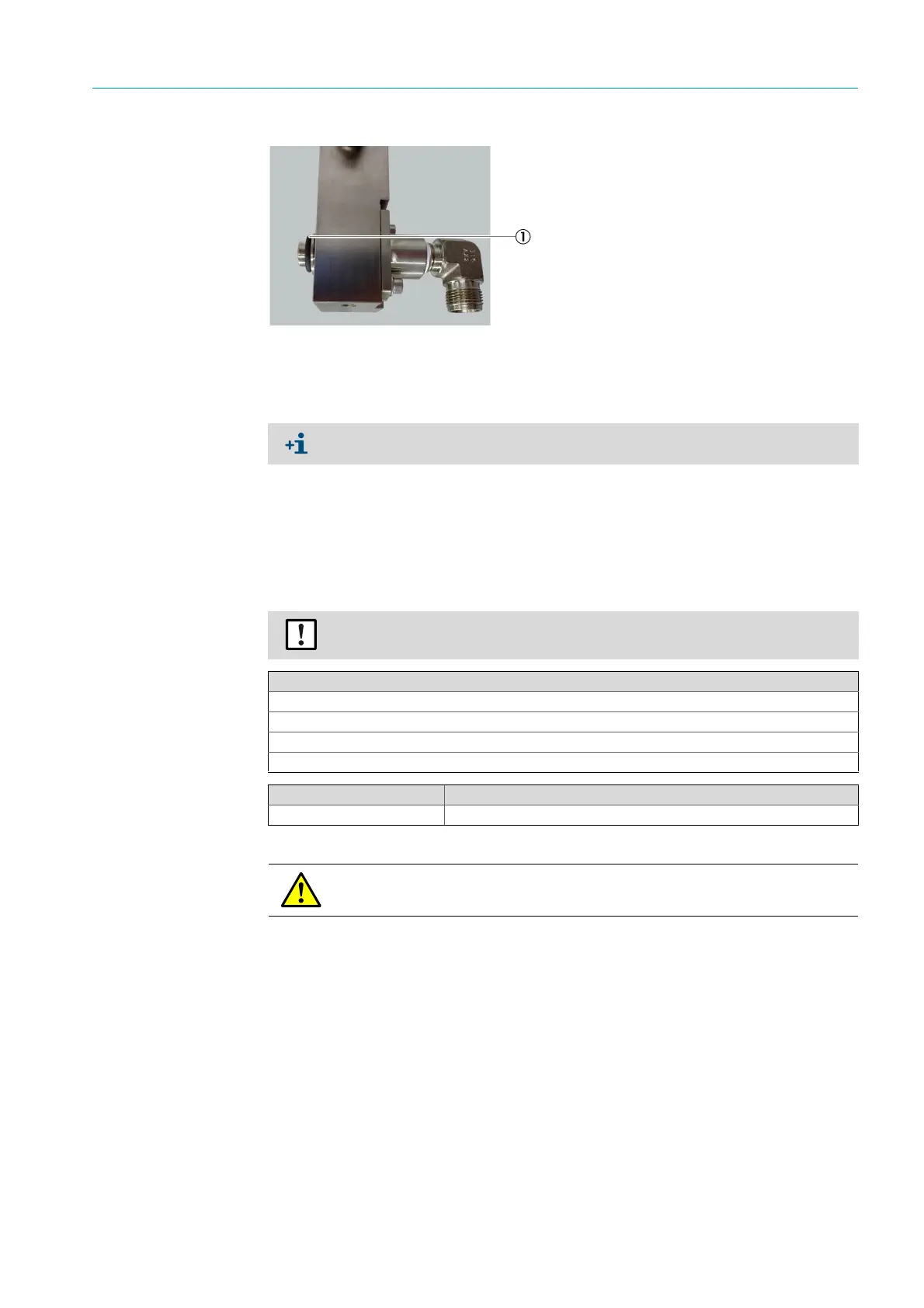

Fig. 36: Ejector nozzle, O-ring, outside
11 Attach the ejector block on the cell with new screws.
12 Fasten all hose connections (see Fig. 24 “Ejector block, hose connections”, page 27).
13 Reconnect the cables. Fix the cables with fastening clips.
14 Close the cell cover and screw tight.
3.4.6 Mirror plates and tubes maintenance
The mirror plates can only be serviced with the cell removed.
The complete cell must be removed to replace the O-rings of the upper mirror plate.
1 Ejector nozzle, O-ring, outside
Observe the sequence:
First put the spring washer, then the washer on the screw.
NOTE: Material damage
Do not touch the coated surfaces of the mirror plates.
Tools required
5 mm Allen key
Phillips screwdriver
Slot screwdriver
Scalpel
Spare parts set No. Contents
2045740 Mirror plates and tubes
DANGER: Risk of burns due to hot surface.
Allow the MCS200HW to cool down before carrying out any work.
