8024638/AE00/V1-0/2019-09| SICK S E R V I C E M A N U A L | MCS200HW
Subject to change without notice
MAINTENANCE 3
12 Fit a new O-ring with support sleeve on the cell (see Fig. 27 “Ejector block, O-rings”,
page 28, item number 1).

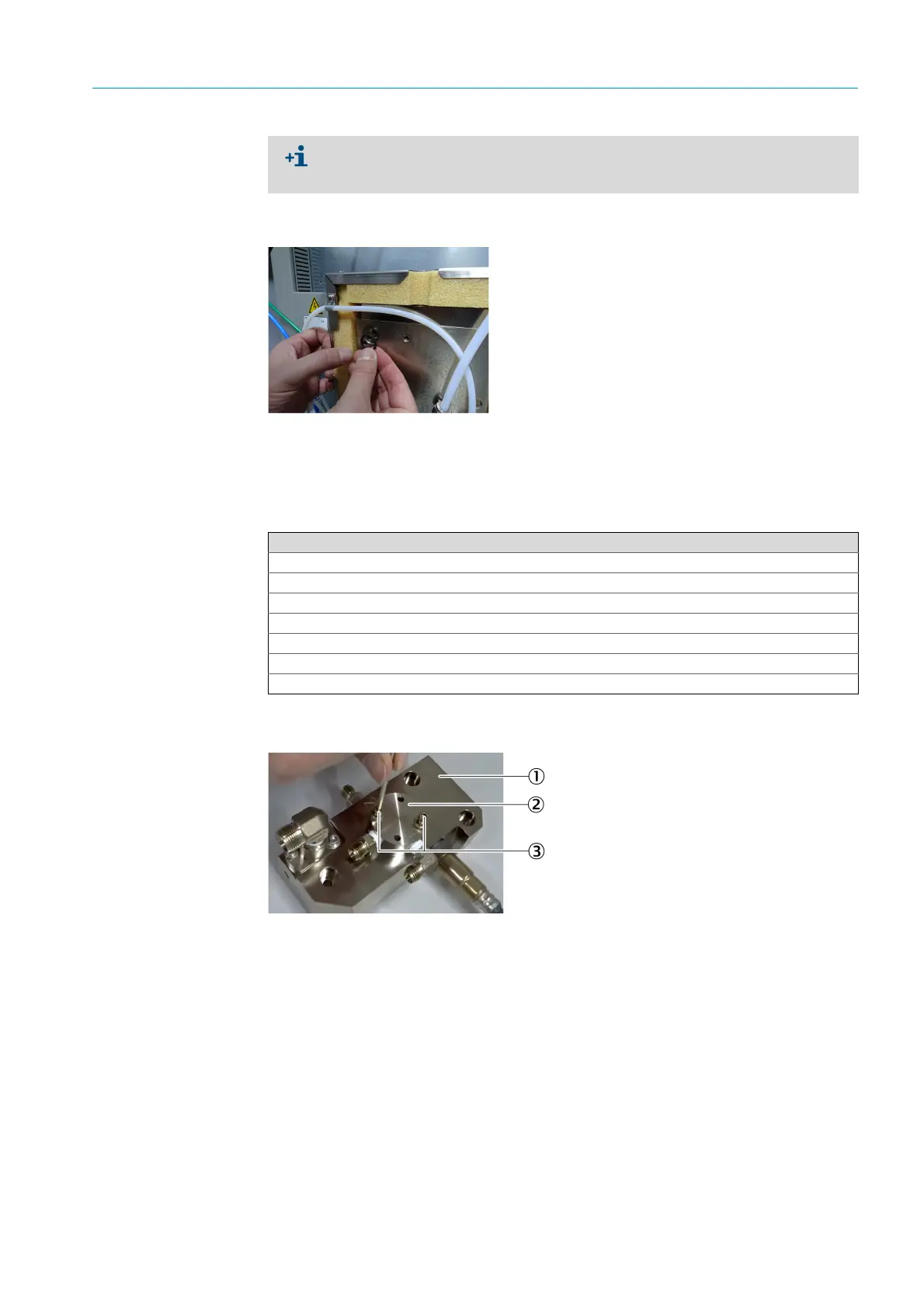

Fig. 28: Ejector block, O-ring with support sleeve
13 Fit the second O-ring on the back of the ejector block (see Fig. 36 “Ejector nozzle, O-ring,
outside”, page 33).
3.4.5.1 Replacing the O-ring on the middle section
1 Loosen the fastening screws of the ejector block middle section with a 2.5 mm Allen key
(2 pieces).
Fig. 29: Ejector block, middle section
2 Remove the middle section from the ejector block.
Suitable aids for removing O-ring residues:
– Flat tool (slot screwdriver, scalpel or similar)
–Acetone
Tools required
Phillips screwdriver
Slot screwdriver
Jaw wrench, size 14/19
5 mm Allen key
3 mm Allen key
2 mm Allen key
Scalpel
1 Ejector block
2Middle section
3Fastening screw
