8024638/AE00/V1-0/2019-09| SICKSERVICE MANUAL | MCS200HW
Subject to change without notice
5 REPAIRS

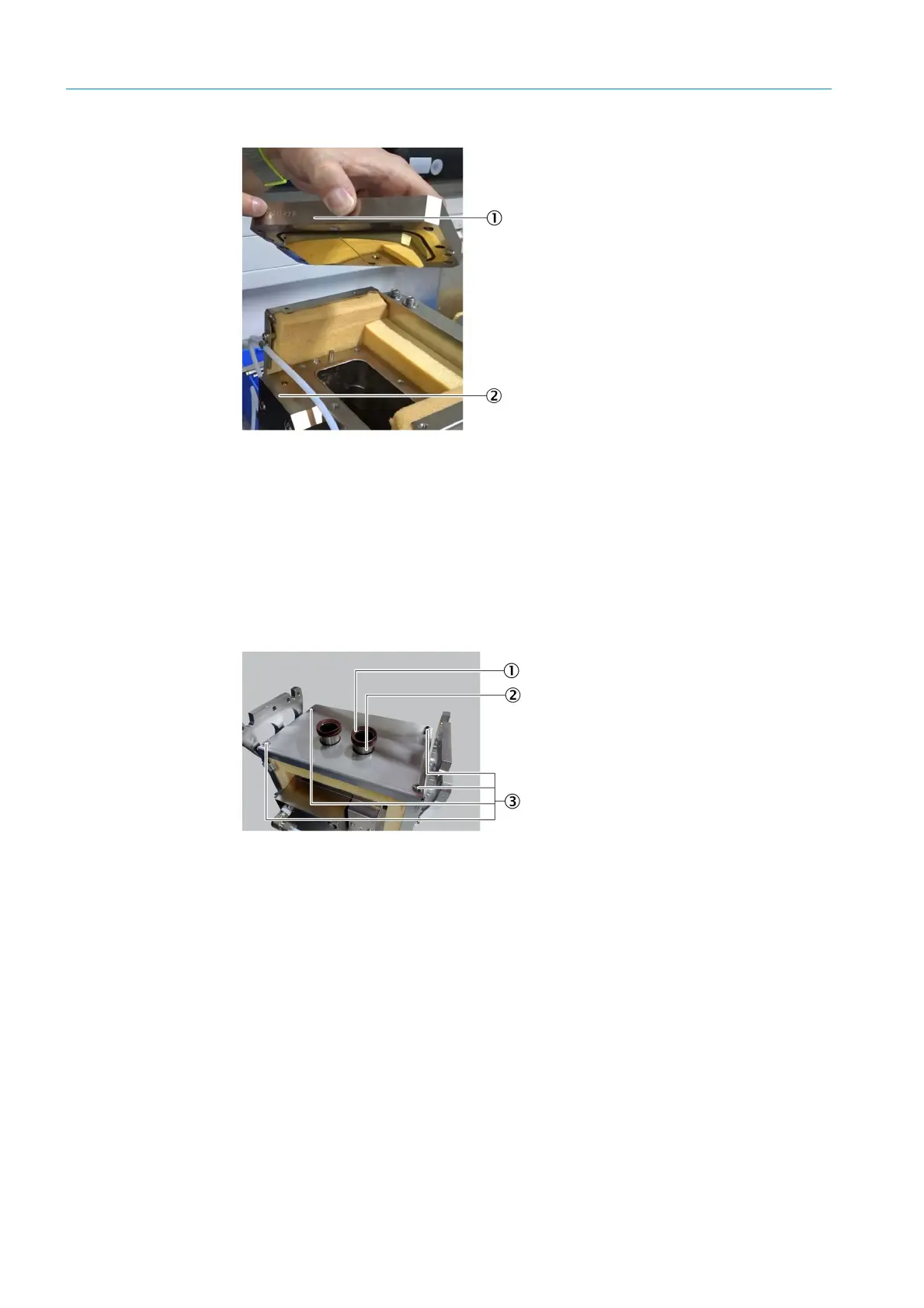

Fig. 104: Positioning the upper mirror plate
9 Screw the upper cell cover plate tight:
▸ Fastening screws on the top side (4 pieces).
▸ Fastening screw on the rear side (1 piece).
5.2.4.2 Replacing the lower mirror plate
1 Place the removed cell down with the underside facing upwards.
Fig. 105: Cell, underside
2 Remove the sealing rings from the tubes.
3 Loosen the fastening screws of the lower cover plate with a Phillips screwdriver
(4
pieces).
4 Remove the lower cell cover plate.
1Mirror plate labeling
2 Cell front side with cell inlet filter
1 Sealing ring
2Tube
3Fastening screws
