REPAIRS 5
2 Tighten the fastening screws with a 5 mm Allen key.
▸ Tighten fastening screws parallel.
▸ Ensure the screws grip properly and avoid thread seizure.
7 Remove the upper mirror plate.

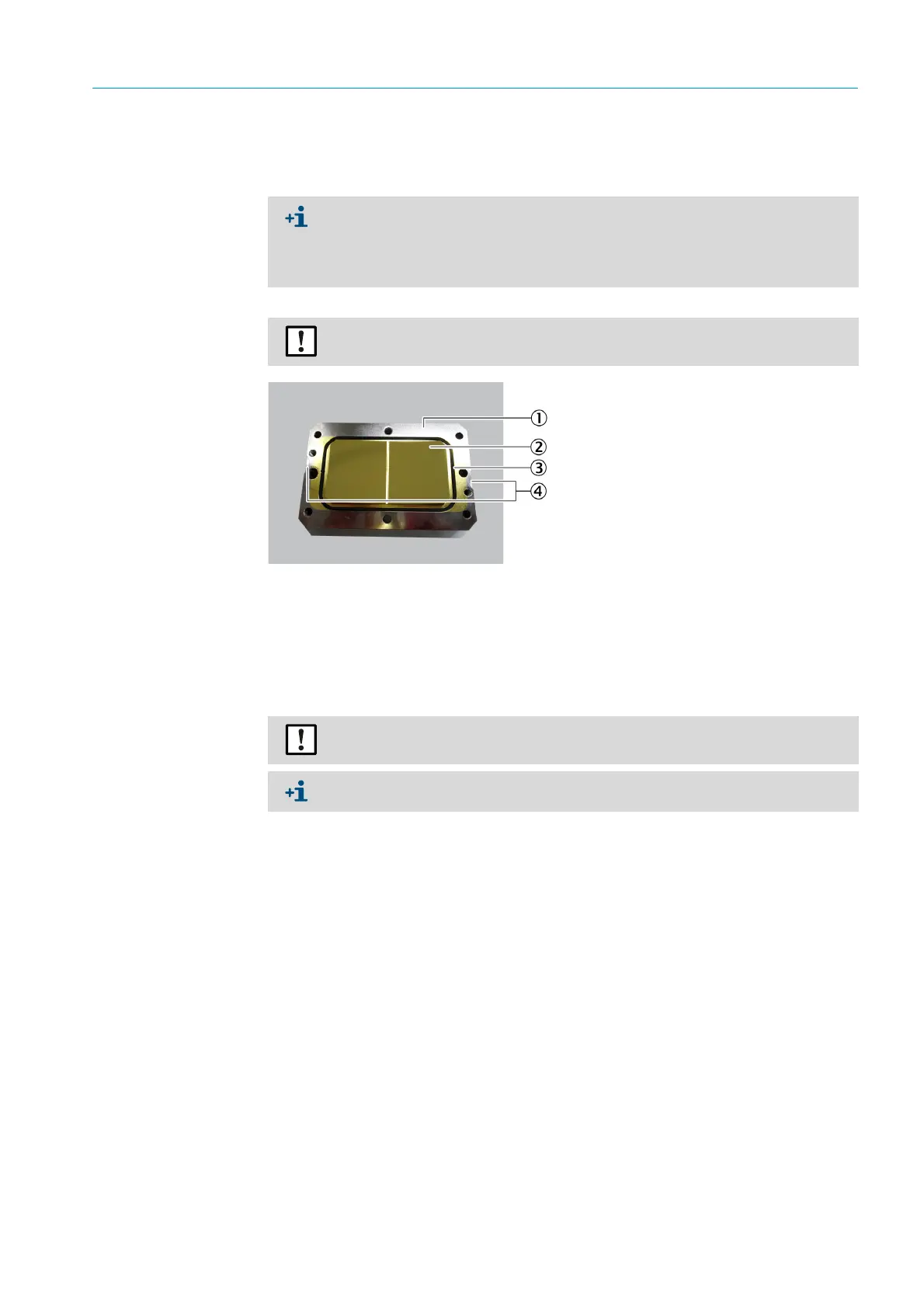

Fig. 103: Upper mirror plate
8 Fit the new upper mirror plate with new O-ring.
Alternative:
– Unscrew and remove all cell covers (see Chapter “Removing the complete cell”,
page 65).
– Apply the flat side of a screwdriver to the side recesses of the mirror plate.
– Lever out the mirror plate.
NOTE: Material damage
Do not touch the coated surfaces of the mirror plates.
1 Mirror plate
2Coated surface
3O-ring
4Recesses for levering out
NOTE: Material damage
Protect mirror plates from insulation particles. Do not touch the insulation material.
Observe alignment: Align the labeled side of the mirror plate to the front to the cell inlet
filter.
