SICK MCS200HW Service Manual

105
8024638/AE00/V1-0/2019-09| SICK S E R V I C E M A N U A L | MCS200HW
Subject to change without notice
REPAIRS 5

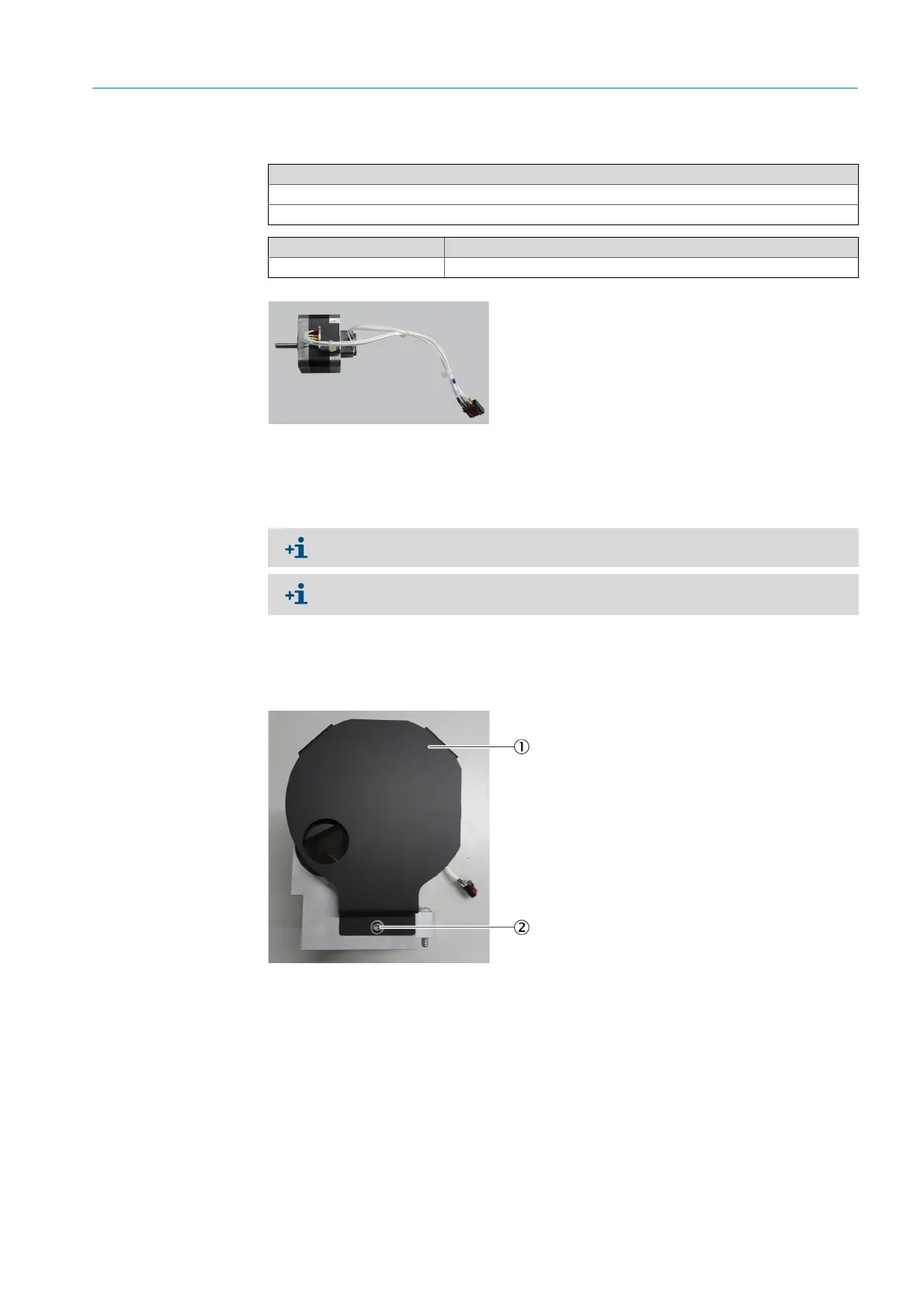

5.3.9 Replacing the chopper motor
Fig. 156: Chopper motor
1 Disconnect the MCS200HW power supply.
2 Open the sender/receiver unit (see Chapter “Opening the sender/receiver unit”,
page 44)
3 Remove the complete beamer unit (see Chapter “Replacing the complete beamer unit”,
page 102, steps 2 to 6).
4 Loosen the fastening screw of the chopper wheel cover on the upper side (2 mm Allen
key).
Fig. 157: Chopper wheel
5 Remove the chopper wheel cover.
6 Loosen the fastening screw of the chopper wheel cover on the lower side (2 mm Allen
key).
Tools required
2 mm Allen key
5 mm Allen key
Spare parts set No. Contents
2099792 Chopper motor kit
The drying agent must be replaced each time the sender/receiver unit is opened.
Pay attention to dust protection: Refit the sender/receiver unit cover during work on the
unit.
1 Chopper wheel cover
2Fastening screw
