5 REPAIRS
13 Loosen the bracket plate fastening screws with a Phillips screwdriver (1 piece).

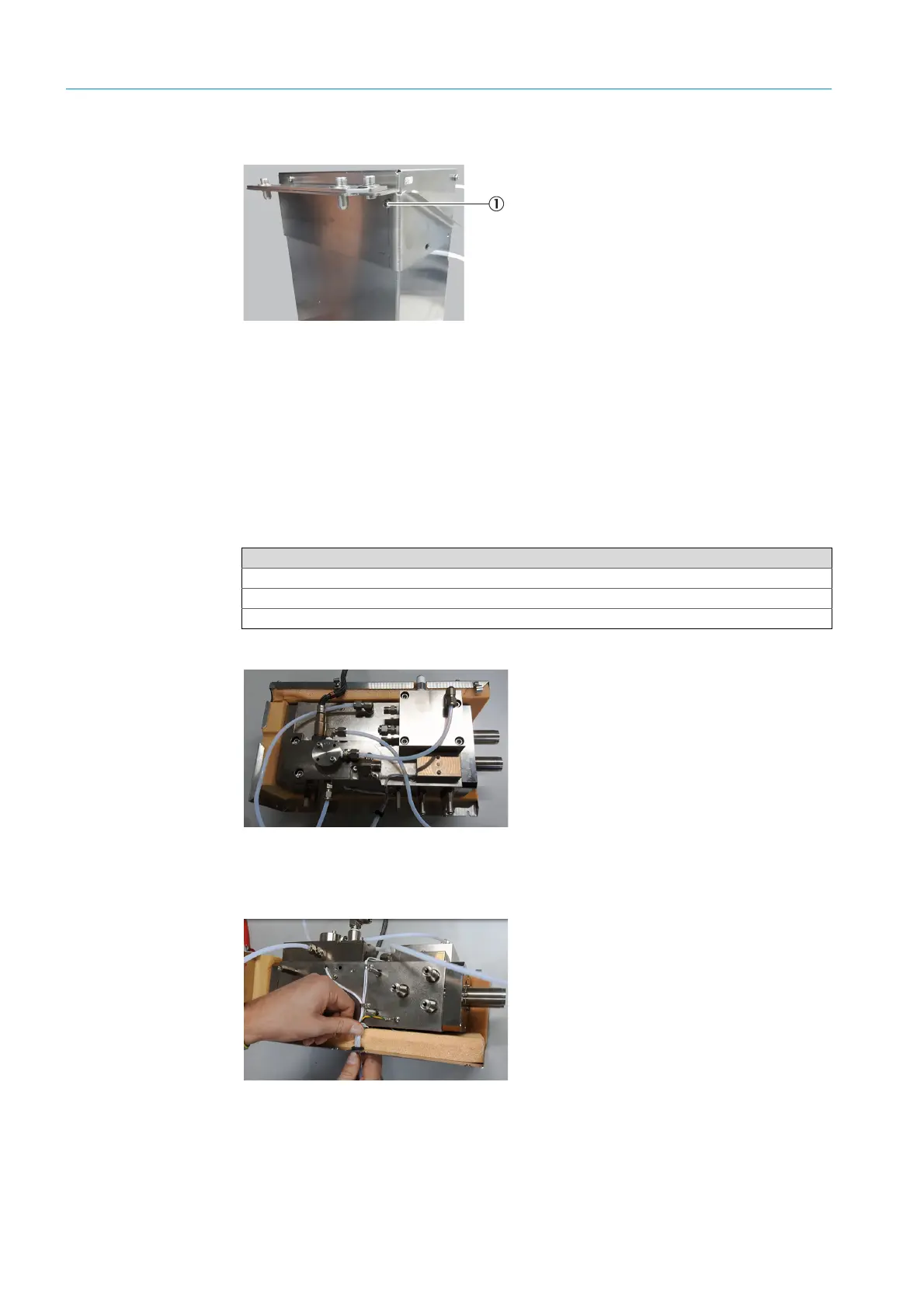

Fig. 88: Bracket plate
14 Remove the bracket plate.
15 Remove the lower cover plate and left cover.
>>> The side with recess for the cable of the heating spiral on the rear side is open.
>>> Upper cover plate and right cover remain together.
16 Lift out the inner part of the cell.
5.2.2 Fitting the complete cell
1 Replace the inner part of the cell in the upper cover plate and the right cover.
Fig. 89: Inserting the cell
2 Screw the right and left covers tight.
3 Insert the cable conduit into the recess. Observe the position of the sealing ring.
Fig. 90: Cell, left cover
1Fastening screw
Tools required
Phillips screwdriver
5 mm Allen key
Jaw wrench
