SICK MCS200HW Service Manual

69
8024638/AE00/V1-0/2019-09| SICK S E R V I C E M A N U A L | MCS200HW
Subject to change without notice
REPAIRS 5

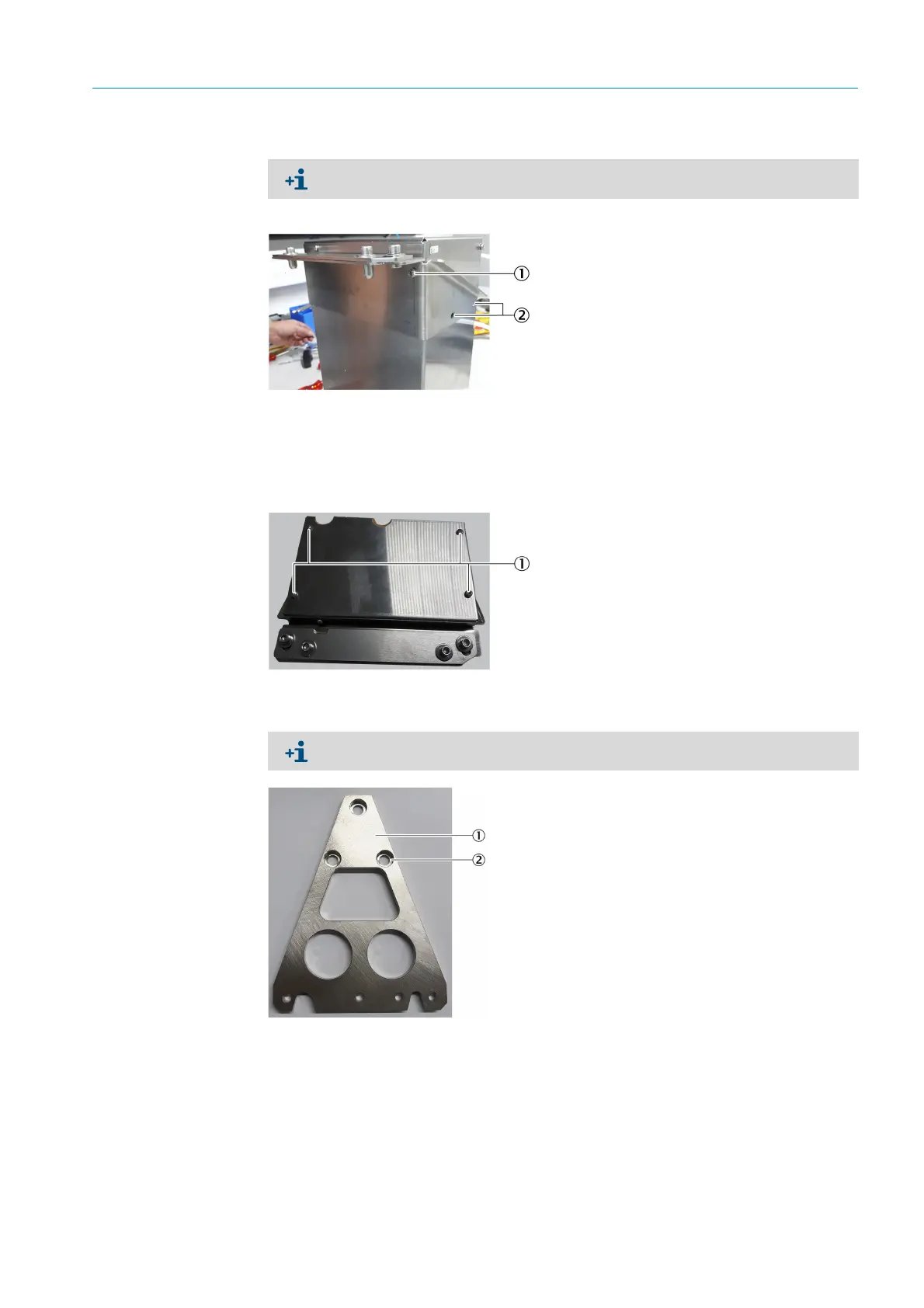

4 Screw the rear cover tight.
5 Screw the bracket plate tight on both sides and on the rear side.
Fig. 91: Screwing the bracket plate tight
6 Screw the upper cover plate tight.
Fig. 92: Cell, upper cover plate, fastening screws
7 Screw the A-holder tight on both sides.
Fig. 93: Cell, A-holder
The washers of the fastening screws are on the outside.
1 Fastening screw, rear side
2Fastening screw, left
The recesses of the A-holder must be on the outside.
1A-holder
2Recess
