SICK MCS200HW Service Manual

46
8024638/AE00/V1-0/2019-09| SICKSERVICE MANUAL | MCS200HW
Subject to change without notice

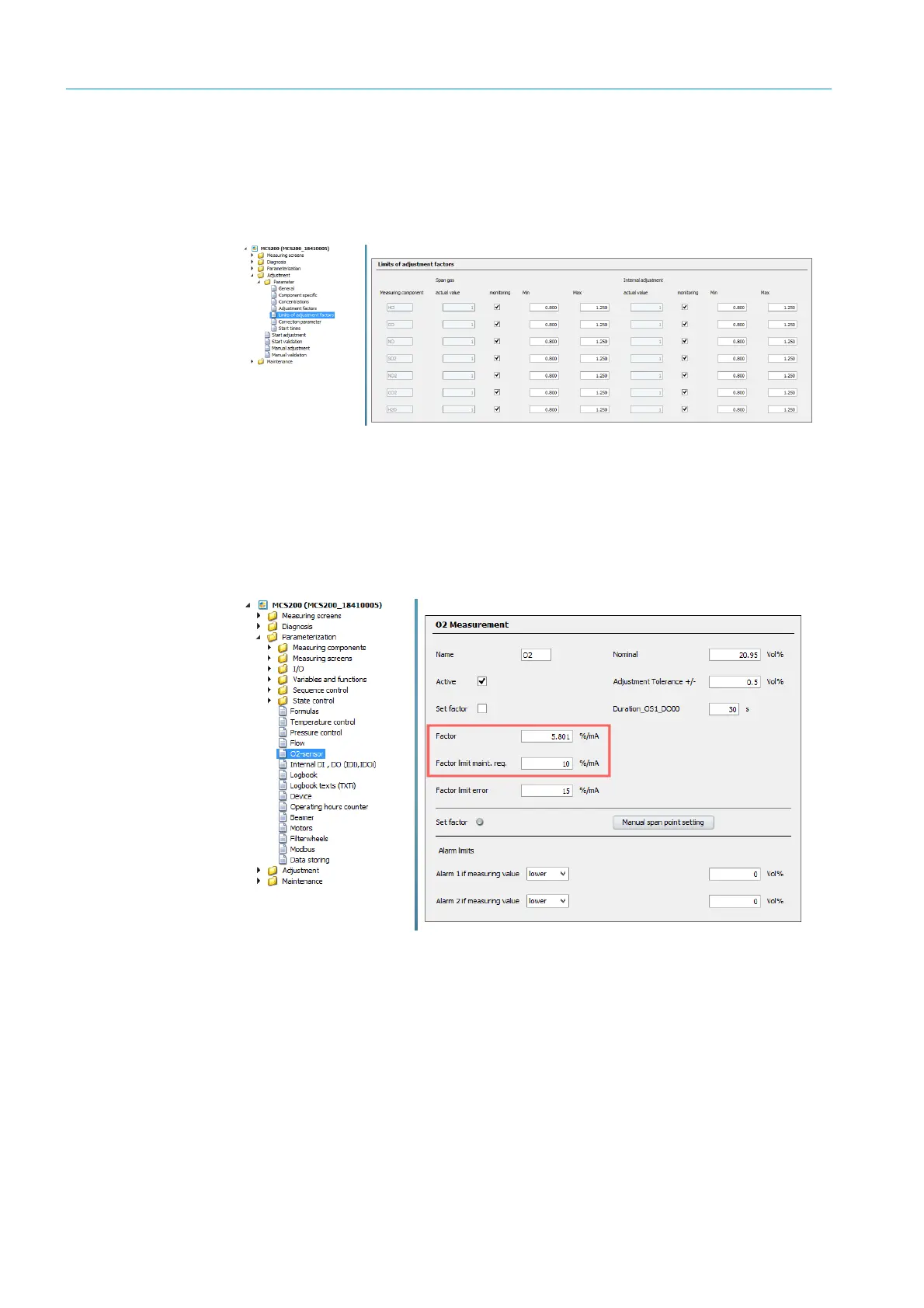

4 FUNCTIONAL TEST
4 Functional test
4.1 IR components, drift check
1 Select Adjustment -> Parameter -> Limits of adjustment factors.
2 Check adjustment factors. Adjustment factors must be within the specified warning
thresholds.
3 Readjust the adjustment factors when deviations are higher than 0.02 or when a
maintenance request appears.
4.2 Oxygen sensor drift check
1 Select Diagnosis -> State control -> O2-Sensor.
2 Check the adjustment factor. The adjustment factor must be more than 0.5 vol%/mA
below the specified warning threshold.
3 Readjust the adjustment factors when the adjustment factor is only 0.5 Vol%/mA under
the warning threshold or when a maintenance request appears.
