SICK MCS200HW Service Manual

43
8024638/AE00/V1-0/2019-09| SICK S E R V I C E M A N U A L | MCS200HW
Subject to change without notice
MAINTENANCE 3
3.5 Working on the sender/receiver unit
During all work on the sender/receiver unit:
1 Disconnect the MCS200HW power supply.
2 Let the MCS200HW cool down.

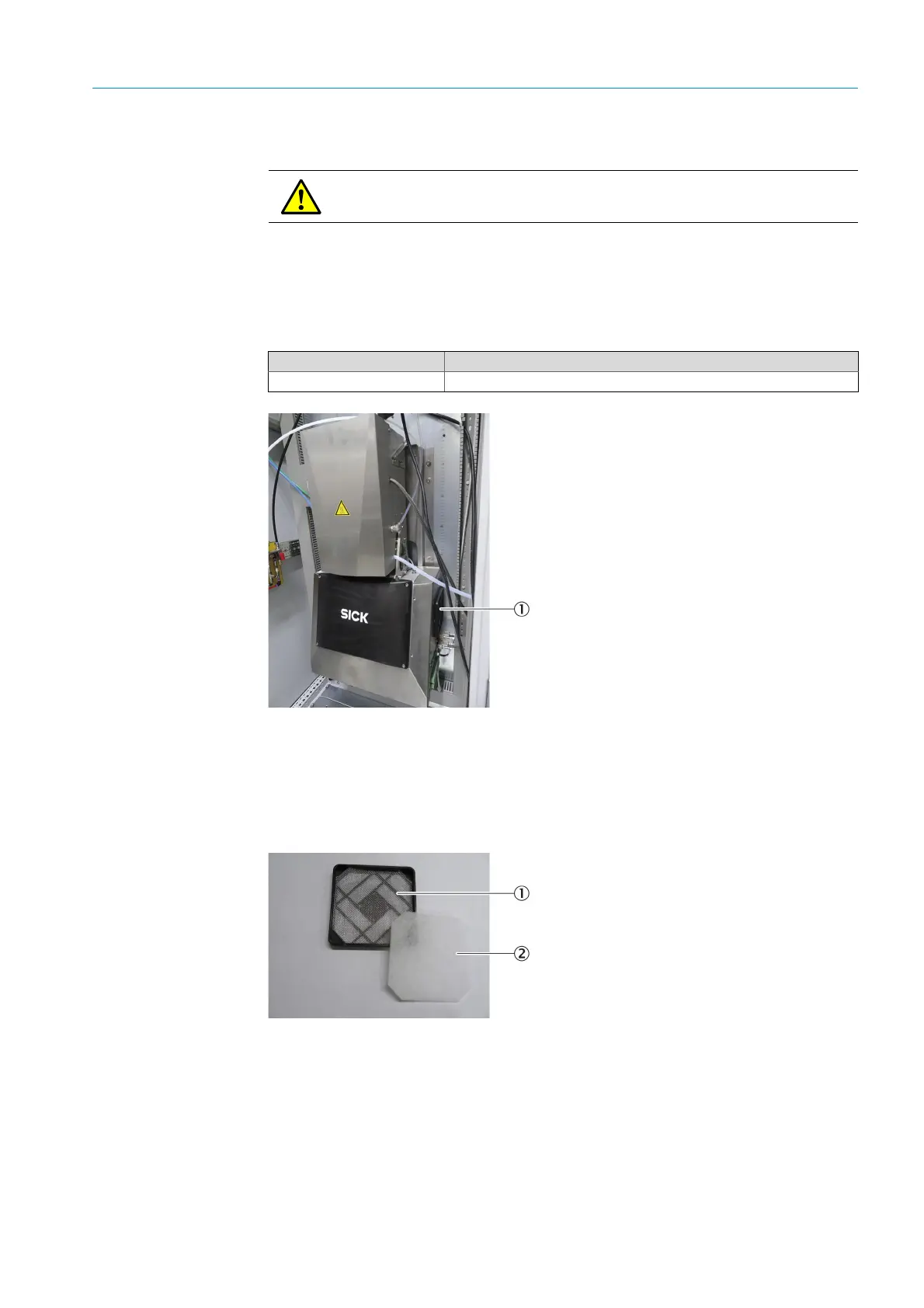

3.5.1 Replacing the filter mat on the ventilator
Fig. 55: Ventilator, sender/receiver unit
1 Open the ventilator cover on the outside.
▸ Remove the ventilator from the side.
2 Replace the filter mat.
Fig. 56: Ventilator cover and filter mat
3 Fit the outside ventilator cover.
DANGER: Risk of burns due to hot surface.
Allow the MCS200HW to cool down before carrying out any work.
Spare parts set No. Contents
5309683 Filter mat 118 x 118 mm
1 Ventilator cover
1 Ventilator cover, outside
2Filter mat
