116
8024638/AE00/V1-0/2019-09| SICKSERVICE MANUAL | MCS200HW
Subject to change without notice
5 REPAIRS
15 Insert the filter wheel housing into the sender/receiver unit and screw tight.
▸ The filter wheel housing cover points upwards.
16 Connect the lug connection of the filter wheel housing to the LPMS04 circuit board.
17 Replace the drying agent (see Chapter “Replacing the drying agent”, page 44).
18 Close the sender/receiver unit cover and screw tight.
5.3.11 Replacing the lens on filter wheel housing 1
1 Disconnect the MCS200HW power supply.
2 Open the sender/receiver unit (see Chapter “Opening the sender/receiver unit”,
page 44).
3 Disconnect the plug connection on filter wheel housing 1 on the LPMS04 circuit board
(
see Chapter “Replacing the filter wheel motor”, page 107).
4 Loosen the fastening screws of filter wheel housing 1 with a 5 mm Allen key (2 pieces).
5 Remove filter wheel housing 1.
6 Loosen the fastening screws of the lens with a 2.5 mm Allen key (2 pieces).

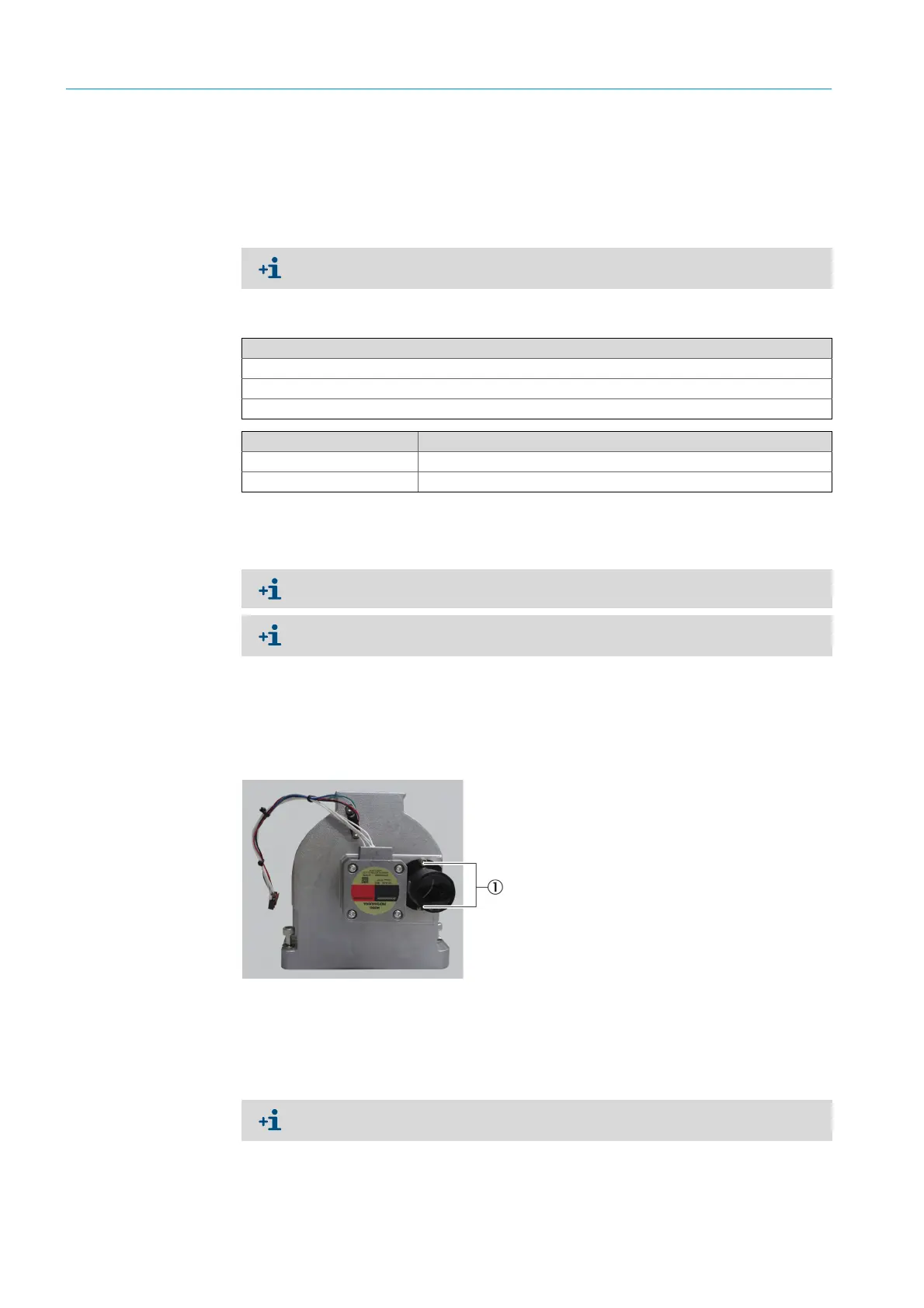

Fig. 178: Filter wheel 1, lens
7 Remove the lens.
8 Screw the new lens tight.
The spare parts set contains the connecting cable with fork light barrier. If necessary,
the connecting cable can also be replaced.
Tools required
2 mm Allen key
2.5 mm Allen key
5 mm Allen key
Spare parts set No. Contents
2100048 KCL lens with holder (glued)
2100049 BaF2 lens glued with holder
The drying agent must be replaced each time the sender/receiver unit is opened.
Pay attention to dust protection: Replace the electronics housing cover during work on
the sender/receiver unit.
1Fastening screw
Observe the sequence:
First put the spring washer, then the washer on the screw.
