REPAIRS 5
7 Remove the filter wheel:
1 Align the filter wheel in the housing so that the fastening screw can be accessed
through the opening.
2 Loosen the fastening screw with a 2 mm Allen key (loosen the screw only, do not
remove).
3 Remove filter wheel 3.

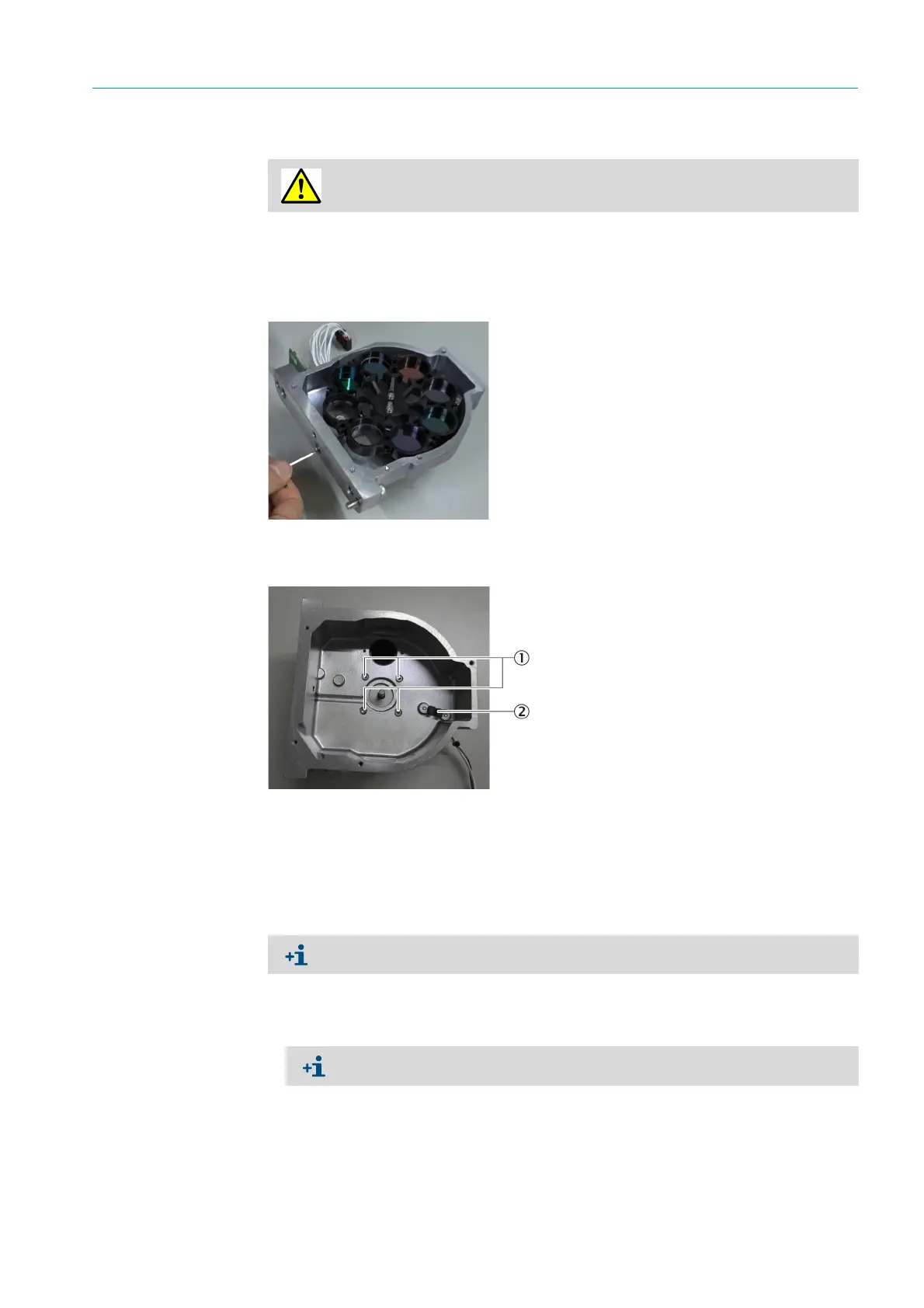

Fig. 176: Filter wheel 3, screw connection
8 Loosen the fastening screws of the motor with a 2 mm Allen key (4 pieces).
Fig. 177: Filter wheel motor, fastening screws
9 Disconnect the filter wheel motor cable (see Fig. 164 “Filter wheel housing 1, rear side”,
page 109).
10 Remove the filter wheel motor.
11 Screw the new filter wheel motor tight
▸ Observe the cable position when aligning the filter wheel motor.
12 Plug the cable into the filter wheel motor.
13 Insert the filter wheel into the filter wheel housing and screw tight:
1 Insert with the open side facing downwards.
2 Align the filter wheel so that the fastening screw can be accessed through the
opening in the housing.
14 Screw the cover tight onto the filter wheel housing.
NOTE: Material damage
Do not touch the optical surfaces of the filter wheels.
Only use screws without spring washers and washers.
The axle is chamfered.
