SICK MCS200HW Service Manual

12
8024638/AE00/V1-0/2019-09| SICKSERVICE MANUAL | MCS200HW
Subject to change without notice
3 MAINTENANCE
3.3 Working on the device cabinet

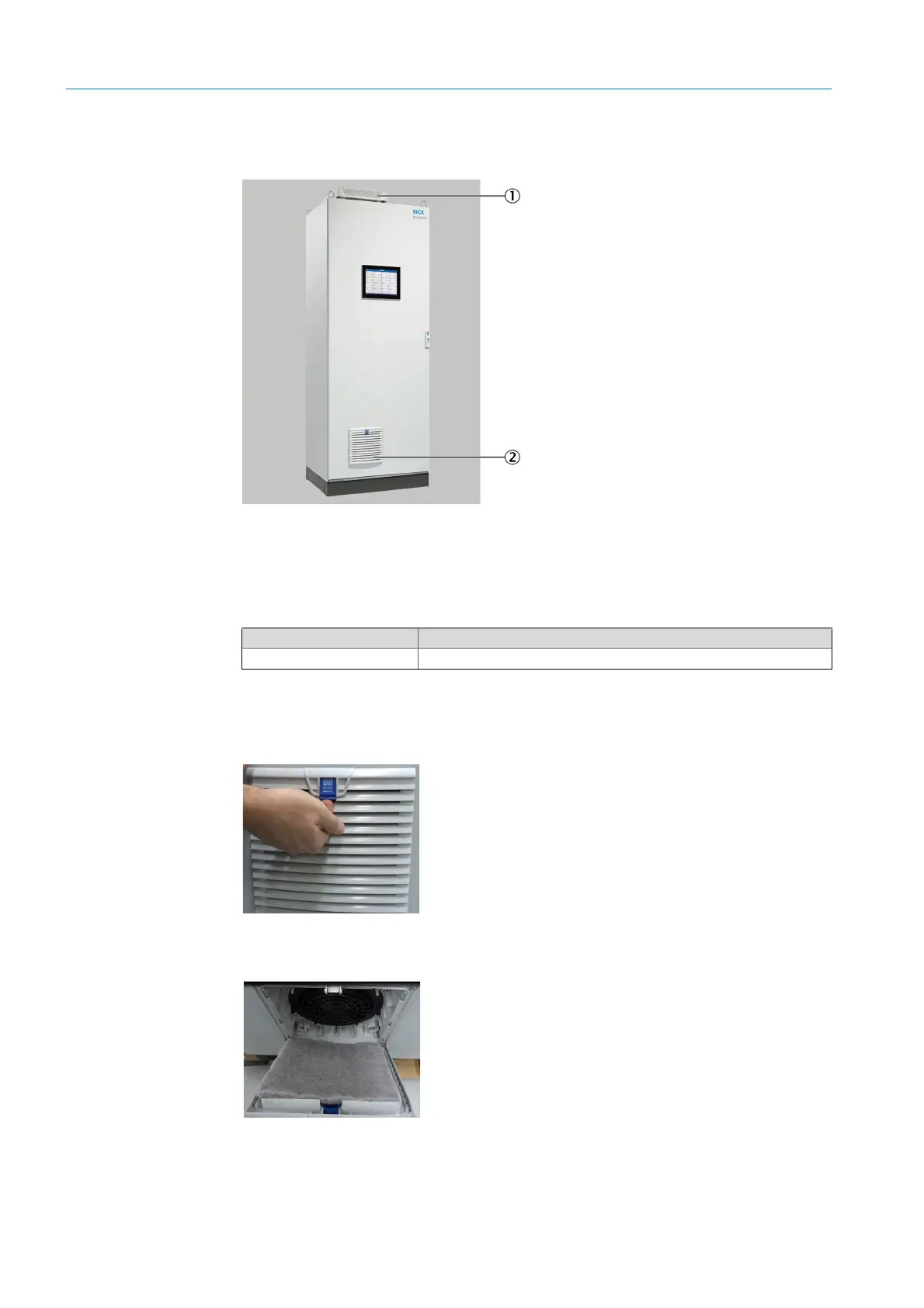

Fig. 1: Device cabinet
3.3.1 Exchanging filter pads
3.3.1.1 Door ventilator
Only replace filter mats on the device cabinet when the device is switched off.
1 Pull the blue lever to open the ventilator flap.
.
Fig. 2: Ventilator flap in cabinet door
2 Take old filter pad out.
.
Fig. 3: Ventilator flap in cabinet door open
1 Roof ventilator
2 Door ventilator
Spare parts set No. Contents
2099669 Filter mats for MCS200HW cabinet
