REPAIRS 5

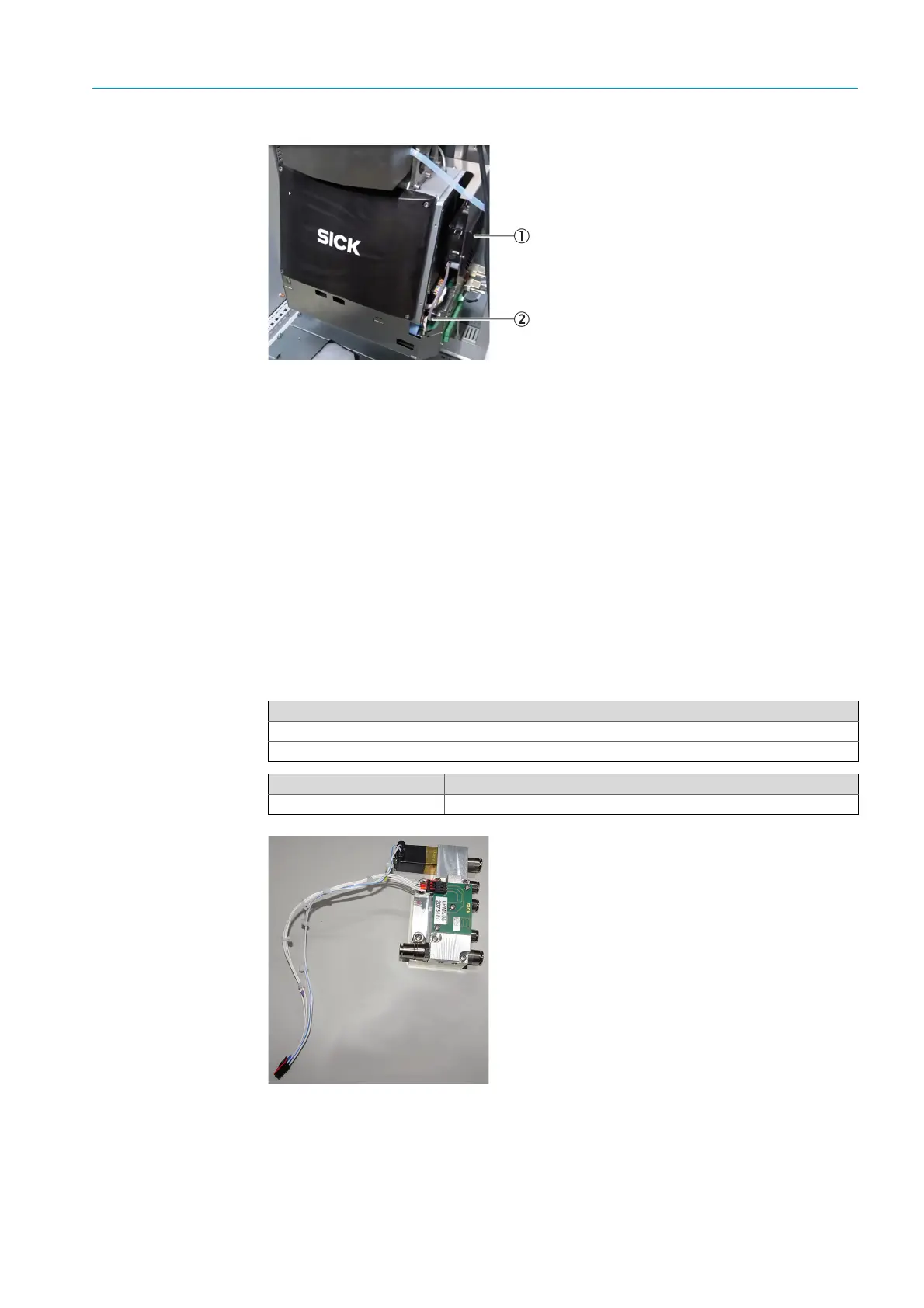

Fig. 145: Fan, power supply
4 Loosen the fan fastening screws with a Phillips screwdriver (4 pieces).
5 Remove the inner fan cover and fan.
6 Fasten the new fan:
1 Insert the new fan together with the new fan cover.
2 Tighten the fastening screws.
7 Replace the electronics housing cover and screw tight.
8 Fit a new filter mat on the outside.
9 Close the outside ventilator cover.
10 Connect the MCS200HW power supply.
5.3.6 Replacing the pressure control module
Fig. 146: Pressure control module
1 Disconnect the MCS200HW power supply.
2 Close off 4 bar instrument air.
1Fan
2 Power supply
Tools required
Phillips screwdriver
5 mm Allen key
Spare parts set No. Contents
2081835 Pressure control module
