8024638/AE00/V1-0/2019-09| SICKSERVICE MANUAL | MCS200HW
Subject to change without notice
3 MAINTENANCE
3.5.2 Opening the sender/receiver unit
1 Loosen the fastening screws of the cover with an Allen key (4 pieces).

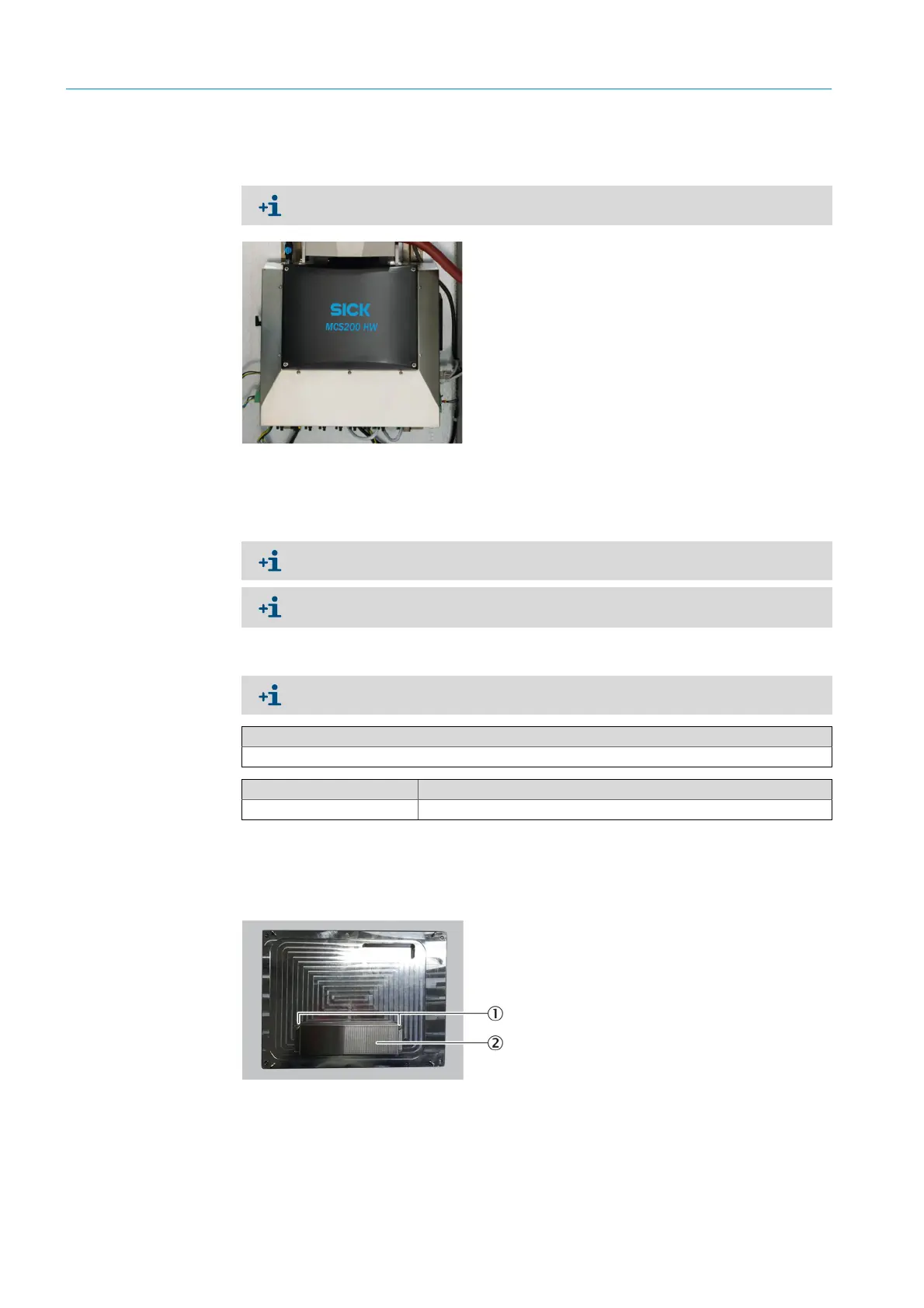

Fig. 57: Sender/receiver unit cover
2 Remove the sender/receiver unit cover.
3.5.3 Replacing the drying agent
1 Open the sender/receiver unit (see Chapter “Opening the sender/receiver unit”,
page 44).
2 Loosen the fastening screws of the drying agent container on the inside of the lid with a
Phillips screwdriver (2 pieces).
Fig. 58: Drying agent container
Do not remove the screws, only loosen them.
1Fastening screws
The drying agent must be replaced each time the sender/receiver unit is opened.
Pay attention to dust protection: Refit the sender/receiver unit cover during work on the
unit.
The drying agent must be replaced each time the sender/receiver unit is opened.
Tools required
Phillips screwdriver
Spare parts set No. Contents
5310504 Drying agent sachets 2 TME
1Screws
2 Drying agent container
