SICK MCS200HW Service Manual

90
8024638/AE00/V1-0/2019-09| SICKSERVICE MANUAL | MCS200HW
Subject to change without notice
5 REPAIRS

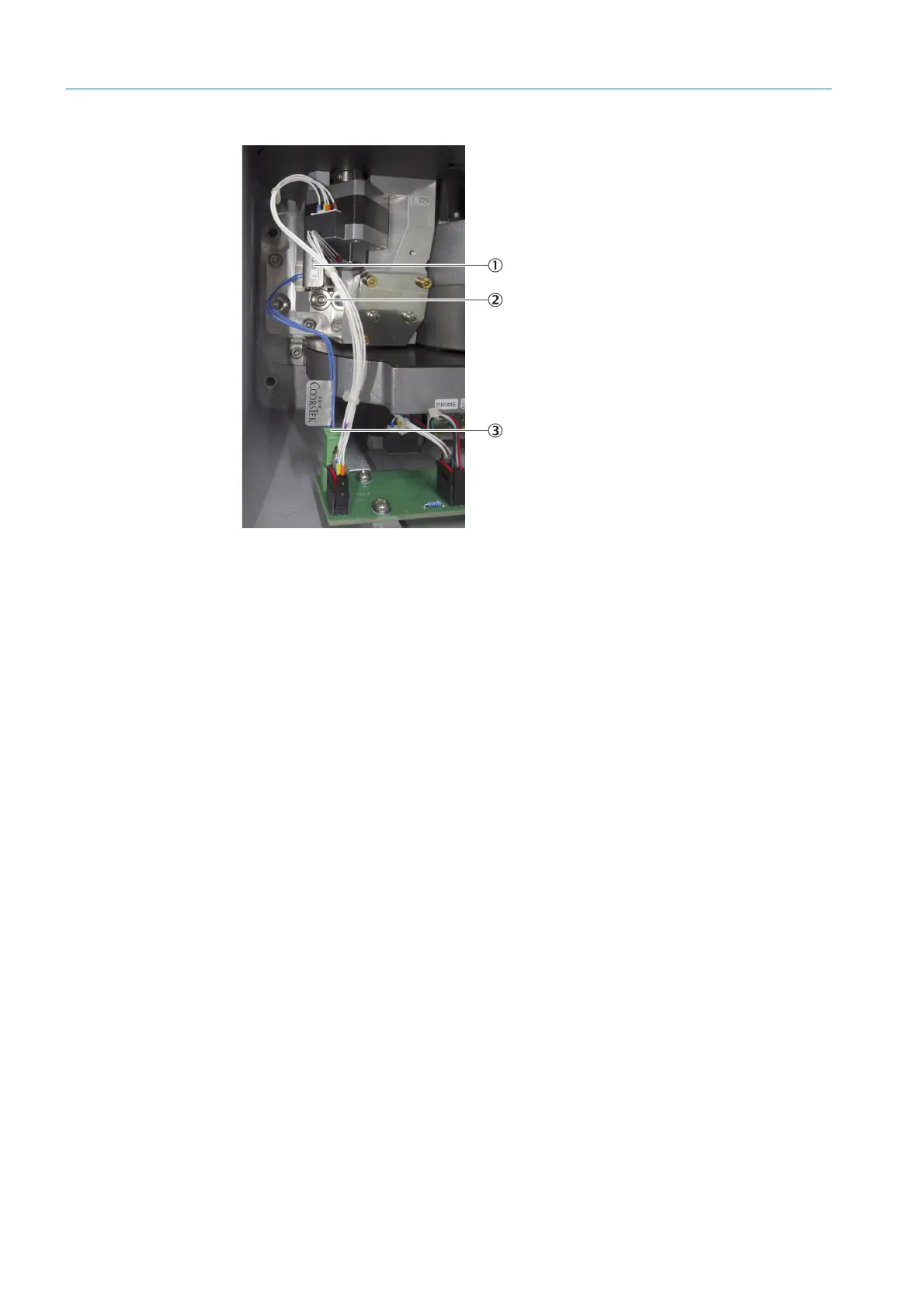

Fig. 130: Beamer, connections
3 Loosen the fastening screws with a 5 mm Allen key.
4 Push the beamer to the left and pull it out.
5 Connect the new beamer.
6 Screw the beamer tight.
7 Connect the MCS200HW power supply.
8 Replace the drying agent (see Chapter “Replacing the drying agent”, page 44).
9 Close the sender/receiver unit unit and screw tight.
10 Switch the MCS200HW on.
11 Check the beamer current (see Chapter “Beamer current check”, page 47).
12 Reset the beamer service life (see Chapter “Resetting the beamer service life”,
page 90).
13 Reset the reference energy (see Chapter “Resetting the reference energy”, page 91).
5.3.2.1 Resetting the beamer service life
1 Select Parameterization -> Operating hours counter.
2 Click Reset.
>>> Beamer service life is set to zero.
1Beamer
2Fastening screw
3 Power supply plug connection
