8024638/AE00/V1-0/2019-09| SICK S E R V I C E M A N U A L | MCS200HW
Subject to change without notice
REPAIRS 5
Electronics unit

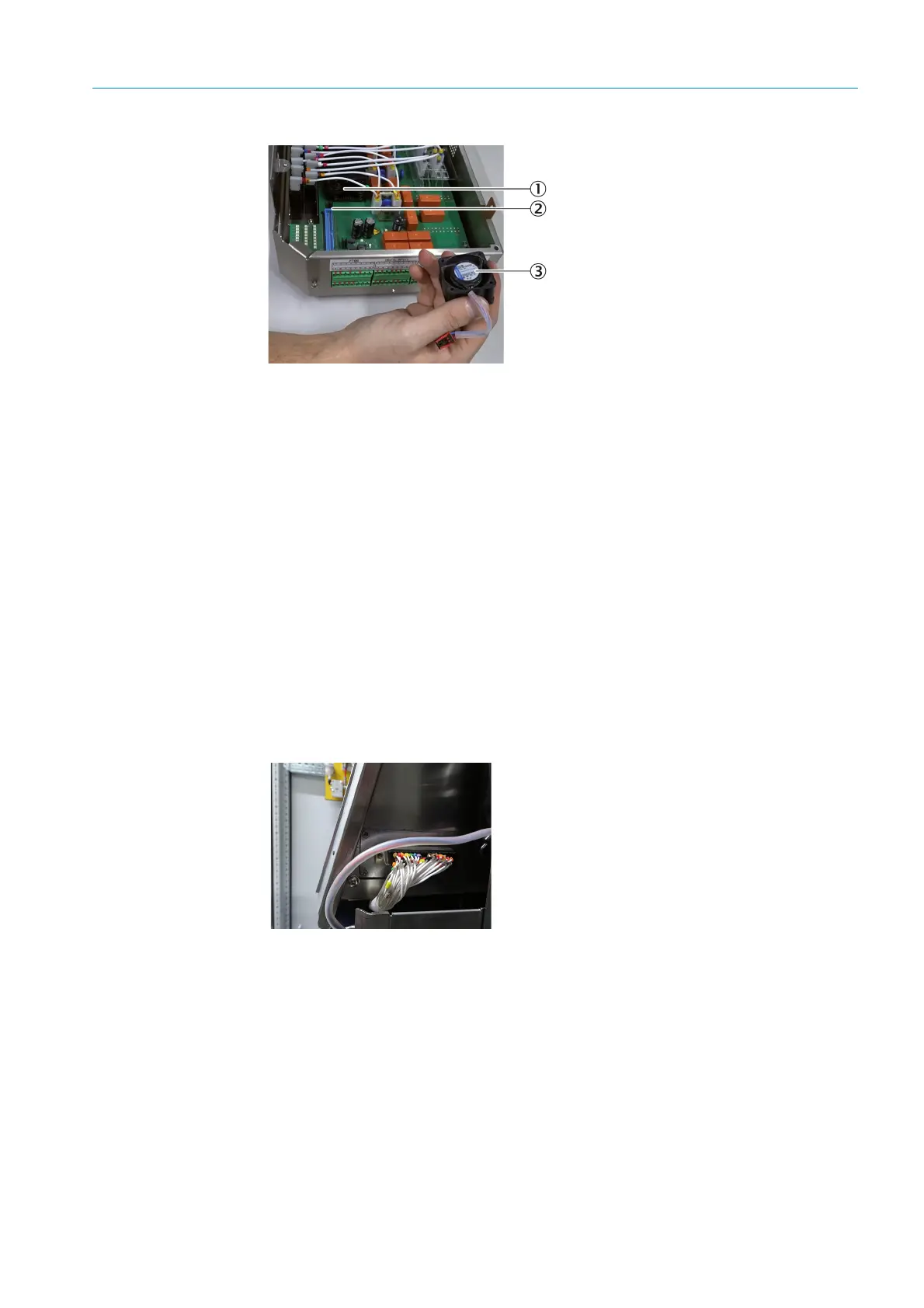

Fig. 241: Fitting the LPMS02 fan
9 Screw the fan tight.
10 Connect the fan cable.
11 Connect the plug connections.
12 Screw the upper and lower electronics unit together:
– Top fastening screws (2 pieces).
– Rear fastening screws (2 pieces).
13 Fit the electronics unit (see Chapter “Removing and fitting the electronics unit”,
page 129).
5.4.6 Replacing the LPMS01 to LPMS04 connection cable
1 Remove the electronics housing cover and fan cover (see Chapter “Removing the elec-
tronics housing cover”, page 88).
2 Disconnect the connection cable to the LPMS04.
Fig. 242: LPMS04 connection cable
3 Remove the electronics unit (see Chapter “Removing and fitting the electronics unit”,
page 129).
4 Replace the connection cable.
5 Fit the electronics unit (see Chapter “Removing and fitting the electronics unit”,
page 129).
6 Connect the connection cable to LPMS04.
7 Replace the electronics housing cover and screw tight.
8 Connect the power supply.
1Heat sink
2Plug
3Fan
