SICK MCS200HW Service Manual

62
8024638/AE00/V1-0/2019-09| SICKSERVICE MANUAL | MCS200HW
Subject to change without notice
5 REPAIRS
8 Disconnect the connecting cable of the power supply plug on the digital output.
9 Screw the new valve with sealing rings tight again.
10 Fasten the new excitation coil.
11 Attach the new connecting cable of the power supply plug to the digital output and to the
excitation coil. Tighten the locking screw.
12 Open the valves of the test gas cylinders.
13 Connect the MCS200HW power supply.
5.1.7 Replacing the display
1 Disconnect the MCS200HW power supply.
2 Disconnect the cable connections.

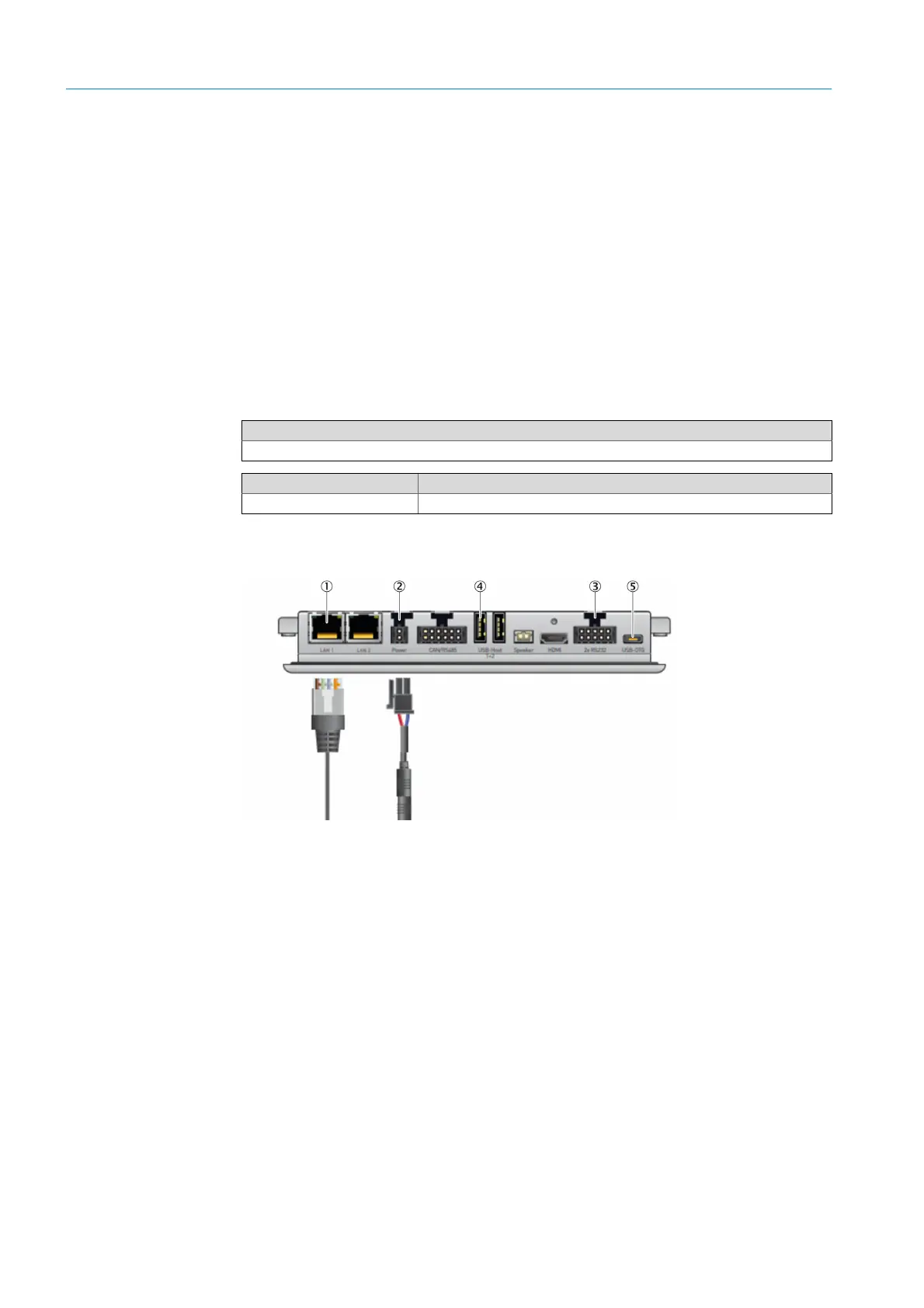

Fig. 77: Display, cable connections
3 Loosen the screws of the display fastening clips with a Phillips screwdriver (10 pieces).
1 Sealing ring 1
2 Sealing ring 2
Tools required
Phillips screwdriver
Spare parts set No. Contents
2109180 Web display
1 Ethernet connection
2 Power supply
