SICK MCS200HW Service Manual

73
8024638/AE00/V1-0/2019-09| SICK S E R V I C E M A N U A L | MCS200HW
Subject to change without notice
REPAIRS 5
5.2.4 Replacing mirror plates
The mirror plates can only be serviced with the cell removed.
The complete cell must be removed to replace the upper and lower mirror plates.
5.2.4.1 Replacing the upper mirror plate
1 Remove the cell (see Chapter “Removing the complete cell”, page 15).
2 Loosen the fastening screws of the upper cover plate with a Phillips screwdriver
(4
pieces).

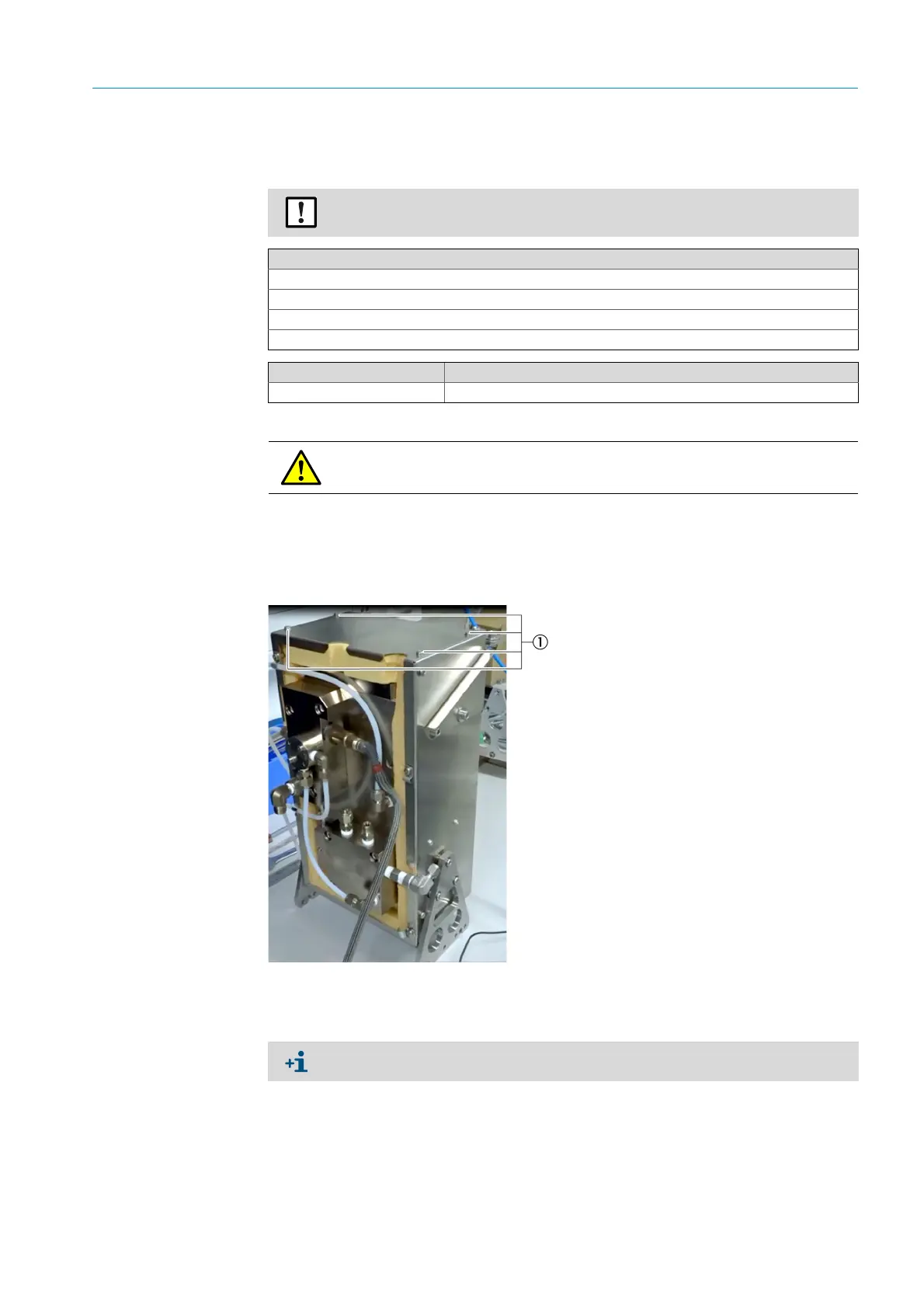

Fig. 99: Cell, fastening screws, cover plate 1
NOTE: Material damage
Do not touch the coated surfaces of the mirror plates.
Tools required
5 mm Allen key
Phillips screwdriver
Slot screwdriver
Scalpel
Spare parts set No. Contents
2045740 Maintenance kit, windows and seals
DANGER: Risk of burns due to hot surface.
Allow the MCS200HW to cool down before carrying out any work.
1 Fastening screws of upper cover plate
Keep screws, spring washers and washers for reassembly.
