114

8024638/AE00/V1-0/2019-09| SICKSERVICE MANUAL | MCS200HW

Subject to change without notice

5 REPAIRS

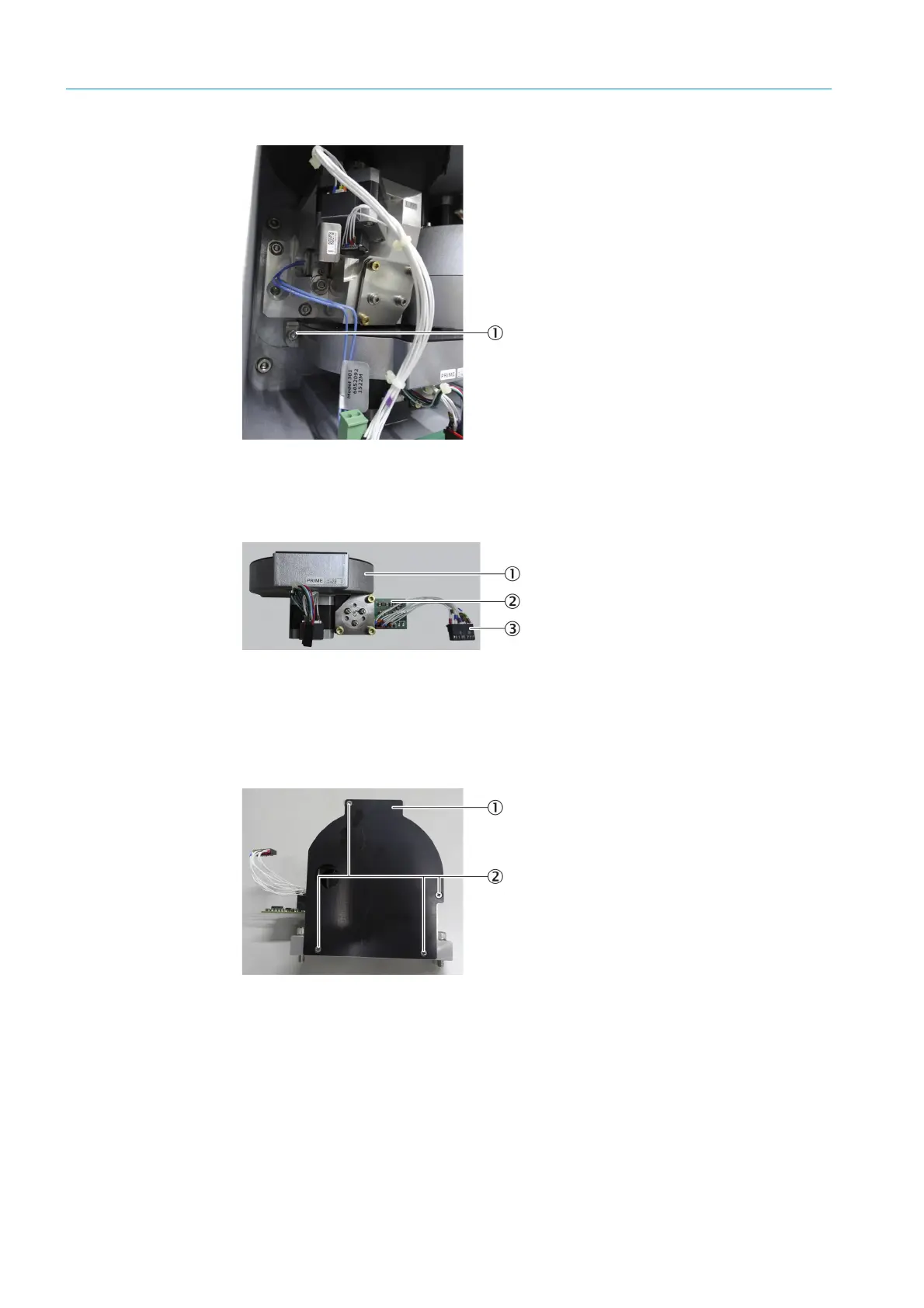

Fig. 173: Filter wheel housing 3, fastening screw, left

4 Remove the filter wheel housing.

Fig. 174: Filter wheel housing 3

5 Loosen the fastening screws of the cover with a Phillips screwdriver (4 pieces).

Fig. 175: Filter wheel housing 3, cover

6 Remove the cover.

1Fastening screw, left

1 Filter wheel housing 3

2 LPMS03 detector circuit board

3 Detector circuit board, connection cable

1Cover

2Fastening screw
