REPAIRS 5
10 Loosen the fastening screws of the upper cover plate with a Phillips screwdriver
(4
pieces).

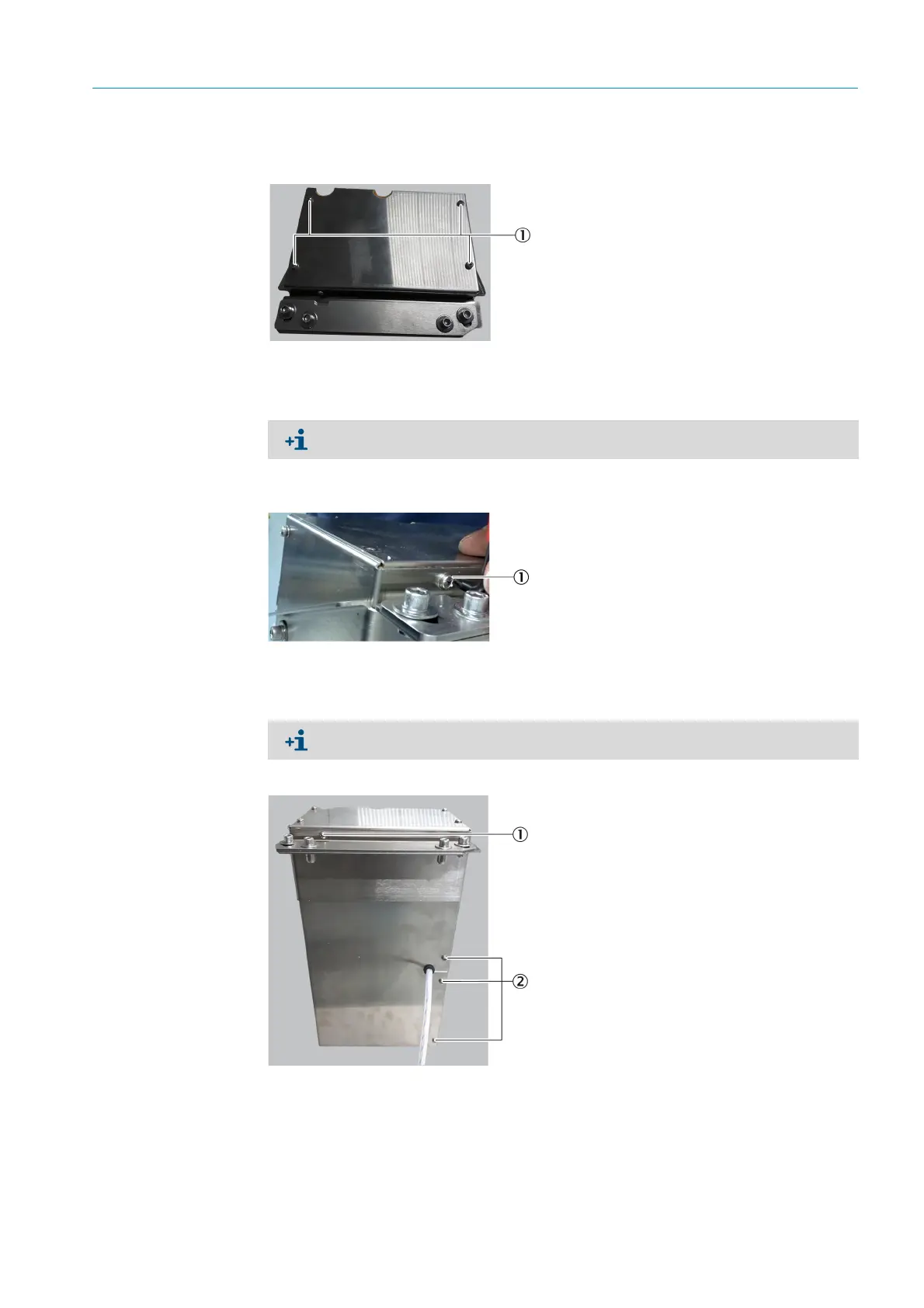

Fig. 85: Cell, upper cover plate, fastening screws 1
11 Loosen the fastening screw on the rear of the upper cover plate with a Phillips screw-
driver (1 piece).
Fig. 86: Cell, upper cover plate, fastening screws 2
12 Loosen the remaining fastening screws of the rear cover (3 pieces).
Fig. 87: Cell, rear cover, fastening screws
1 Fastening screws of upper cover plate
Keep screws, spring washers and washers for reassembly.
1 Fastening screw, upper cover plate (rear side)
Keep screws, spring washers and washers for reassembly.
1Fastening screw
