66
8024638/AE00/V1-0/2019-09| SICKSERVICE MANUAL | MCS200HW
Subject to change without notice
5 REPAIRS
5 Place the removed cell down with the underside facing upwards.

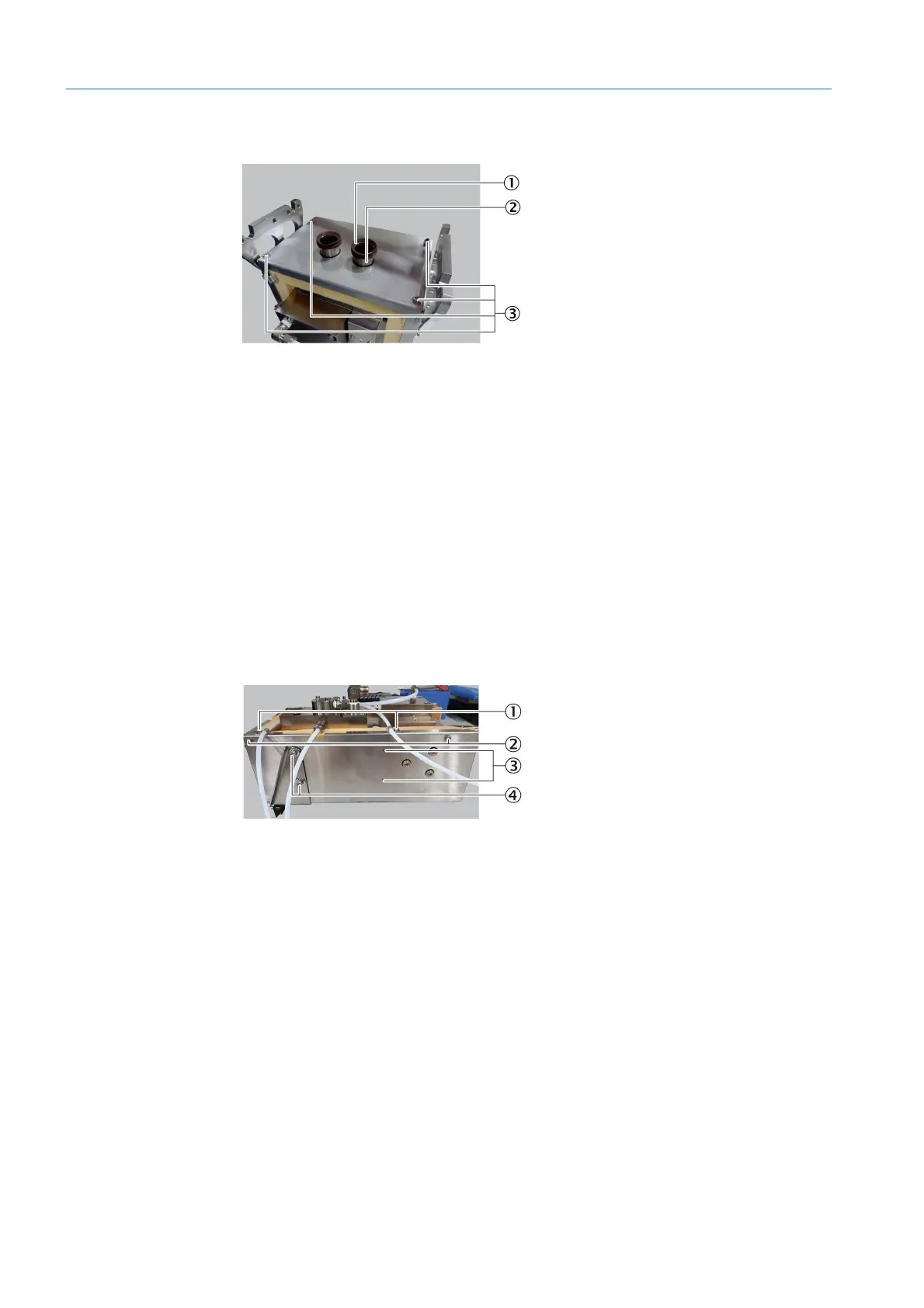

Fig. 83: Cell, underside
6 Loosen the fastening screws of the lower cover plate with a Phillips screwdriver
(4
pieces).
7 Remove the sealing rings from the tubes.
8 Remove the lower cell cover plate.
9 Remove the side covers of the cell on the left and right.
Perform the following steps on both sides (see Fig. 84 “Cell. side cover”, page 66):
▸ Loosen fastening clips (1) with a Phillips screwdriver (2 pieces).
▸ Fastening screws (2) of the cell cover (2 pieces) have already been loosened (do not
unscrew).
▸ Loosen fixing screws (3) of the side cover with a Phillips screwdriver (2 pieces).
▸ Loosen fastening screws (4) of the bracket plate with a 5 mm Allen key (2 pieces).
Fig. 84: Cell. side cover
1 Sealing ring
2Tube
3Fastening screw
1Fastening clips, screws
2 Cell cover, fastening screws
3 Side cover, fastening screws
4Bracket plate, fastening screws
