133
8024638/AE00/V1-0/2019-09| SICK S E R V I C E M A N U A L | MCS200HW
Subject to change without notice
REPAIRS 5

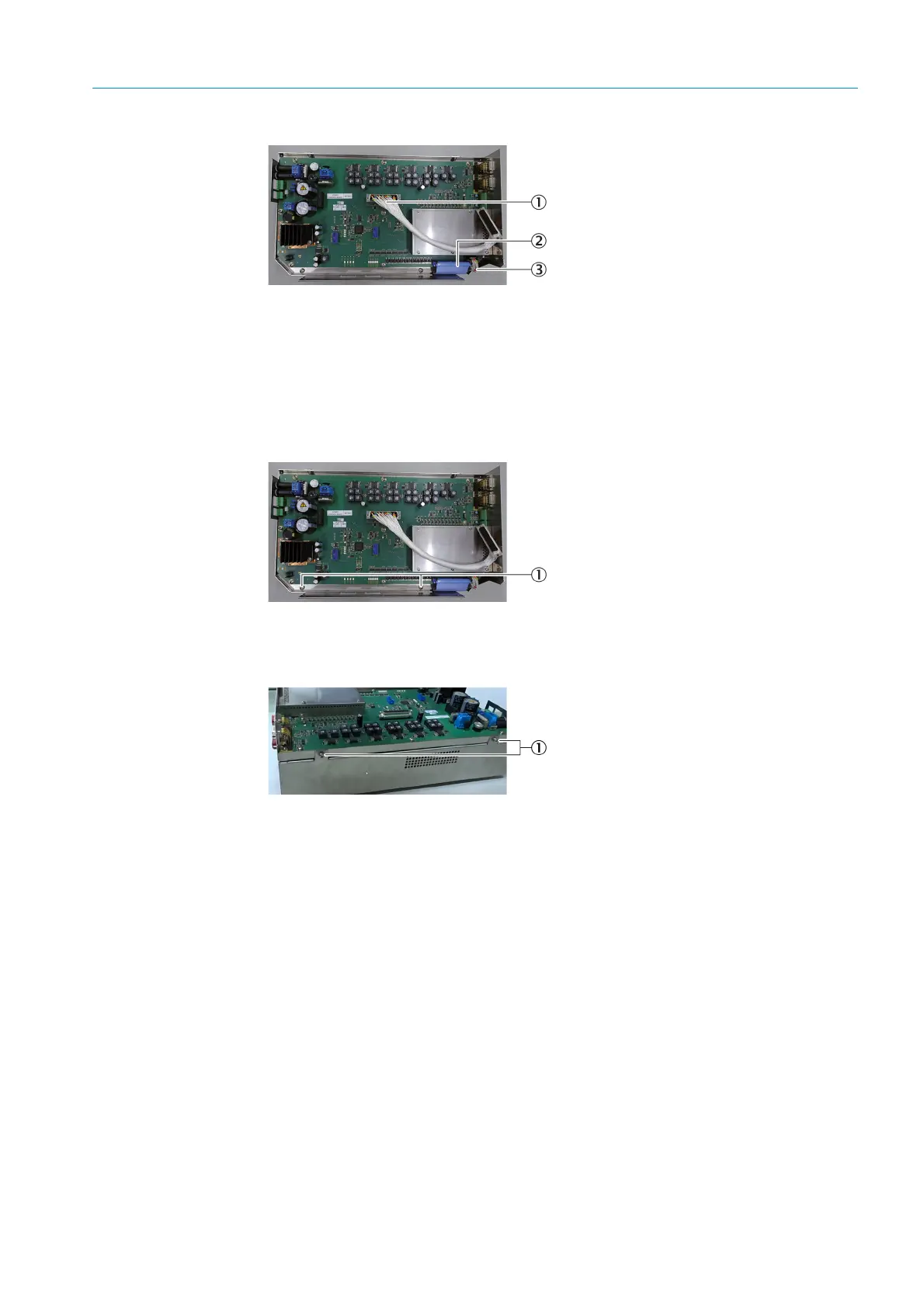

Fig. 212: LPMS01 cable connections
3 Loosen the upper electronics unit with a Phillips screwdriver:
▸ Loosen the fastening screws at the top (2 pieces).
▸ Loosen the fastening screws at the rear (2 pieces).
Fig. 213: Upper electronics unit, fastening screws, top
Fig. 214: Upper electronics unit, fastening screws, rear
4 Disconnect the ribbon cable and white connection cable at both ends:
▸ To do this, slightly lift the upper drawer and shift it backwards.
1LPMS04 connection cable
2 Ribbon cable
3 White connection cable
1Fastening screws
1Fastening screws
