134
8024638/AE00/V1-0/2019-09| SICKSERVICE MANUAL | MCS200HW
Subject to change without notice
5 REPAIRS

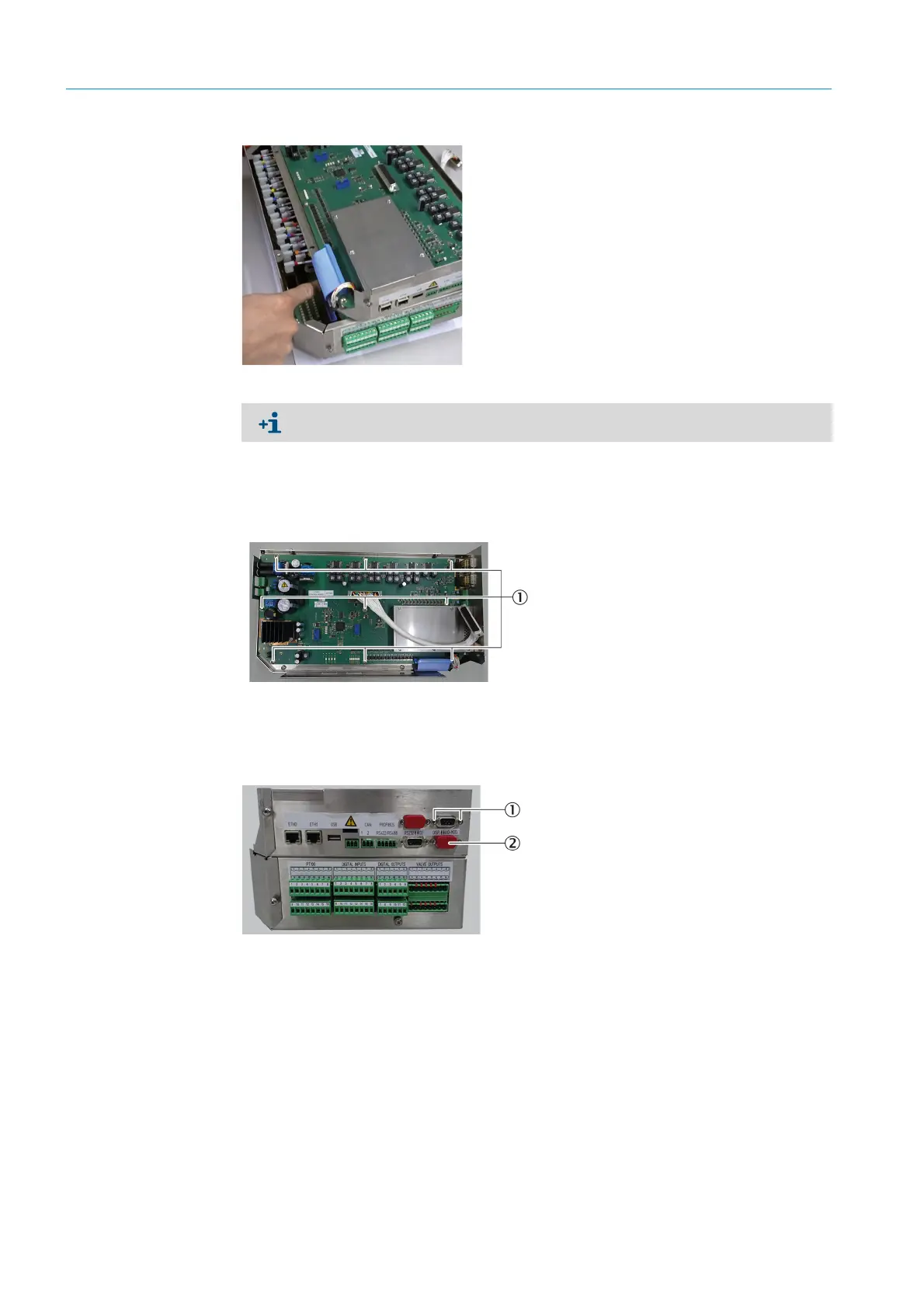

Fig. 215: Disconnect the upper electronics unit cable.
5 Remove the LPMS01 with complete upper electronics unit.
6 Remove the CPU (see Chapter “Replacing the LINUX CPU”, page 135)
7 Optional steps when the LPMS01 is not replaced with the complete top drawer:
1 Loosen the fastening screws of the LPMS01 with a Phillips screwdriver (9 pieces).
Fig. 216: LPMS01, fastening screws
2 Loosen the right studs with a 5 mm socket wrench (8 pieces).
Fig. 217: Electronics unit, right side
3 Remove the red cover caps.
4 Remove the LPMS01 from the upper electronics unit.
5 Fit the new LPMS01 into the upper electronics unit.
6 Screw the LPMS01 tight in the upper electronics unit.
7 Carefully tighten the studs on the right.
8 Put on the red cover caps.
Keep the CPU for reassembly.
1Fastening screws
1Studs
2Cover cap
