SICK MCS200HW Service Manual

141
8024638/AE00/V1-0/2019-09| SICK S E R V I C E M A N U A L | MCS200HW
Subject to change without notice
REPAIRS 5
7 Loosen the fastening screws of the circuit board:
▸ Loosen the studs with a 7 mm socket wrench (see Fig. 230 “LPMS02 overview 2”,
page 140).
▸ Loosen the fastening screws with a Phillips screwdriver (4 pieces) (see Fig. 229
“LPMS02 overview 1”, page 140).

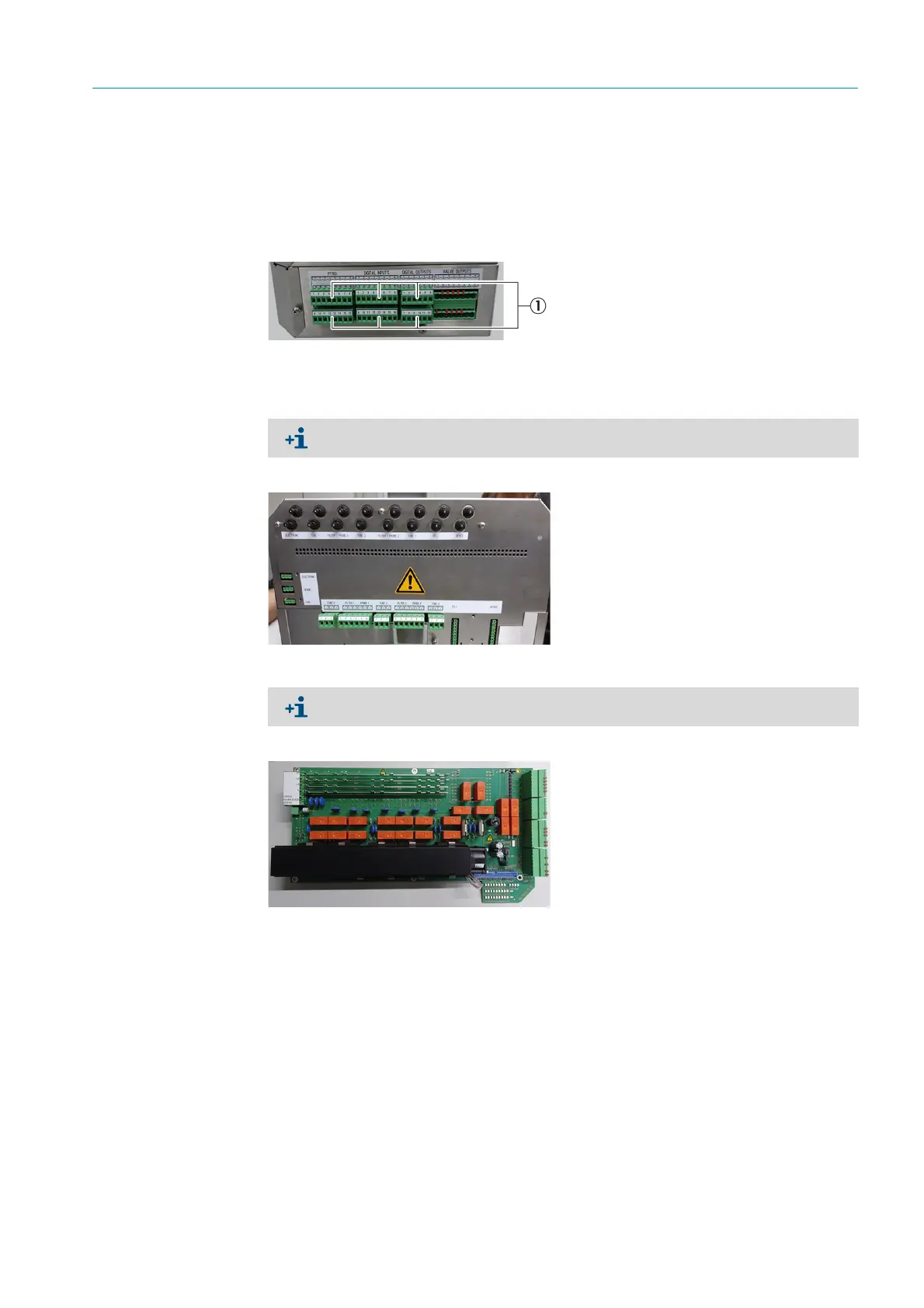

8 Remove the green plugs from the right side of the electronics unit (6 pieces).
Fig. 231: Lower electronics unit, plugs, right
9 Remove the green plugs from the underside of the electronics unit (5 pieces).
Fig. 232: Lower electronics unit, plugs, bottom
10 Remove the LPMS02 carefully.
Fig. 233: LPMS02 removed
11 Fit the new LPMS02:
▸ Carefully insert the circuit board tilted slightly upwards into the recess.
1Plugs
The plugs are coded and can only be reconnected to the correct socket.
The plugs are coded and can only be reconnected to the correct socket.
