SICK MCS200HW Service Manual

112
8024638/AE00/V1-0/2019-09| SICKSERVICE MANUAL | MCS200HW
Subject to change without notice
5 REPAIRS

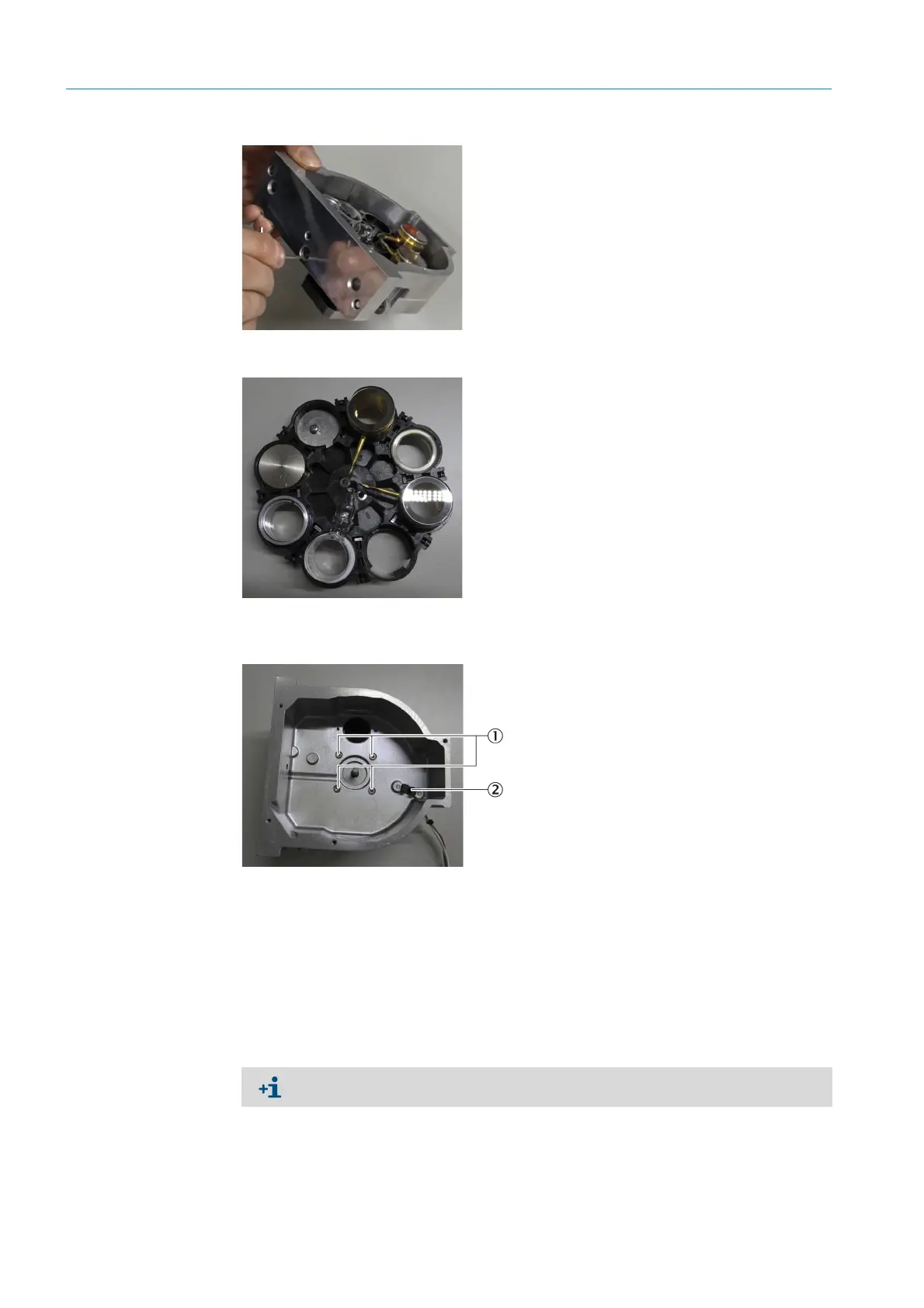

Fig. 169: Filter wheel 2, screw connection
Fig. 170: Filter wheel 2
6 Loosen the fastening screws of the motor with a 2.5 mm Allen key (4 pieces).
Fig. 171: Filter wheel motor, fastening screws
7 Disconnect the filter wheel motor cable (see Fig. 164 “Filter wheel housing 1, rear side”,
page 109).
8 Remove the filter wheel motor.
9 Screw the new filter wheel motor tight.
▸ Observe the cable position when aligning the filter wheel motor.
10 Plug the cable into the filter wheel motor.
1Fastening screw
2 Photoelectric switch
Only use screws without spring washers and washers.
